Operation Manual / TPL65VA32/33
Installing cartridge group
Page 94
© Copyright 2015 ABB. All rights reserved.
September 2015 HZTL2464_EN Revision C
Installing cartridge group
8.9
An orifice plate for adjusting the oil pressure is fitted in each of the two
oil inlet channels in the bearing casing. When the cartridge group, the
bearing casing or the turbocharger is fitted to the engine, it must be
ensured that the orifice plates that are specified for the turbocharger
have been installed in the two oil inlet channels.
Check correct installation of oil orifice plates.
Remove the cover from the oil connection.

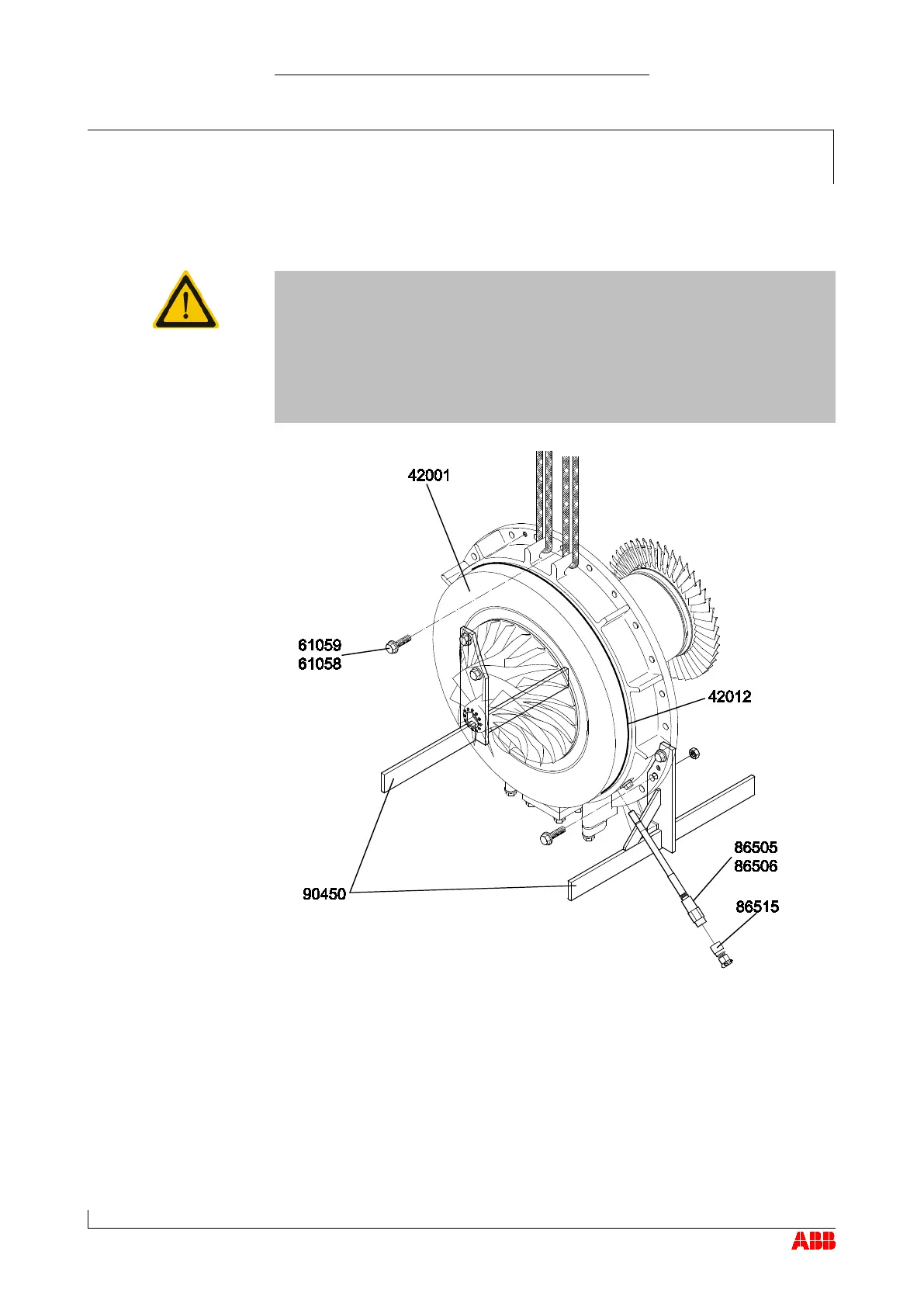

Fasten separate lifting gear to each of the two ribs on the bearing
casing provided for this purpose.
Remove the supports (90450) and carefully insert the cartridge group.
Uniformly tighten the screws (61059) together with the Verbus Ripp®
washers (61058).
