ABB TPL65VA33 - Removing and Fitting Filter Silencer or Air Suction Branch

Operation Manual / TPL65VA32/33
Disassembly and assembly
8
Removing and fitting filter silencer or air
suction branch
8.3
Page 83
© Copyright 2015 ABB. All rights reserved.
September 2015 HZTL2464_EN Revision C
Removing and fitting filter silencer or air
suction branch
8.3

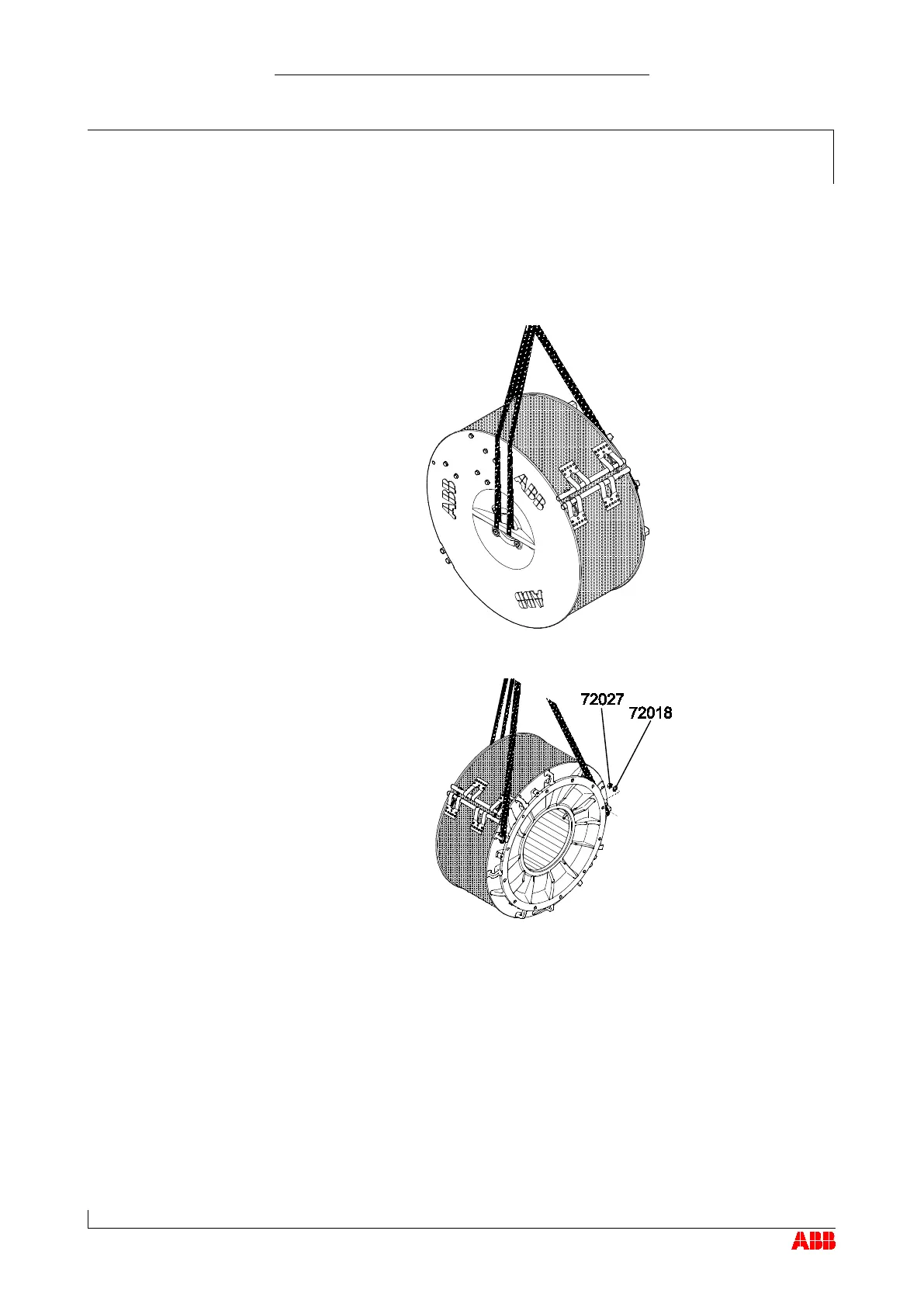

 Remove insulation where necessary.

Pass lifting gear through rib on filter silencer.

Pass lifting gear through lugs on back.
 Unscrew nuts (72027) and remove them together with washers
(72018).
 Remove filter silencer and set it down to one side.
 Install filter silencer in reverse order.
8.3
Removing the filter
silencer
Installing the filter silencer
