Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 100
April 2015 HZTL2410_EN Revision D


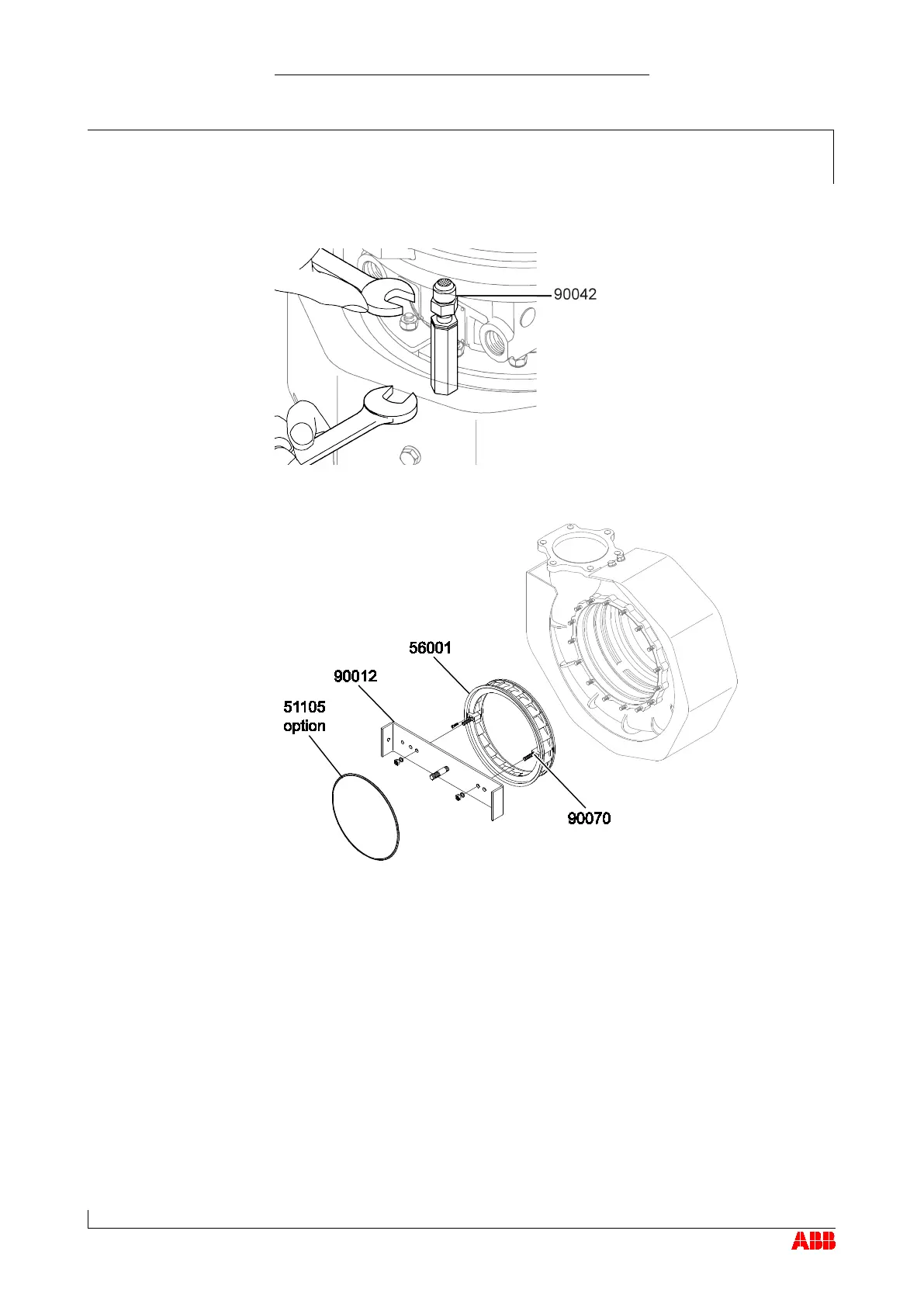

Withdraw nozzle ring (56001) using two extraction devices (90070)
and withdraw bottom part of service support (90012).
 Remove C-ring (51105).
If provided
Removing the diffuser
