ABB TPS 48D01 - Page 103

Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 101
April 2015 HZTL2410_EN Revision D


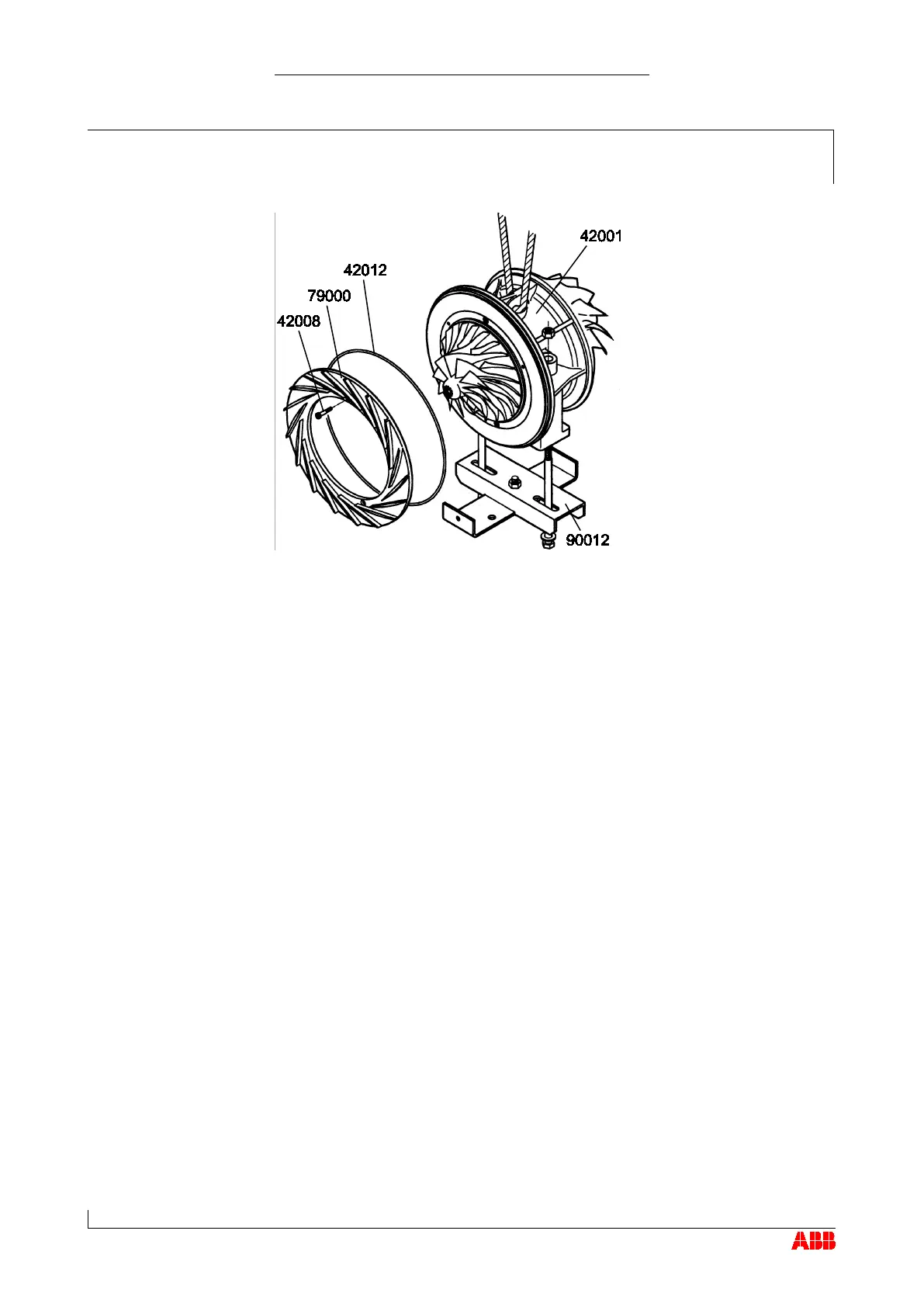

Put cartridge group (42001) on service support (90012) and secure
using bolts.
 Remove screw (42008) and remove diffuser (79000) complete with O-
ring (42012).
 Measure axial and radial clearances. (See section Axial and radial
clearances.)
