Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembling and assembling
turbocharger
Page 102
April 2015 HZTL2410_EN Revision D
Fitting the cartridge group
Used O-rings must always be replaced with new ones. O-rings are only
available as a set (see chapter Spare parts).
The insulation on the turbine casing may protrude at the gas outlet side.
This can be pushed back in with a screw driver.

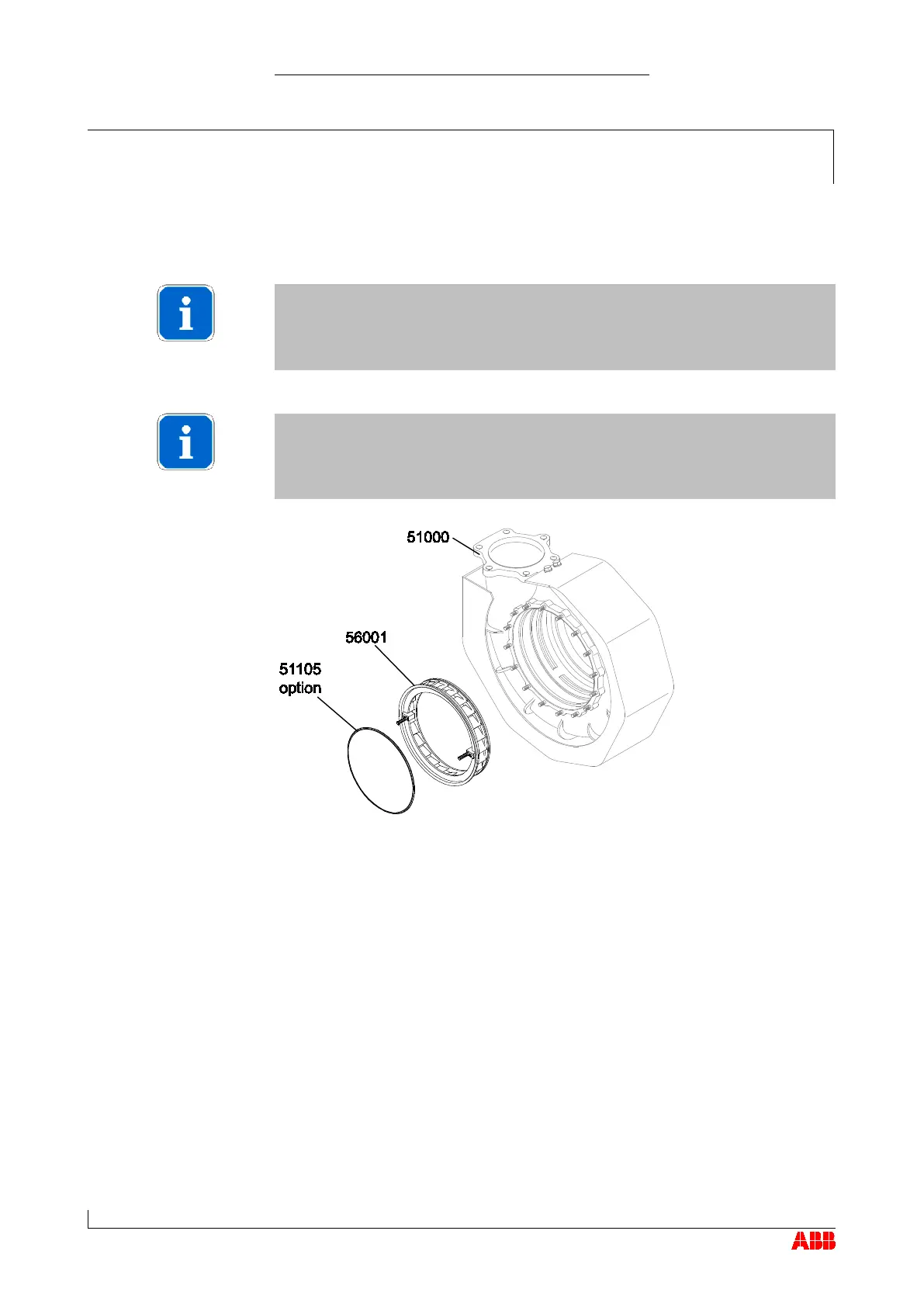

Push the nozzle ring (56001) into the turbine casing (51000) as far as
it will go.
Insert the C-ring (51105) into the turbine casing and hold it in place
using high-vacuum grease.
© Copyright 2015 ABB. All rights reserved.
