Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 103
April 2015 HZTL2410_EN Revision D
NOTICE
To ensure the nozzle ring is held in place during operation, it must be
clamped between the partition wall and the turbine casing.

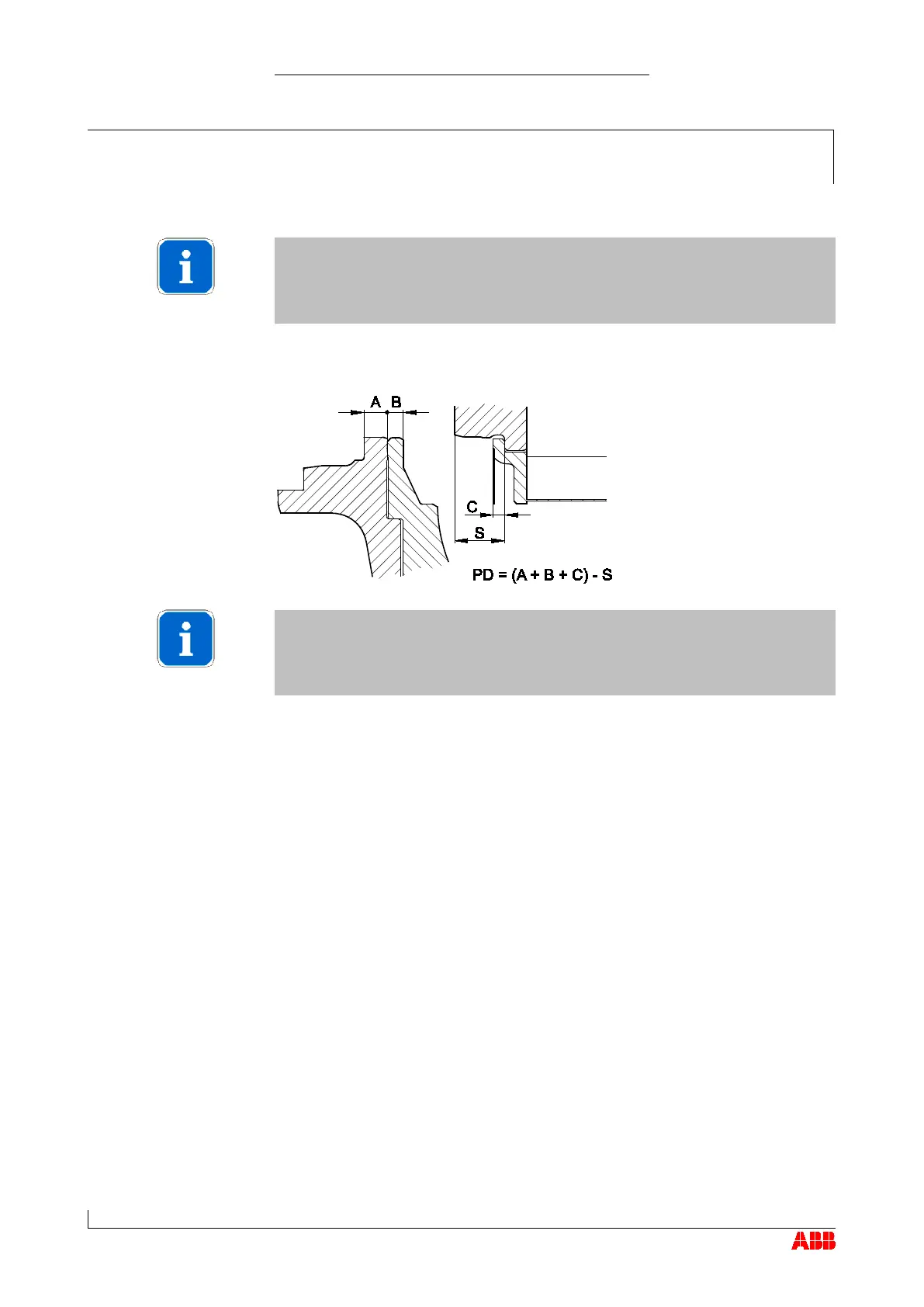

 Calculate the press fit (PD) as shown.
NOTICE
If the calculated value (PD) is less than 0.1 mm, an official ABB
Turbocharging Service Station must be contacted.
 Measure the axial and radial clearances (see the section Axial and
radial clearances).
Nozzle ring press fit for
single inlet turbine casing
