ABB TPS 48D01 - Page 106

Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 104
April 2015 HZTL2410_EN Revision D

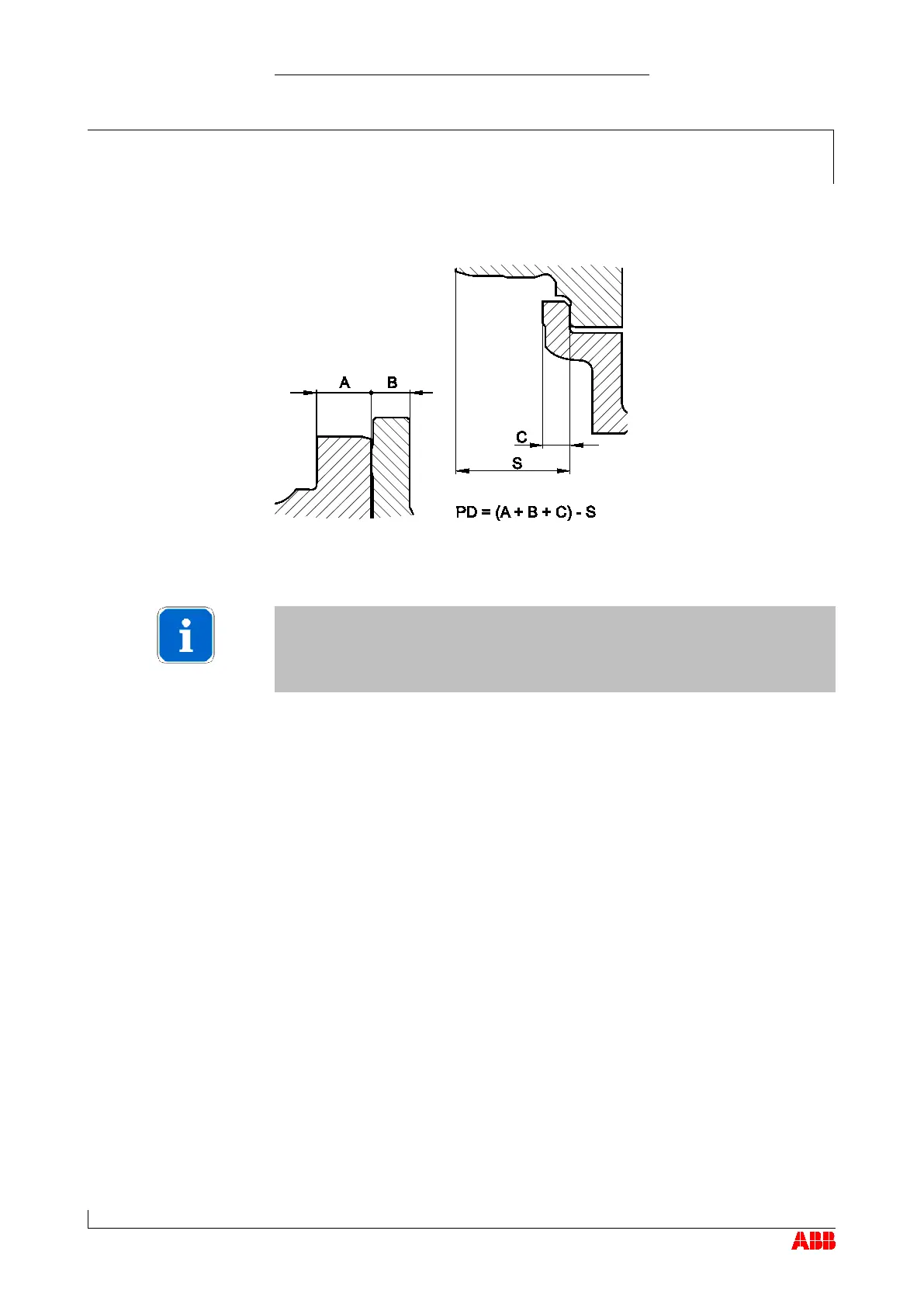

 Calculate the press fit (PD) as shown.
NOTICE
If the calculated value (PD) is outside ±0.2 mm, an official ABB
Turbocharging Service Station must be contacted.
 Measure the axial and radial clearances (see the section Axial and
radial clearances).
Nozzle ring press fit for
multiple inlet turbine
casing
