Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 103
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E

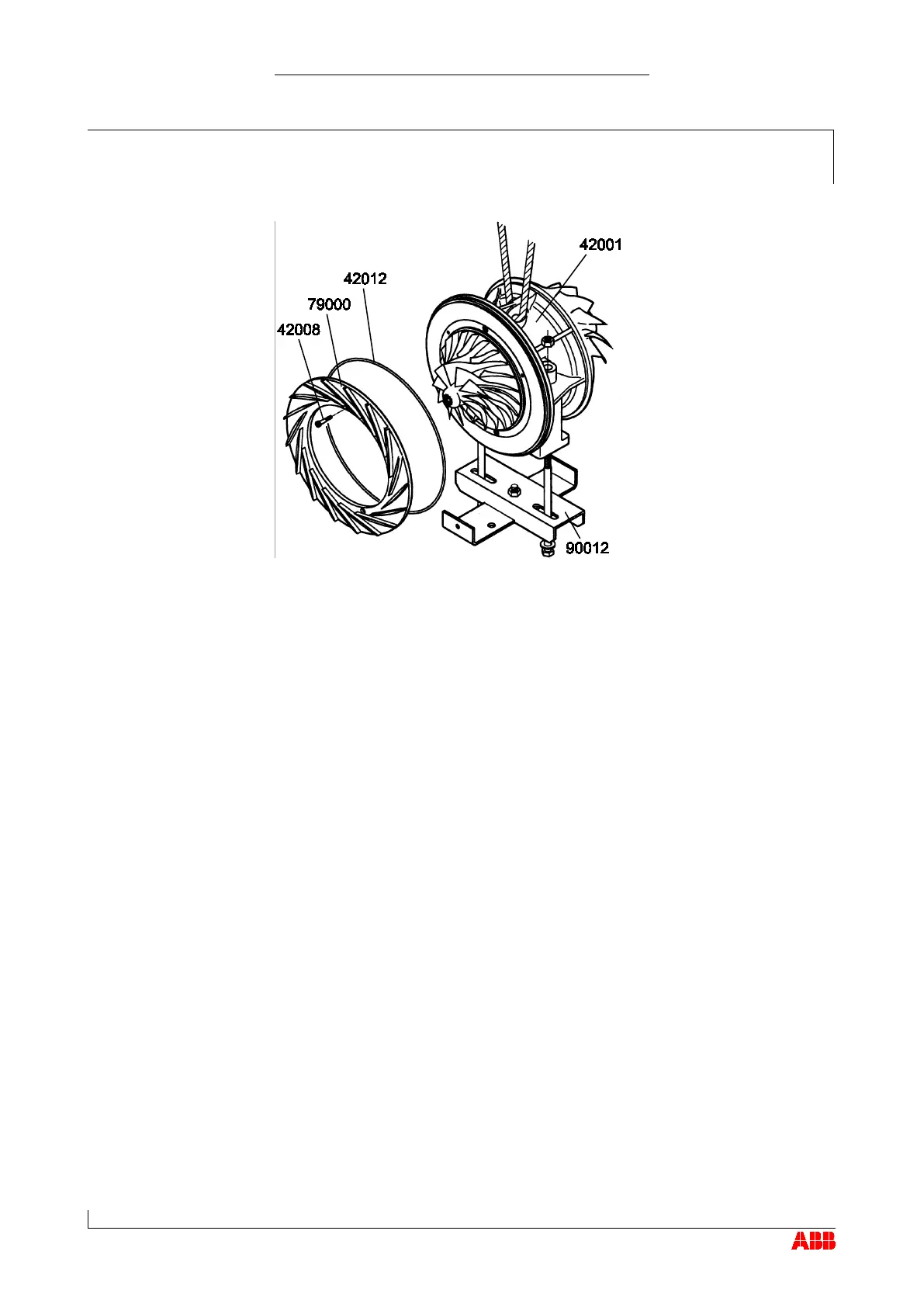

Put cartridge group (42001) on service support (90012) and secure
using bolts.
Remove screw (42008) and remove diffuser (79000) complete with
O-ring (42012).
Measure axial and radial clearances. (See section Axial and radial
clearances.)
Removing the diffuser
