Operation Manual / TPS48-D/E.. - TPS61-D/E..
Preliminary remarks
1
Layout and function
1.2
Page 4
© Copyright 2016 ABB. All righ
ts reserved.
September 2016 HZTL2410_EN Revision E

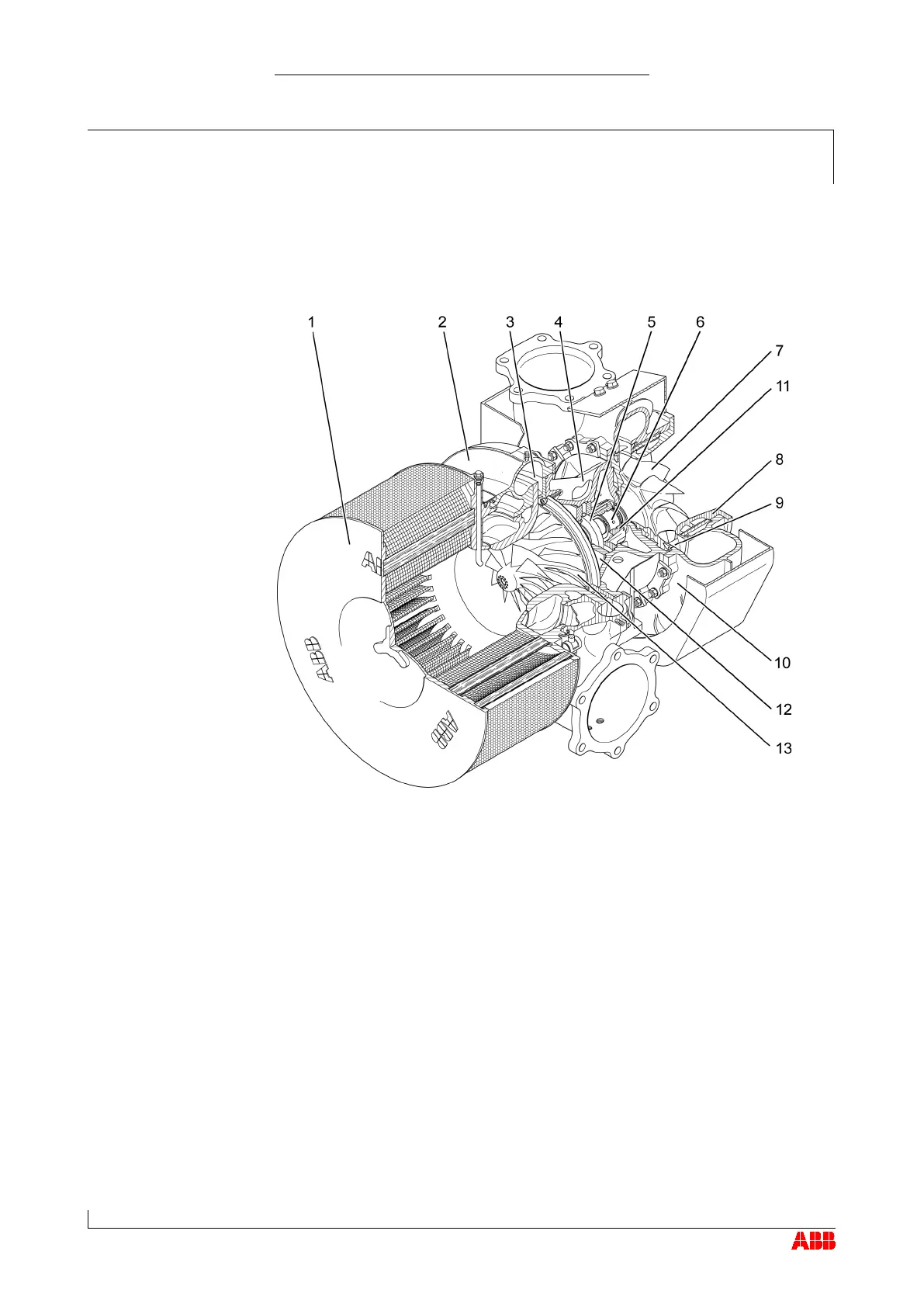

Layout and function
1.2
1
Suction branch / filter silencer 8
Gas outlet flange
2
Compressor casing 9
Nozzle ring
3
Diffuser 10
Turbine casing
4
Bearing casing 11
Turbine-end bearing flange
5
Axial thrust bearing 12
Compressor-end bearing flange
6
Radial plain bearing (visible
only at turbine end)
13
Compressor wheel
7
Turbine
1.2
