ABB TPS48 Series - Turbocharger Removal Procedures

Operation Manual / TPS48-D/E.. - TPS61-D/E..
Removal and installation
7
Transport
7.1
Page 87
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E
Removal and installation
Transport
7.1

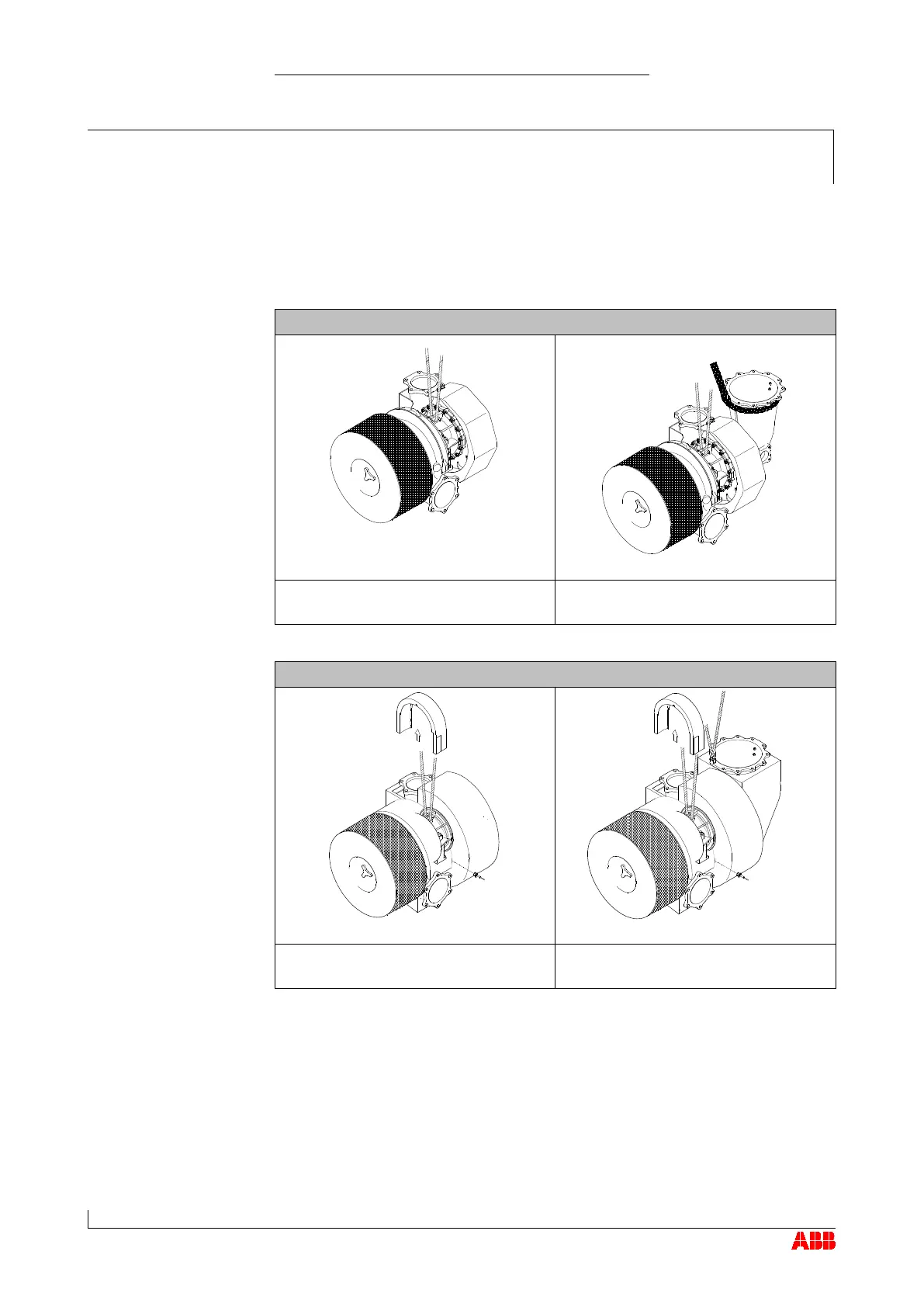

Suspension of uninsulated turbocharger
Turbocharger with oil-cooled bearing
casing
Complete turbocharger with gas outlet
casing
Suspension of insulated turbocharger
Turbocharger with oil-cooled bearing
casing
Complete turbocharger with gas outlet
casing
