ABB TPS48 Series User Manual

Operation Manual / TPS48-D/E.. - TPS61-D/E..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 109
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E


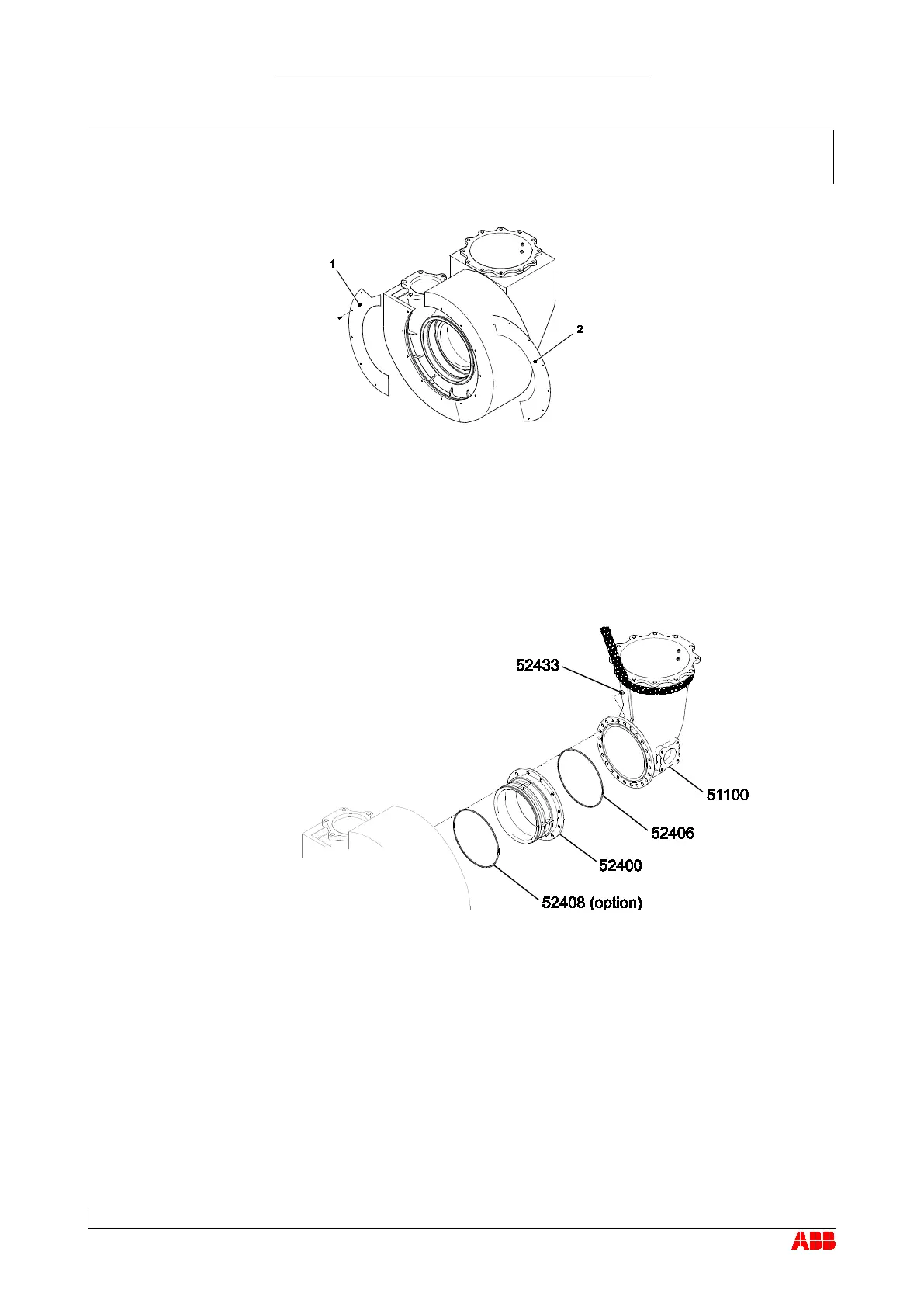

Plug in the cable connector (86515) for the speed sensor (86505) and
fit the insulation plates (1, 2).
Removing gas outlet bend and gas outlet flange
 Disconnect all lines in accordance with engine builder's instructions
and remove insulation. (See also preceding chapter.)

Loop lifting gear around gas outlet bend (51100).
 Remove gas outlet bend (51100) and gasket (52406). Only gas outlet
bends from ABB Turbo Systems have the gasket (52406).
 Remove gas outlet flange (52400) and, if fitted, C-ring (52408).
If provided
If provided
