Operation Manual / TPS48-D/E.. - TPS61-D/E..
Taking out of operation
9
Shutting down the turbocharger
9.1
Page 117
© Copyright 2016 ABB. All rights reserved.
September 2016 HZTL2410_EN Revision E

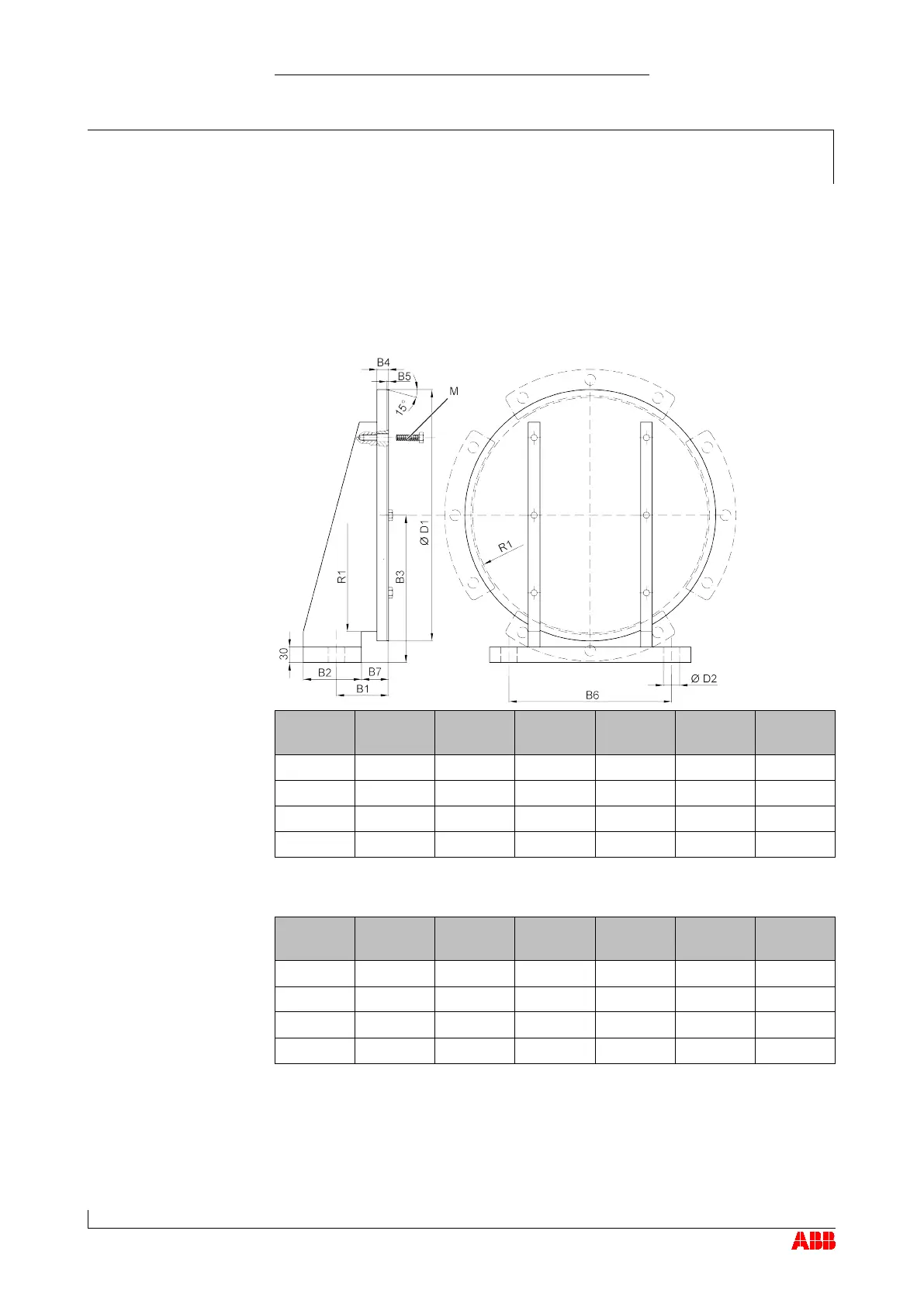

Cover plate drawing
The cover is not supplied by ABB Turbo Systems and must be manufac-
tured by the operator according to the following drawing.
Material: Common structural steel, according to DIN EN 10025-2
Product
B1
±0.5
B2
B3
B4
±0.2
B5
B6
TPS48 65.7 60 130 11.7 1.5 150
TPS52
79.6
78
155
14.2
1.5
180
TPS57 98.2 100 190 17.2 2 220
TPS61
116.8
120
226
20.5
2.4
260
Product
B7
ØD1
±0.2
ØD1*
±0.2
ØD2
R1
M
TPS48 35.7 222.7 227.7 17 105 M8
TPS52 39.6 265.7 271.7 21 125 M8
TPS57 48.2 325.7 332.5 21 153 M10
TPS61 56.8 387.7 395.9 25 182 M10
Dimensions in [mm]
