5.6.3 Ekip Com DeviceNet -module
The Ekip Com DeviceNet –module is a
communication accessory module, that
integrates the automatic transfer switch
in an industrial remote supervision and
control network. The module is suitable
for Level 3 and Level 4 controllers (LCD
and touch control interfaces).
It can be connected to a CAN network
with a DeviceNetTM communication pro-
tocol, and allows you to:
• Connect the automatic transfer switch
as slaves to the network, with dialog
functionality.
• Provide the status information of the
automatic transfer switch (open,
closed).
For the communication lines, Belden type
3084A or equivalent cables must be used.
—

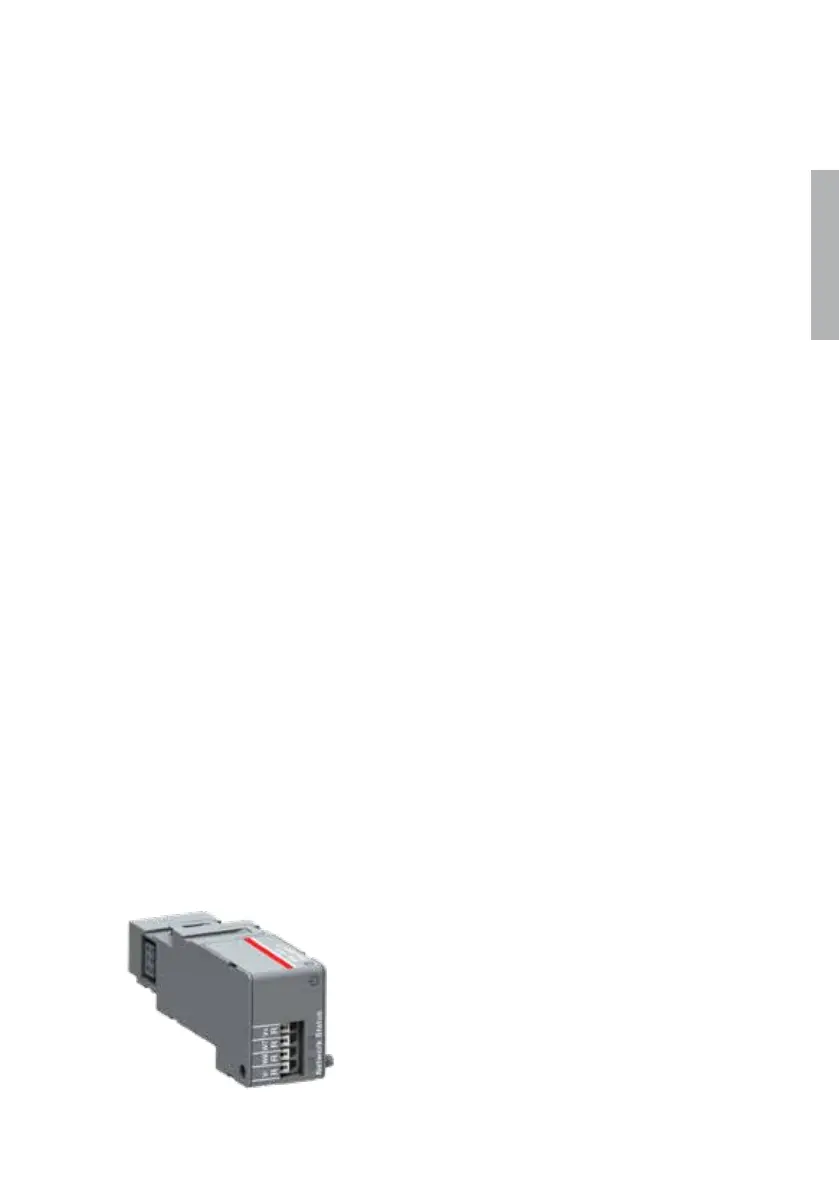

Fig. 5.17 Ekip Com DeviceNet -module
