TruONE® ATS, INSTALLATION AND OPERATING INSTRUCTION
1
LCD, TOUCH
5.6.5.1 Signallings
The following table illustrates the possi-
ble signals, and their meaning:
Link
Activity
LED Indication Description
Power LED, green Off Power supply absent.
On fixed Power supply and communication
with the device present.
On, with two quick flashes per second Power supply present, and
communication with device absent.
Link LED, green Off Connection error (signal absent).
On, fixed Correct connection.
Activity LED, yellow Off No activity on the line.
On, flashing Activity present on the line (in
reception and/or transmission.
—
Table 5.20 Indication / Ekip Com Profinet -module
—

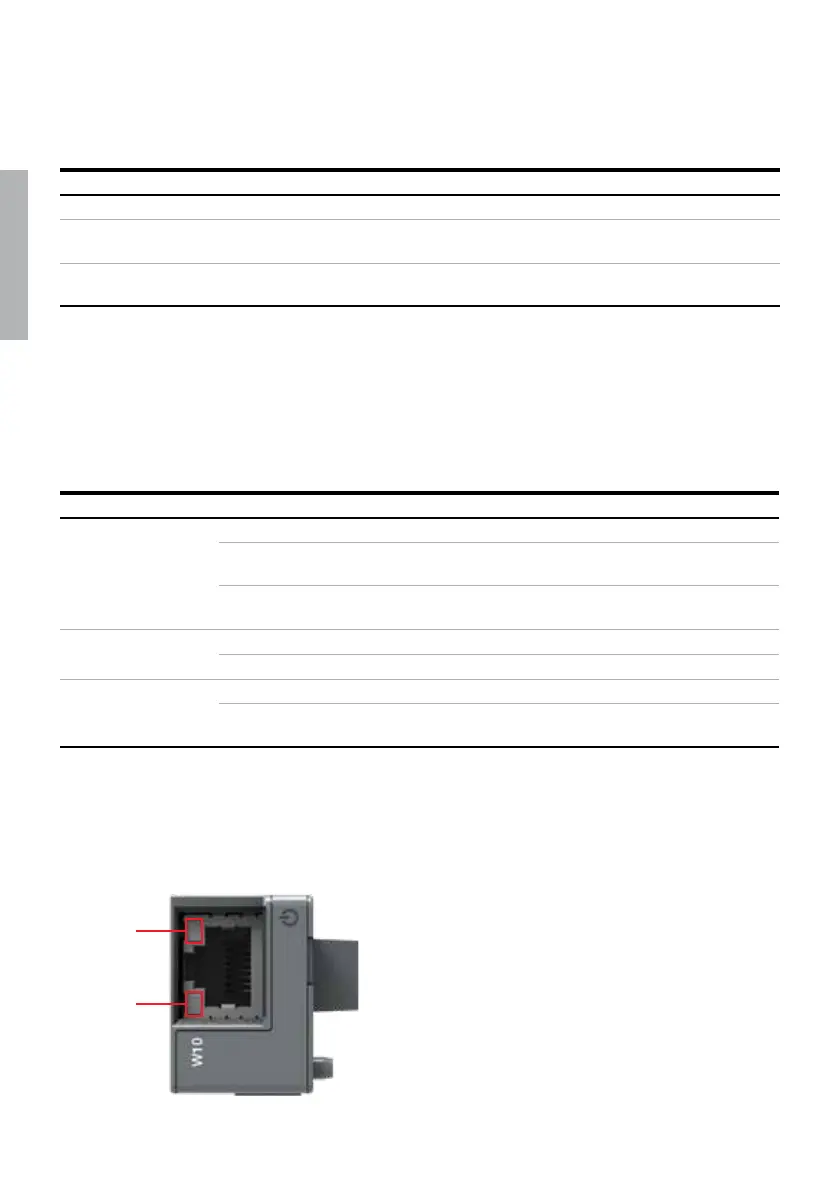

Fig. 5.23 Signals of Ekip Com Profinet -module
The following table illustrates the ports
used by the module:
Ethertype Port Service Notes
- LLDP Link Layer Discovery Protocol
- Profinet IO Specific for real time
communications (RT)
Profinet-cm
(Context Manager)
DCE/RP
—
Table 5.19 Ports of Ekip Com Profinet –module
