8.9 Fitting gas inlet casing, nozzle ring, insulation
(A275-L and smaller)
Fitting the nozzle ring
u Coat the screw threads with high-temperature grease.

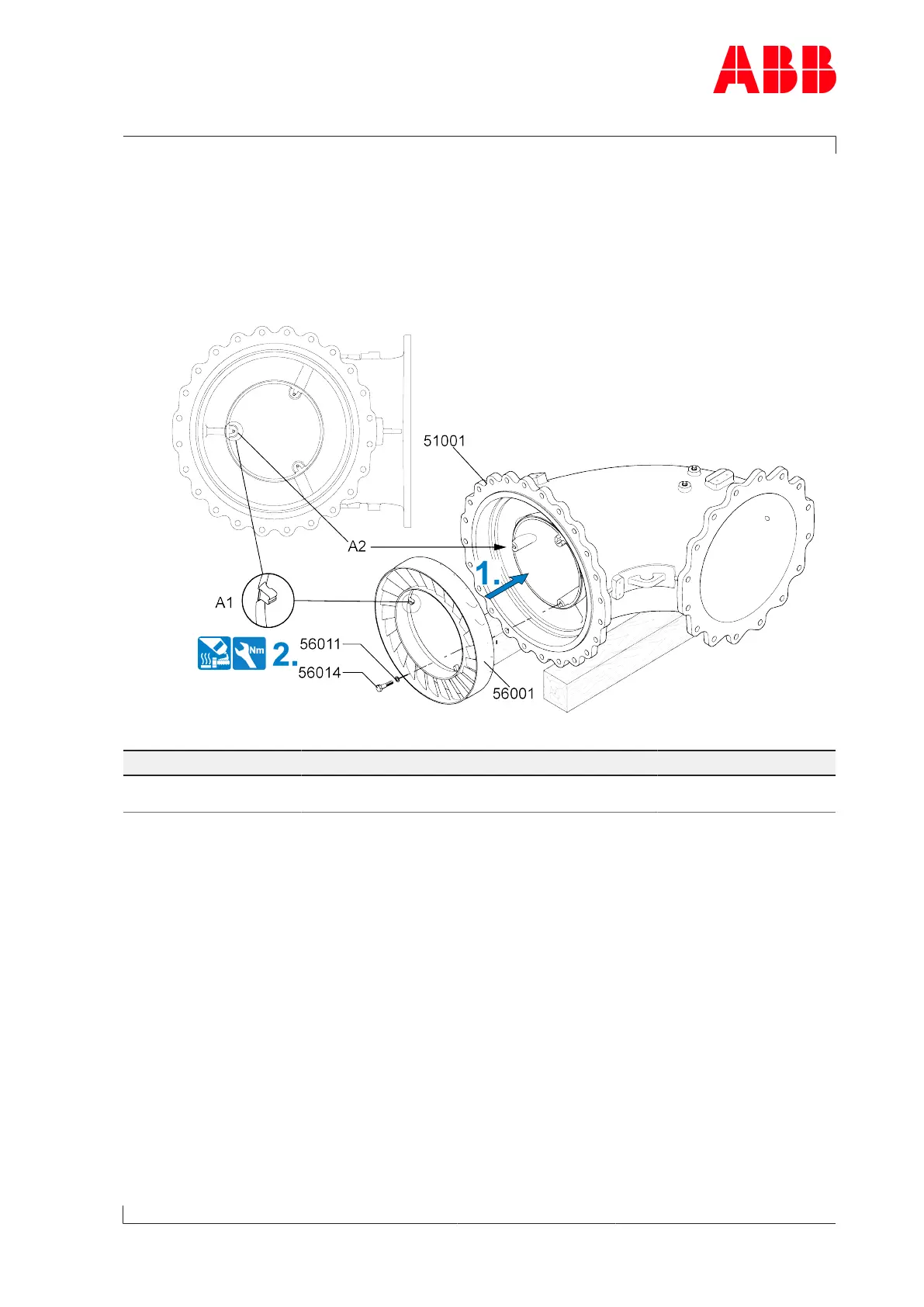

Fig.46: Fitting the nozzle ring (A275-L and smaller)
Part number A265-L A270-L A275-L
56014 M10
35Nm
M10
35Nm
M10
35Nm
Table33: Tightening torque (56014)
1. Align the notch (A
1
) with the flange connection (A
2
) and slide the nozzle ring (56001) into
the gas inlet casing (51001).
2. Fit screws (56014) with high-temperature grease and washers (56011).
