8.2 Weights of assemblies
The specified weights of the individual parts or assemblies are rounded-up standard values.

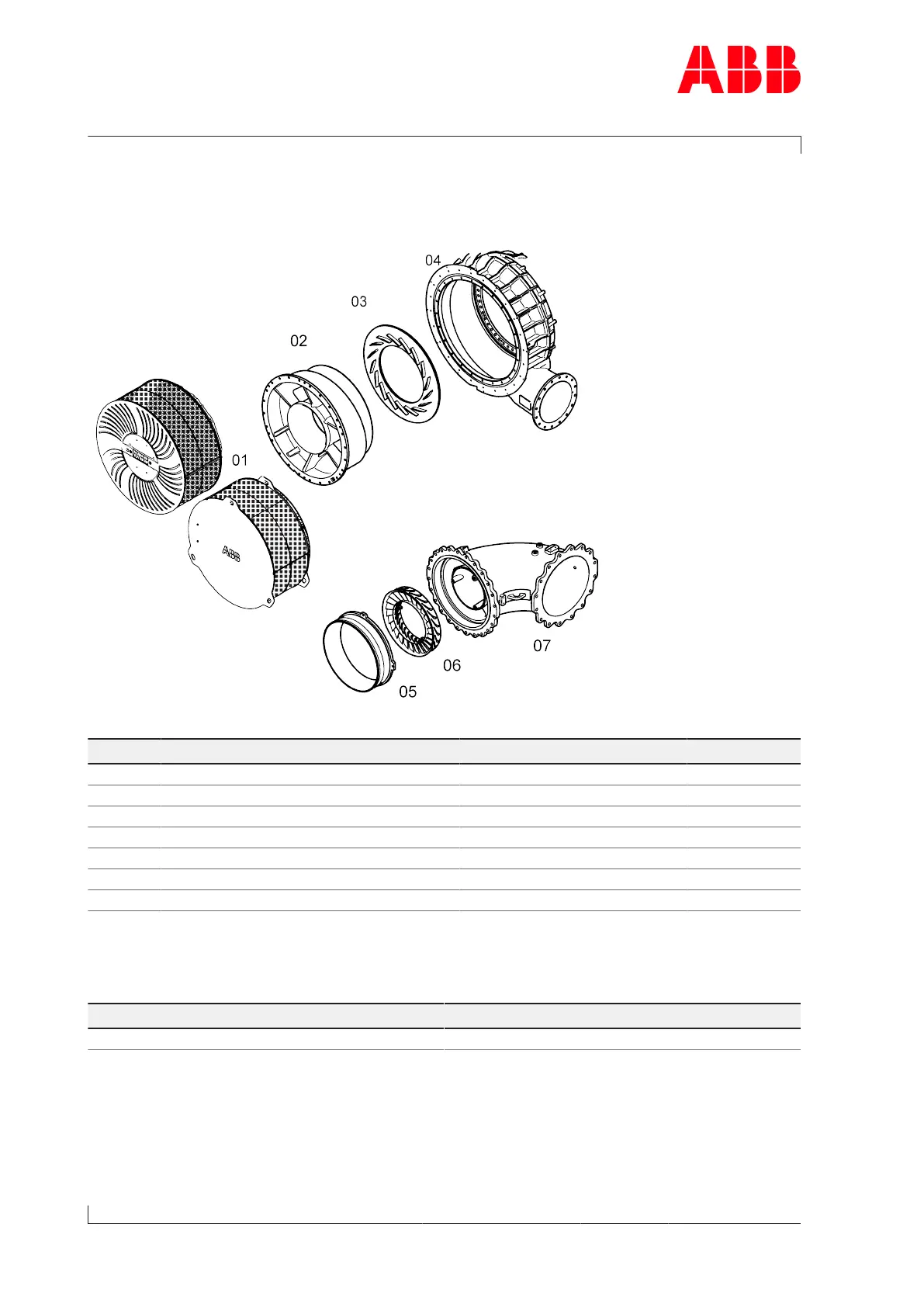

Fig.21: Overview of assembly weights
Position Assembly A265-L A270-L A275-L A280-L
01 Filter silencer 350 470 850 1150
02 Wall insert 300 450 760 1070
03 Diffuser 40 60 110 160
04 Compressor casing 400 620 1030 1350
05 Cover ring 30 50 75 90
06 Nozzle ring 10 20 25 50
07 Gas inlet casing 180 240 380 520
Table27: Weights of assemblies [kg]
The total weight of the complete wall insert is made up of the wall insert and diffuser as-
semblies.
A265-L A270-L A275-L A280-L
330 510 870 1230
Table28: Weight of wall insert [kg]
