6.2 Cleaning the filter silencer
Filter silencer with tension band

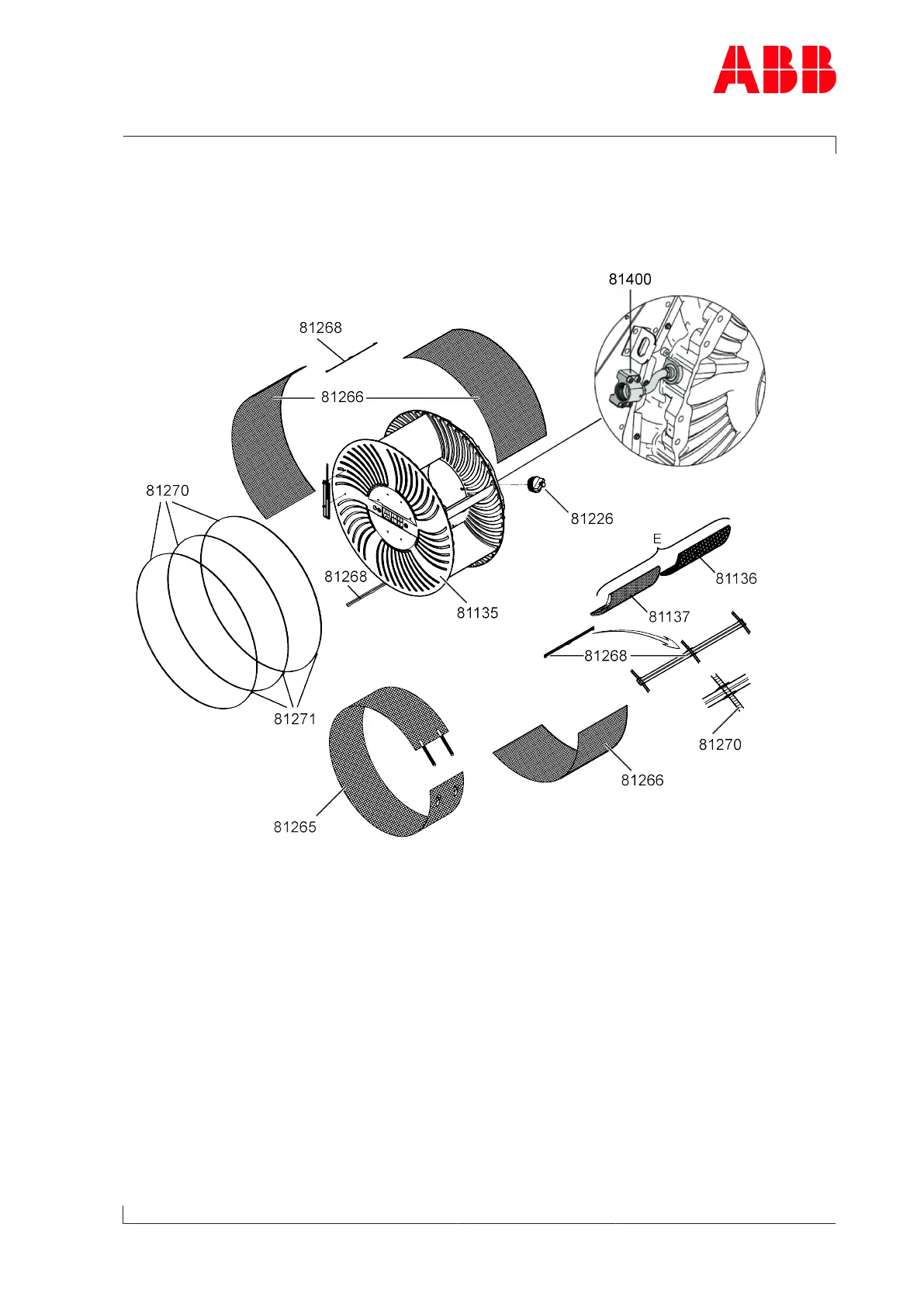

Fig.12: Layout and overview of filter silencer
81126 Lock 81266 Cover grid
81135 Body of filter silencer 81268 Connecting strip
81136 Absorption segment 81270 Tension band
81137 Sheet-metal covering 81271 Lock
81265 Filter ring (if present) 81400 Water connection
E Insert unit (absorption segment / sheet-metal covering fitted)
