Operation Manual / 4 Product description / A200-L
6 Periodic maintenance / 6.3 Changing the filter strip on the filter si-
lencer casing
© Copyright 2018 ABB. All rights reserved. HZTL4036_EN Revision M August 2018
6.3 Changing the filter strip on the filter silencer
casing
This chapter applies only to turbochargers with filter silencer casing. The filter ring (81265) is
replaced with the filter silencer installed.

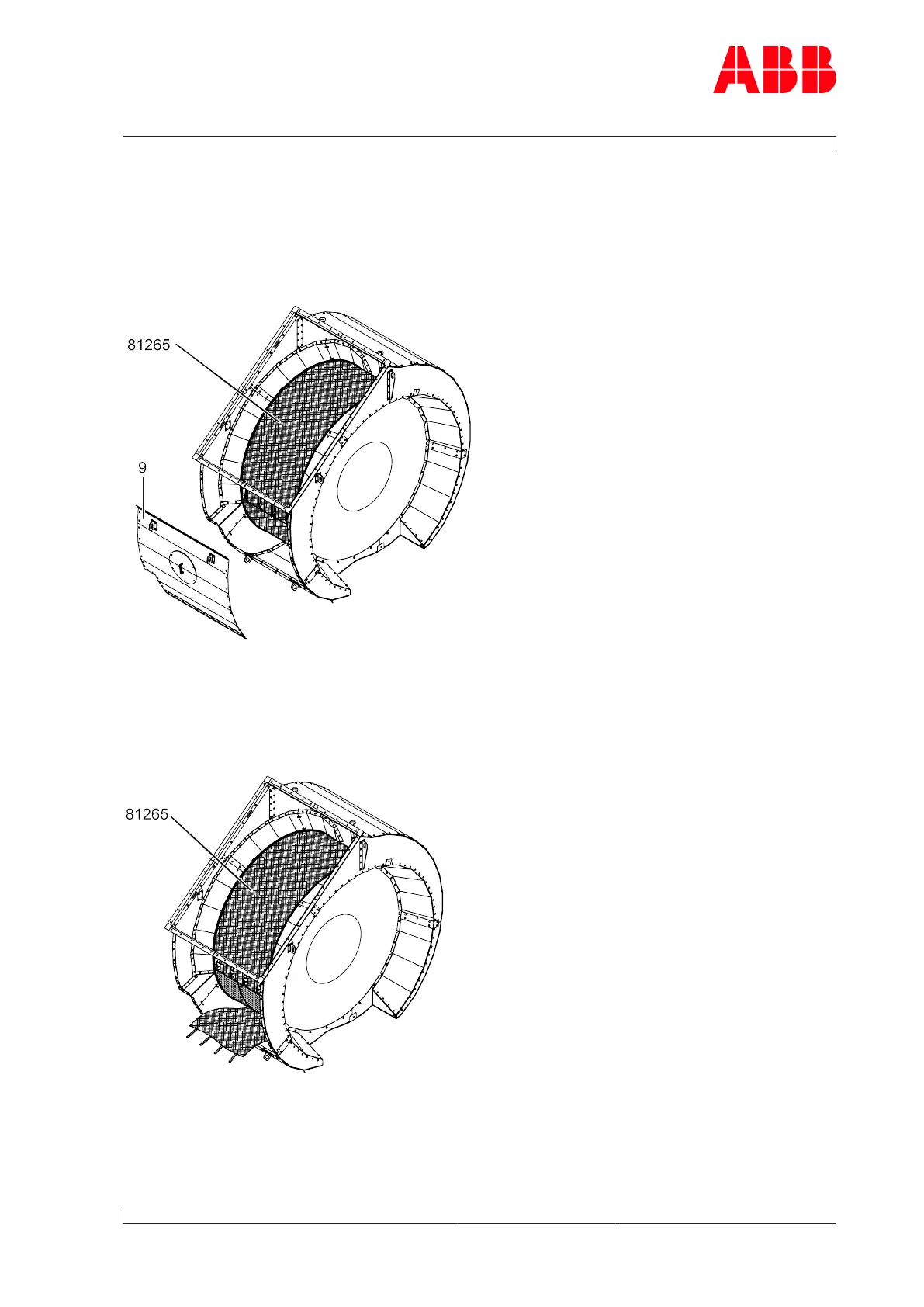

Fig.13: Dismantling filter ring circumferential part
u Dismantle circumferential part (9).
Fig.14: Opening filter ring lock
u Open the lock of the filter ring (81265).
