Operation Manual / 4 Product description / A200-L
8 Disassembly and assembly / 8.9 Fitting gas inlet casing, nozzle ring,
insulation (A275-L and smaller)
© Copyright 2018 ABB. All rights reserved. HZTL4036_EN Revision M August 2018
Fitting insulation

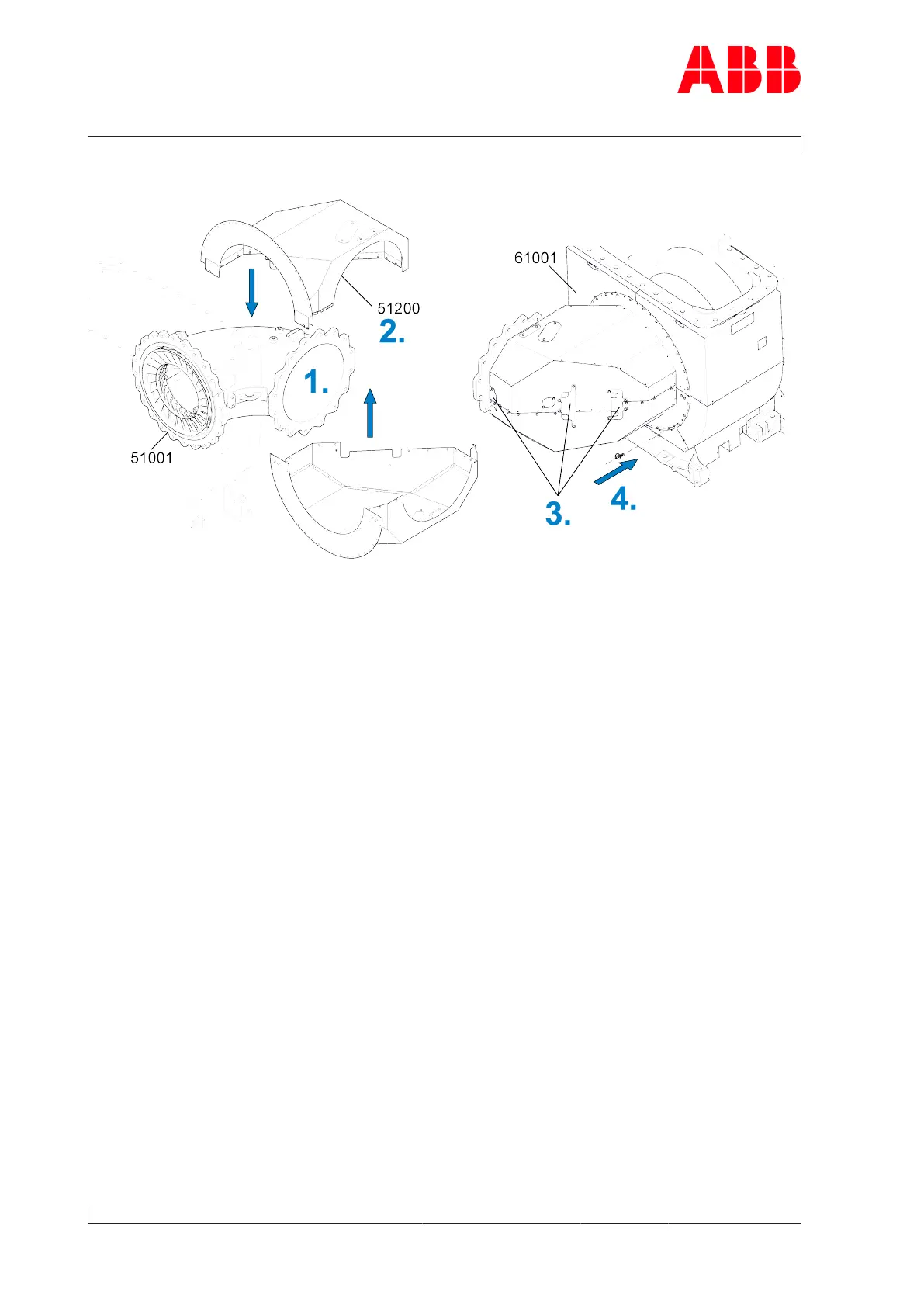

Fig.49: Fitting the insulation (A275-L and smaller)
1. Fit flange connection between gas inlet casing(51001) and bellows.
2. Fit the insulation jackets (51200) on the gas inlet casing(51001) with the screws.
3. Fit connecting plates of insulation jackets with screws.
4. Fit insulation jackets with screws on gas outlet casing(61001).
Page 76 / 108
