2.3 Installing the turbocharger
2.3.1 Placing the turbocharger on the bracket

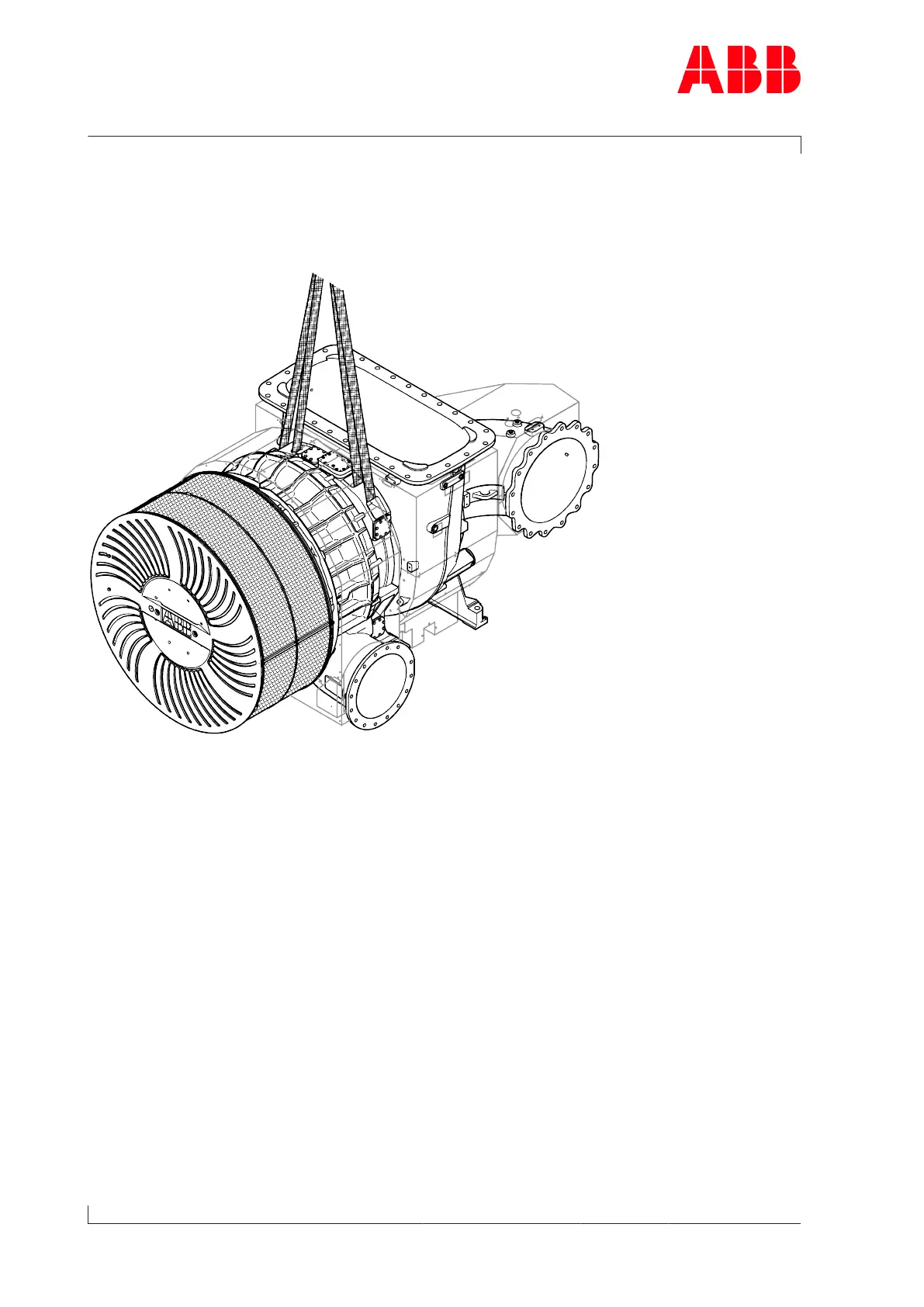

Fig.5: Placing the turbocharger on the bracket
u Remove covers from the oil connections.
u Align turbocharger and place on engine bracket.
u Tighten fixing screws (Steps for fastening the turbocharger →11); while doing this, only
slightly loosen the lifting gear.
u Remove lifting gear from suspension eyes of the bearing casing.
u Connect cable to speed sensor.
u Connect all gas, air and oil pipes.
