ABB XAC19590 - Fig. 40: Dismantling the Nozzle Ring (A275-L and Smaller)

Operation Manual / 4 Product description / A200-L
8 Disassembly and assembly / 8.7 Dismantling the insulation, the gas
inlet casing and the nozzle ring (A275-L and smaller)
© Copyright 2018 ABB. All rights reserved. HZTL4036_EN Revision M August 2018
Dismantling the nozzle ring

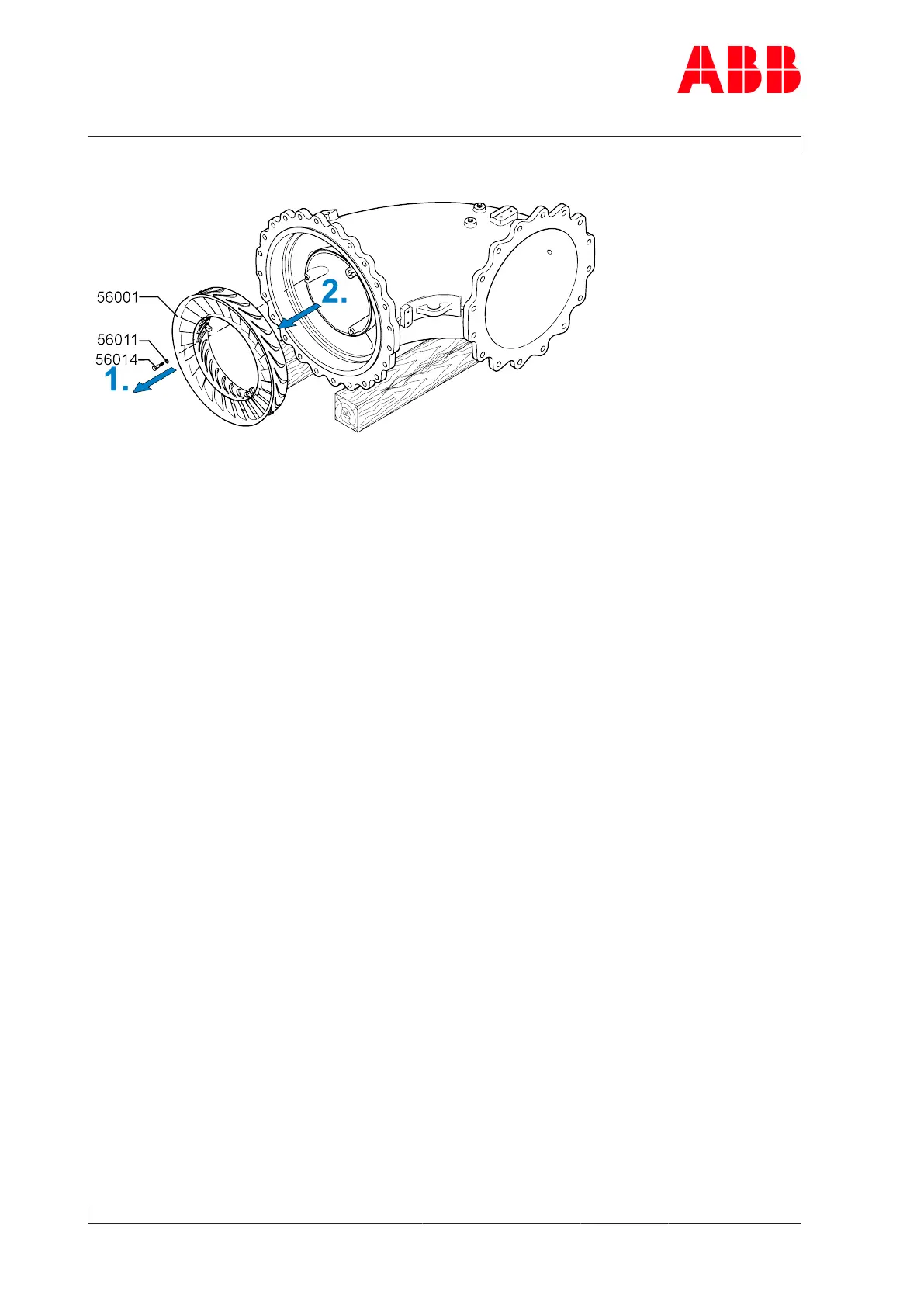

Fig.40: Dismantling the nozzle ring (A275-L and smaller)
1. Loosen screws(56014) and remove with washers(56011).
2. Remove and put down nozzle ring(56001).
Page 68 / 108
