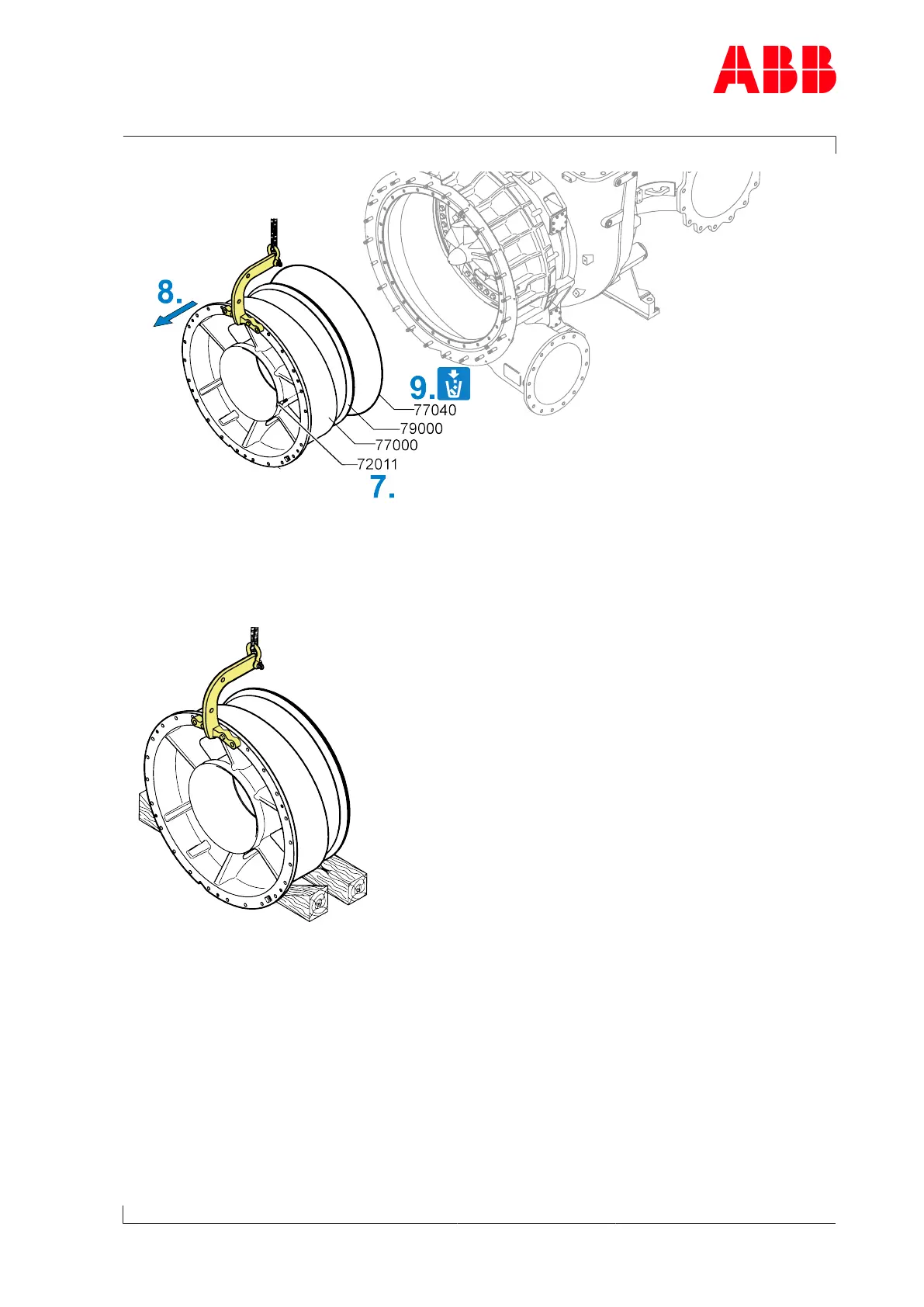

Fig.32: Moving out wall insert
7. Remove screw(72011).
8. Carefully move out the wall insert(77000) with diffuser(79000).
9. Remove the O-ring (77040).
Fig.33: Putting down wall insert
u Put down wall insert (77000) with diffuser(79000) in horizontal position and use appro-
priate supports to prevent it from falling over and rolling away.
