Operation Manual / A100-L
13 Spare parts / 13.2 Spare Part - Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4034_EN
Rev.T
December 2021
13.2

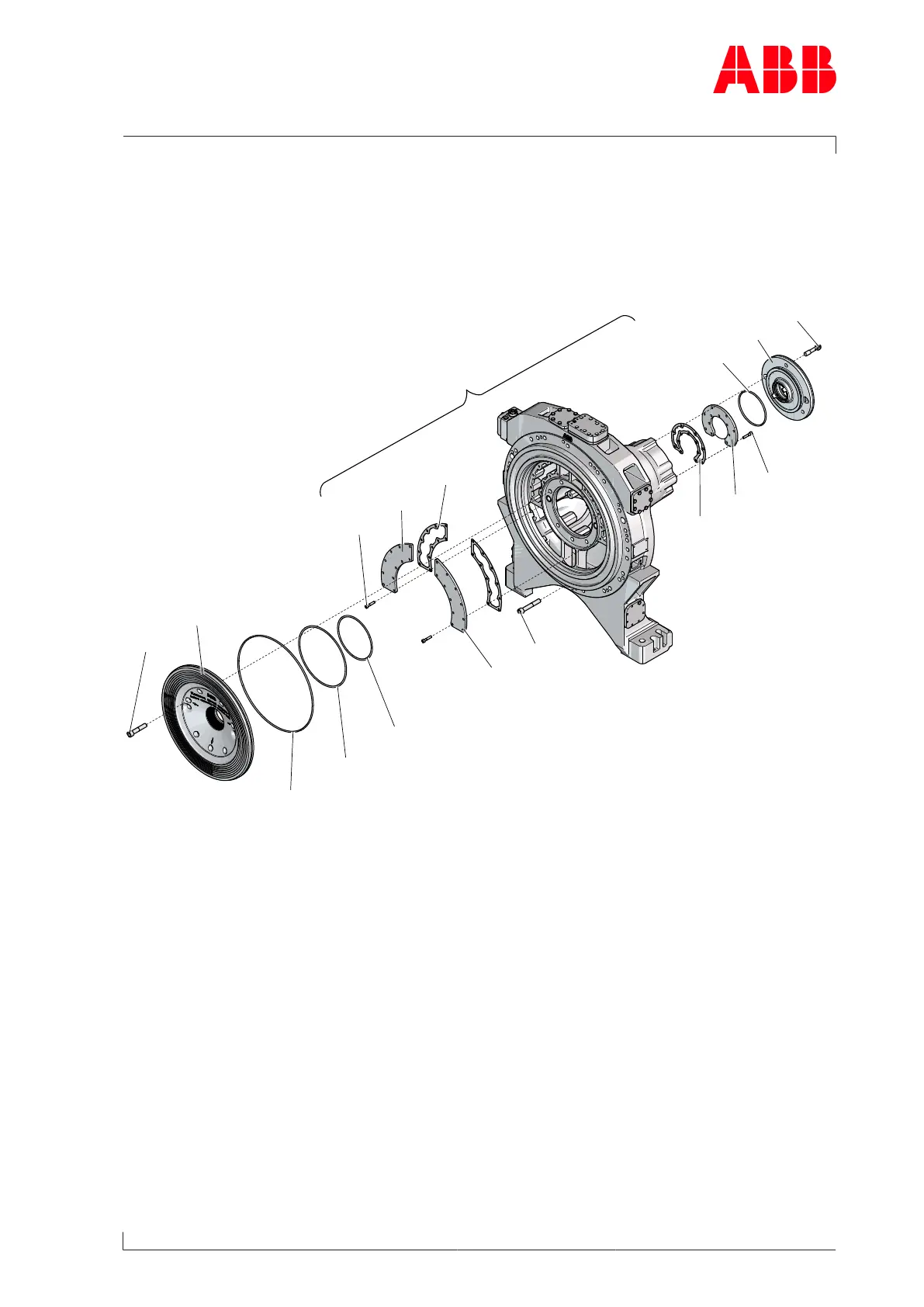

Spare Part - Illustrations
The spare parts lists shown below are only available in English.
Bearing casing common parts
42039
42015
42011*
42463
42464
42465
61035
42001
42461
42459
42460
42462
42307*
42306*
42305*
42300
42008
* = Av
ailable within the spare part set
HZTL443382 Mod. B
Page 119 / 141
120
122
