Operation Manual / A100-L

9 Disassembly and assembly / 9.4 Disassembly and assembly of the fil-

ter silencer casing

u Fit the circumferential part(09) with the screws.

Screws for fastening the individual parts to

the filter silencer

Screws for fastening the individual parts

M10

30Nm

25Nm

Table30: Tightening torques (filter silencer screws)

u Tighten all screws of the bottom parts(01) and (02).

u Tighten all screws of the side parts(03, 04, 07, 08) and the flanges(10, 11).

u Tighten all screws of the circumferential parts(05, 06, 09).

Bellows

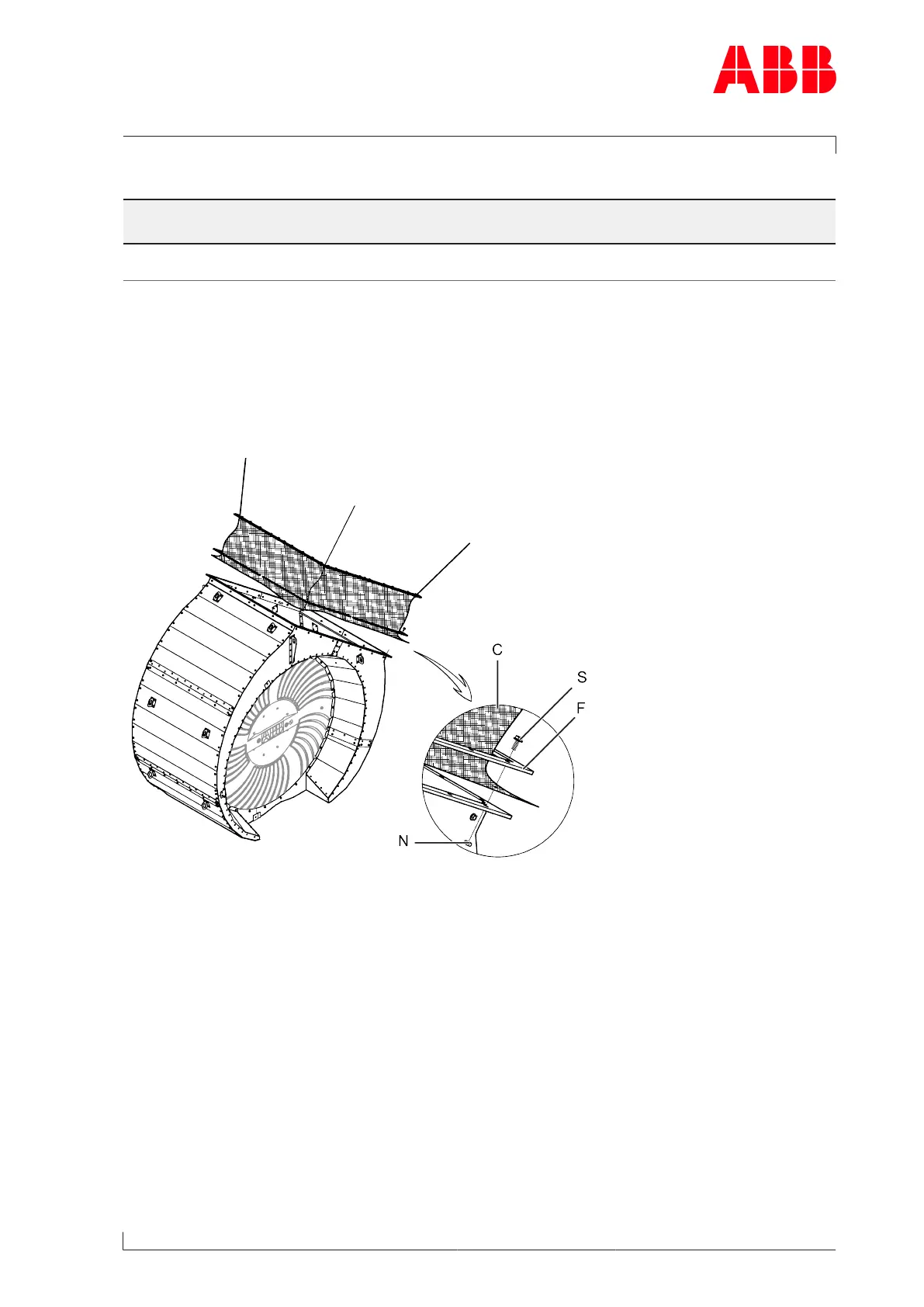

Fig.32: Fitting the bellows

u Fit bellows(C) with frame(F), screws(S) and nuts(N) on the filter silencer casing.

Page 75 / 141
