Operation Manual / A100-L
9 Disassembly and assembly / 9.4 Disassembly and assembly of the fil-
ter silencer casing
© Copyright 2021 ABB. All rights reserved.
HZTL4034_EN
Rev.T
December 2021

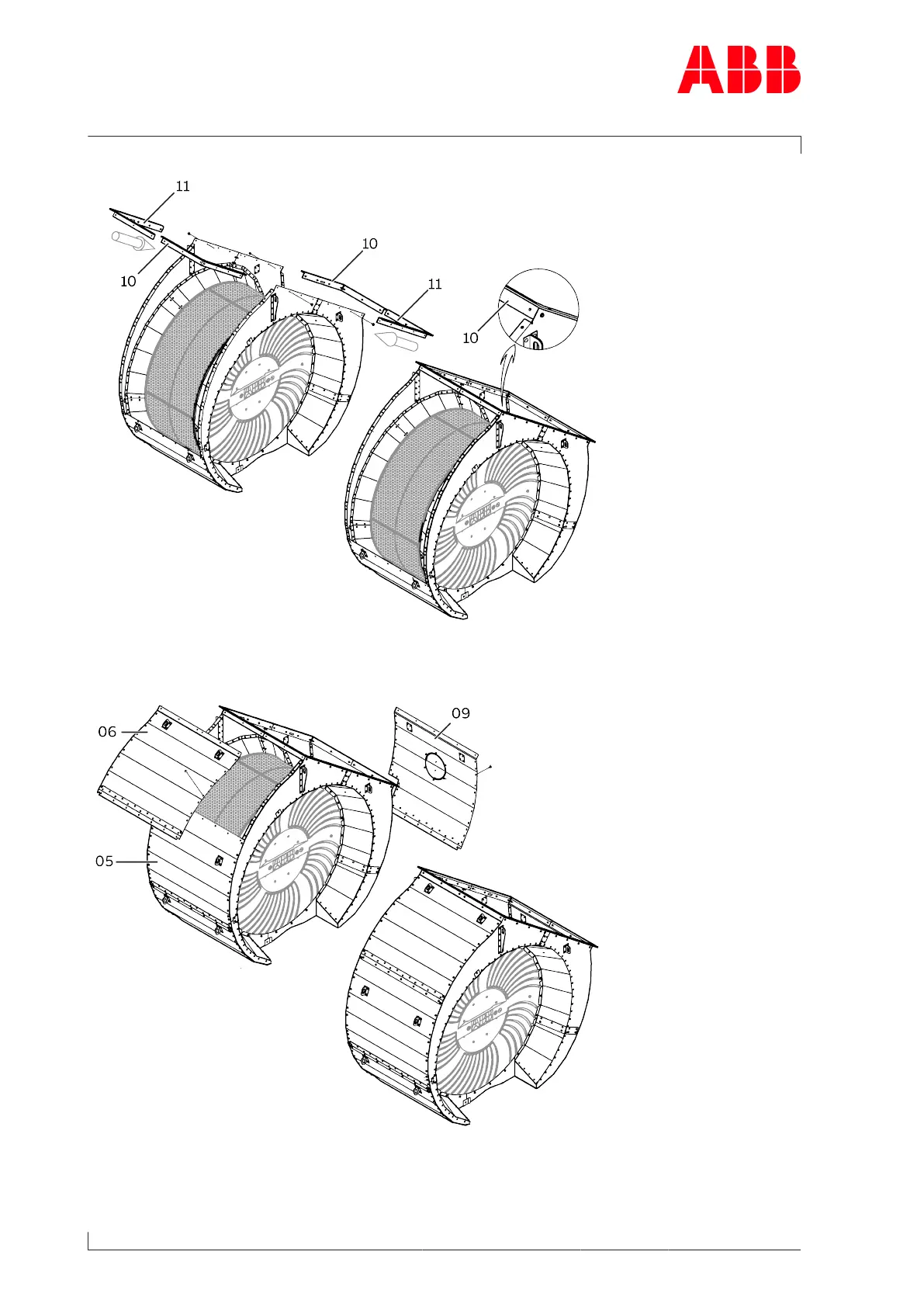

Fig.30: Fitting the filter silencer casing
u
Insert the flanges(10) and (11) laterally
between
the side parts and fit the screws.
Fig.31: Fitting the filter silencer casing
u
Fit the circumferential part(05) with the screws.
u
Fit the circumferential part(06) with the screws.
Page 74 / 141
75
77
