Operation Manual / A100-L
13 Spare parts / 13.2 Spare Part - Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4034_EN
Rev.T
December 2021

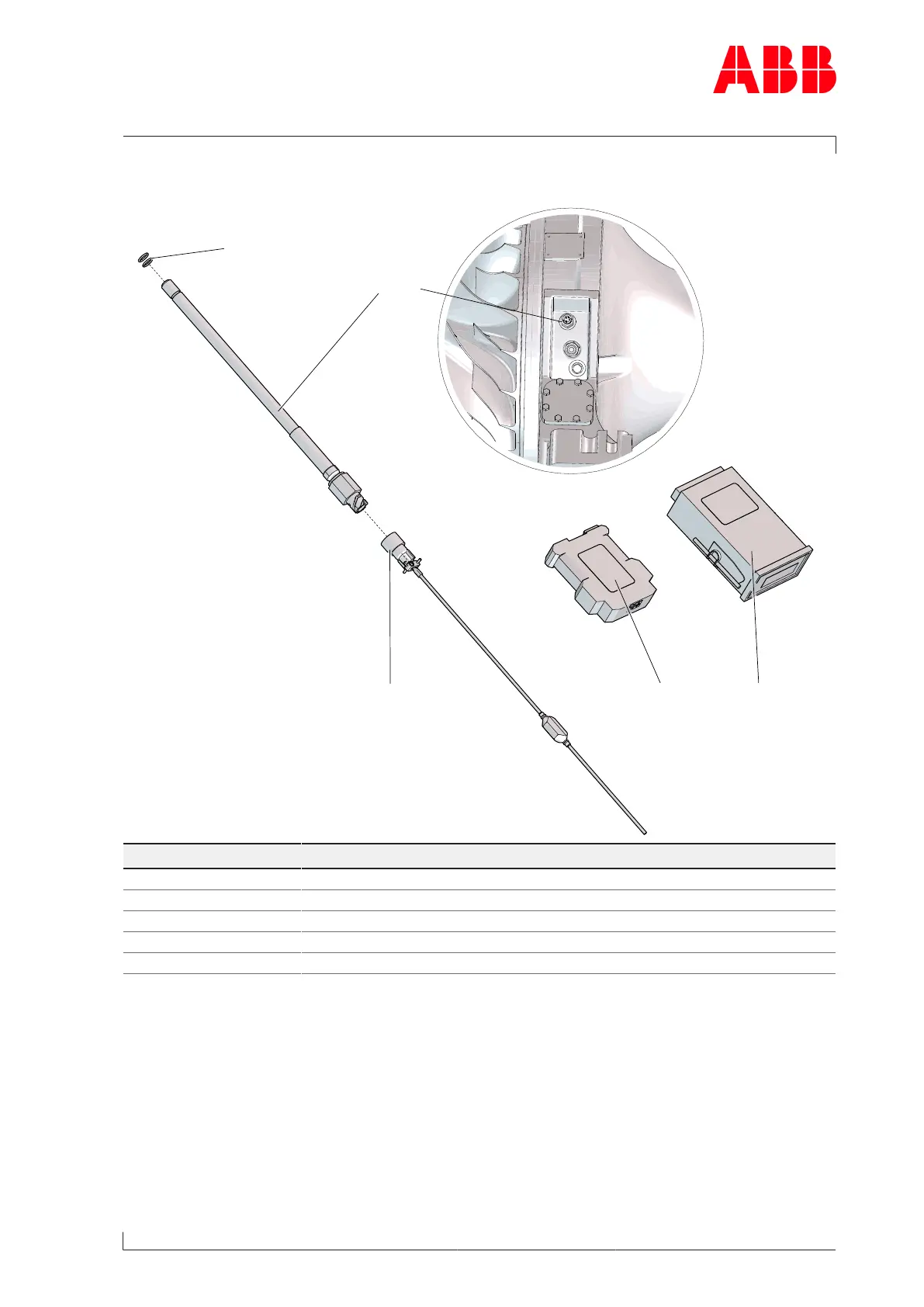

Speed measurement
86505**
86528**
86506* **
86515**
86526**
* = Av
ailable within the spare part set
** = if provided
HZTL443252 Mod. B
Part no.
Designation
86505**
Speed sensor
86506* **
O-ring
86515**
Cable connector
86526**
F/I-converter
86528**
Tachometer
Table62: Spare parts – Speed measurement
Page 133 / 141
134
136
