Operation Manual / A100-L

9 Disassembly and assembly / 9.23 Fitting the filter silencer with noise

package

9.23 Fitting the filter silencer with noise package

The following work steps apply to both the welded and cast versions of the filter silencer.

Before fitting ensure that the individual sealing segments of the gasket (81301) and the gas-

ket(74042) are not damaged and that the contact surfaces are clean.

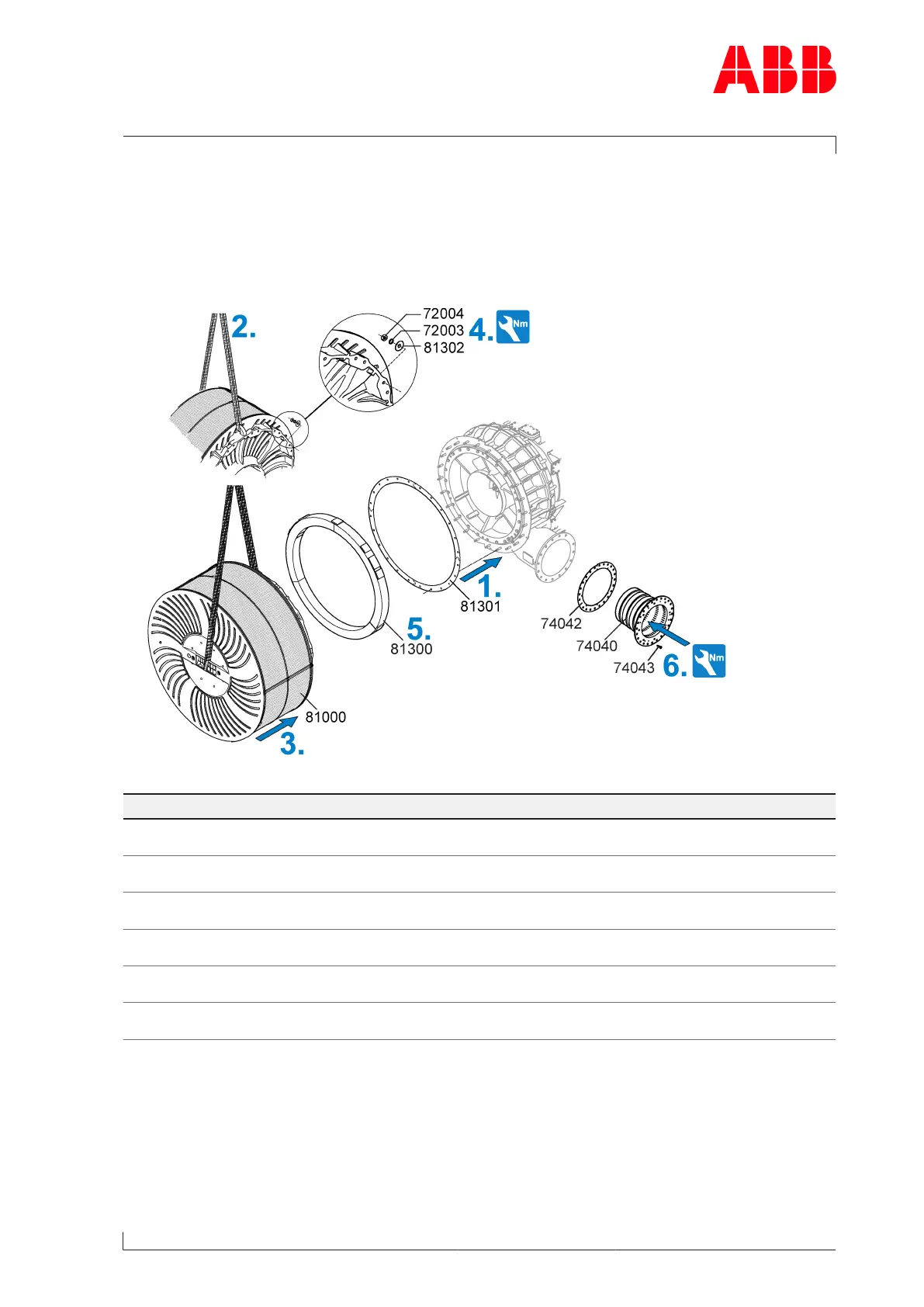

Fig.61: Fitting the filter silencer with noise package

Product 72004 [Nm] 72043 [Nm]

A165-L M14

130Nm

M10

45Nm

A170-L M16

200Nm

M10

45Nm

A175-L M18

300Nm

M10

45Nm

A180-L M20

420Nm

M10

45Nm

A185-L M22

570Nm

M10

45Nm

A190-L M24

710Nm

M10

45Nm

Table43: Tightening torque (51087)

Page 103 / 141
