Operation Manual / A100-L
9 Disassembly and assembly / 9.7 Dismantling wall insert and diffuser
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
9.7 Dismantling wall insert and diffuser
9.7.1 Dismantling the wall insert

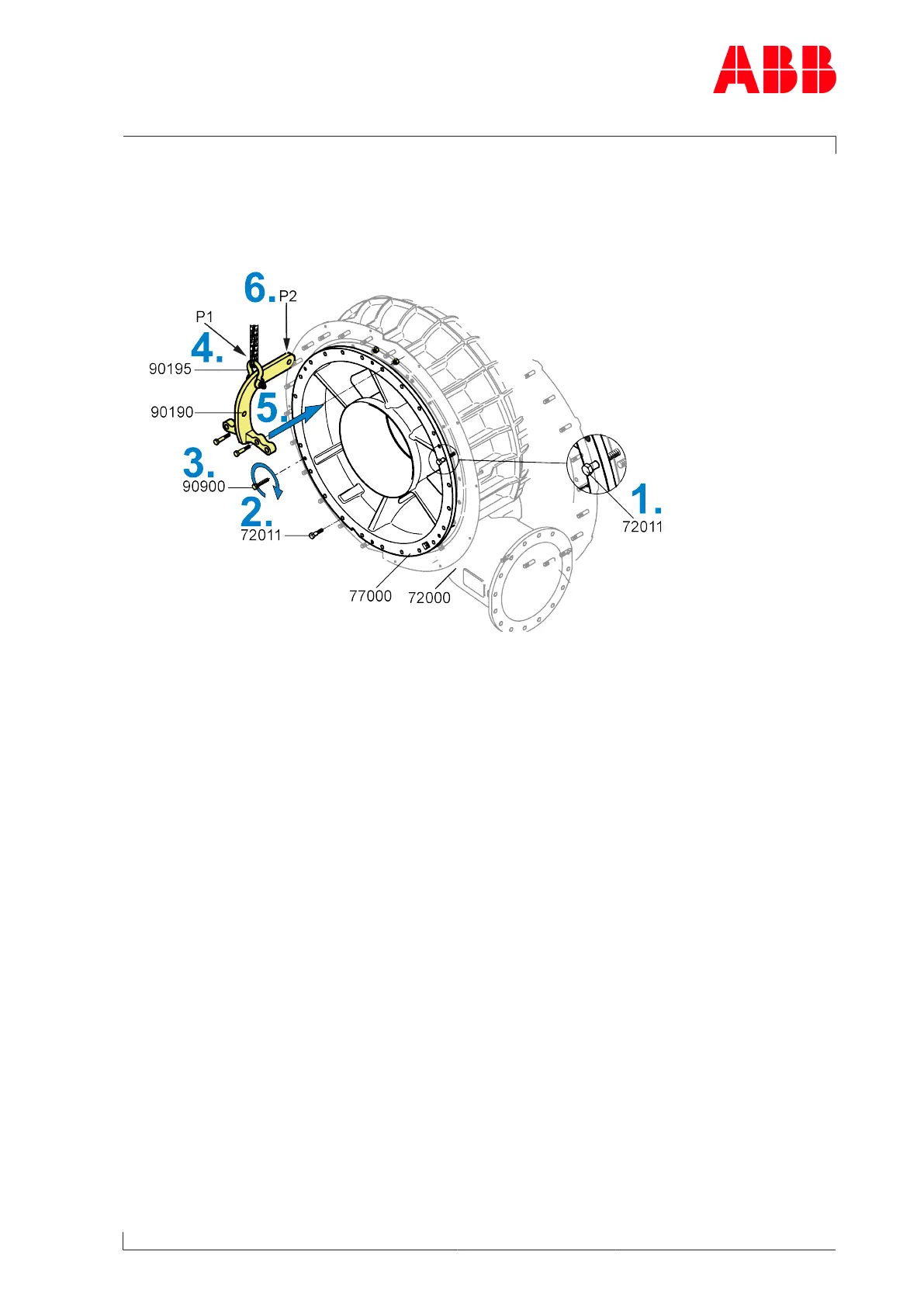

Fig.36: Dismantling the wall insert
1. Loosen one screw(72011) and leave 2/3 of the thread length screwed into the com-
pressor casing(72000).
2. Loosen and remove the remaining screws(72011).
3. Use the press-off screws(90900) to press off the wall insert(77000) from the com-
pressor casing(72000) until the lifting device(90190) can be fitted.
4. Fit shackle(90195) with lifting gear on P1 of lifting device(90190).
5. Fit lifting device(90190) with crane on upper area of wall insert(77000).
6. Change the position of the shackle with the lifting gear to P2 of the lifting device(90190).
Page 79 / 141
