Operation Manual / A100-L
1 Introduction / 1.3 Layout and function of the turbocharger
© Copyright 2021 ABB. All rights reserved. HZTL4034_EN Rev.T December 2021
1.3 Layout and function of the turbocharger

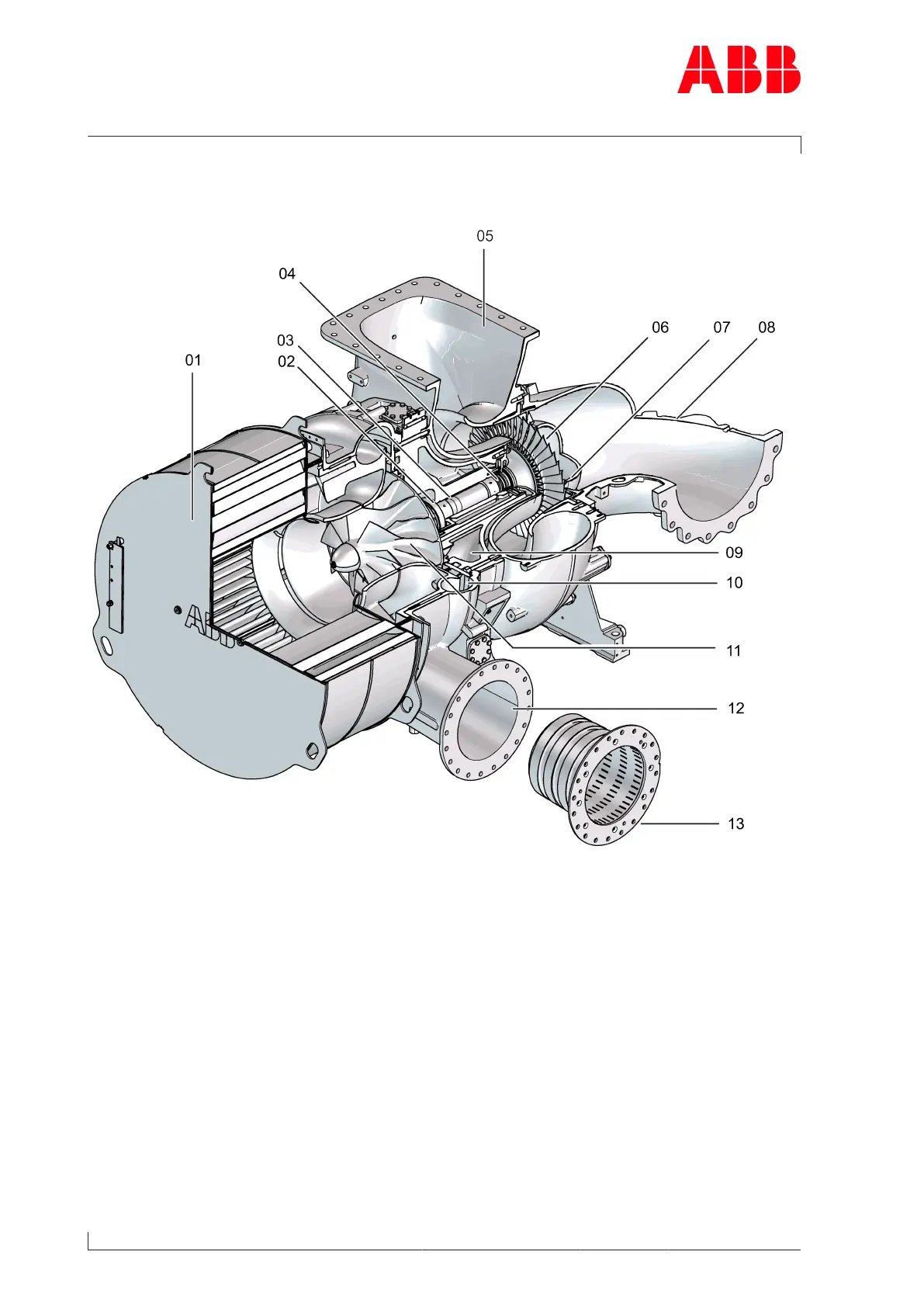

Fig.1: Layout and function of the turbocharger
01 Filter silencer 08 Gas inlet casing
02 Thrust bearing 09 Bearing casing
03 Radial plain bearing 10 Diffuser
04 Radial plain bearing 11 Compressor wheel
05 Gas outlet casing 12 Compressor casing
06 Turbine wheel 13 Air-outlet silencer (option)
07 Nozzle ring
Page 6 / 141
