Operation Manual / A100-L

9 Disassembly and assembly / 9.3 Weights of assemblies

9.3 Weights of assemblies

The specified weights of the individual parts or assemblies are rounded-up standard values.

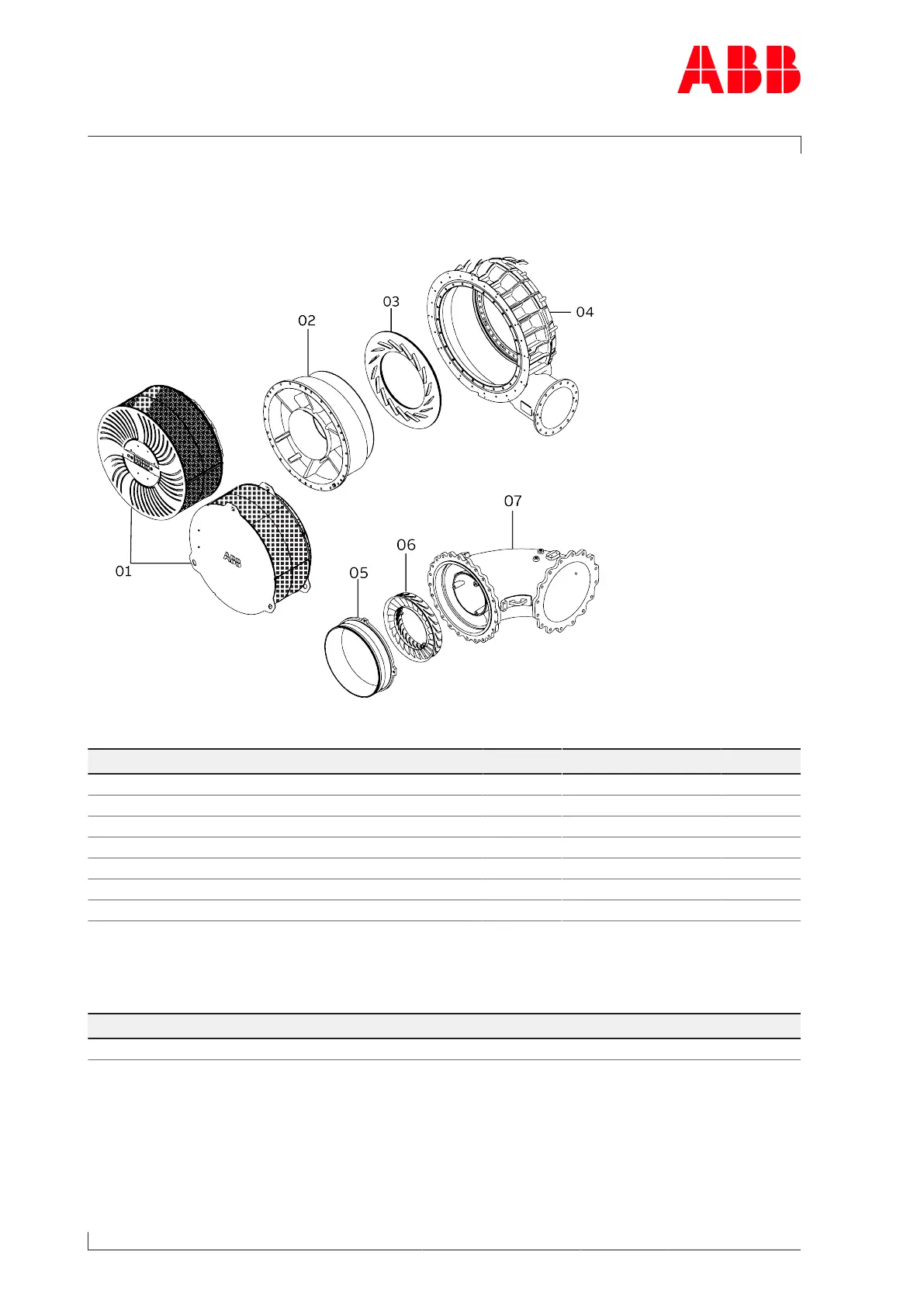

Fig.25: Weights of assemblies

Position Assembly A165-L A170-L A175-L A180-L A185-L A190-L

01 Filter silencer 240 360 600 800 850 1050

02 Wall insert 240 340 560 820 1090 1500

03 Diffuser 40 60 100 140 200 270

04 Compressor casing 320 450 740 960 1360 1800

05 Cover ring 30 50 75 90 110 150

06 Nozzle ring 10 20 25 50 65 85

07 Gas inlet casing 180 240 380 520 700 810

Table28: Weights of assemblies [kg]

The total weight of the complete wall insert is made up of the wall insert and diffuser as-

semblies.

A165-L A170-L A175-L A180-L A185-L A190-L

280 400 660 960 1290 1770

Table29: Weight of wall insert [kg]
