ABL eMH3 Installation Manual

APPENDIX
17
Scale drawings and dimensions

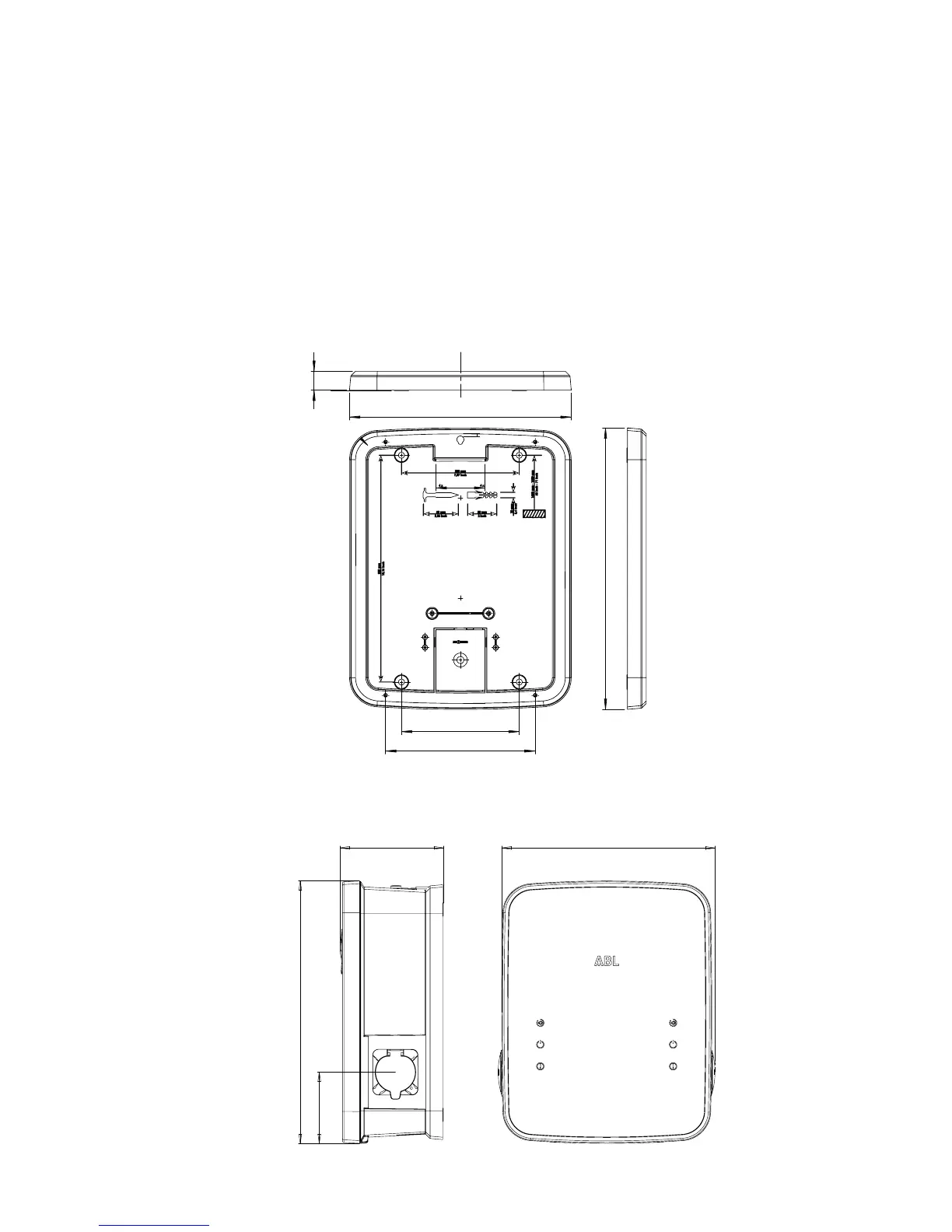

The ABL Wallbox is delivered fully assembled and quality checked. All dimensions as
well as the mounting points are indicated in the scale drawings below.
Mounting plate
Plan and elevation (all dimensions in mm)
Wallbox without RFID (3W14A1)
Plan and elevation (all dimensions in mm)
200
254
83
477,9
32
376,4
194
400
492
134

ABL eMH3 Specifications

General

Category	Battery Charger
Connector Type	Type 2
Number of Charging Points	1
Protection Rating	IP54
Charging Current	32 A
Input Voltage	400 V AC
Protection Class	I
Output Voltage	400 V AC
Output Current	32 A
Operating Temperature	-25°C to +50°C
Cooling Method	Natural Convection
Model	eMH3
Protection Features	Overcurrent protection, overvoltage protection, short circuit protection
Charging Power	up to 22 kW
