- 16 - New HC Series User Manual

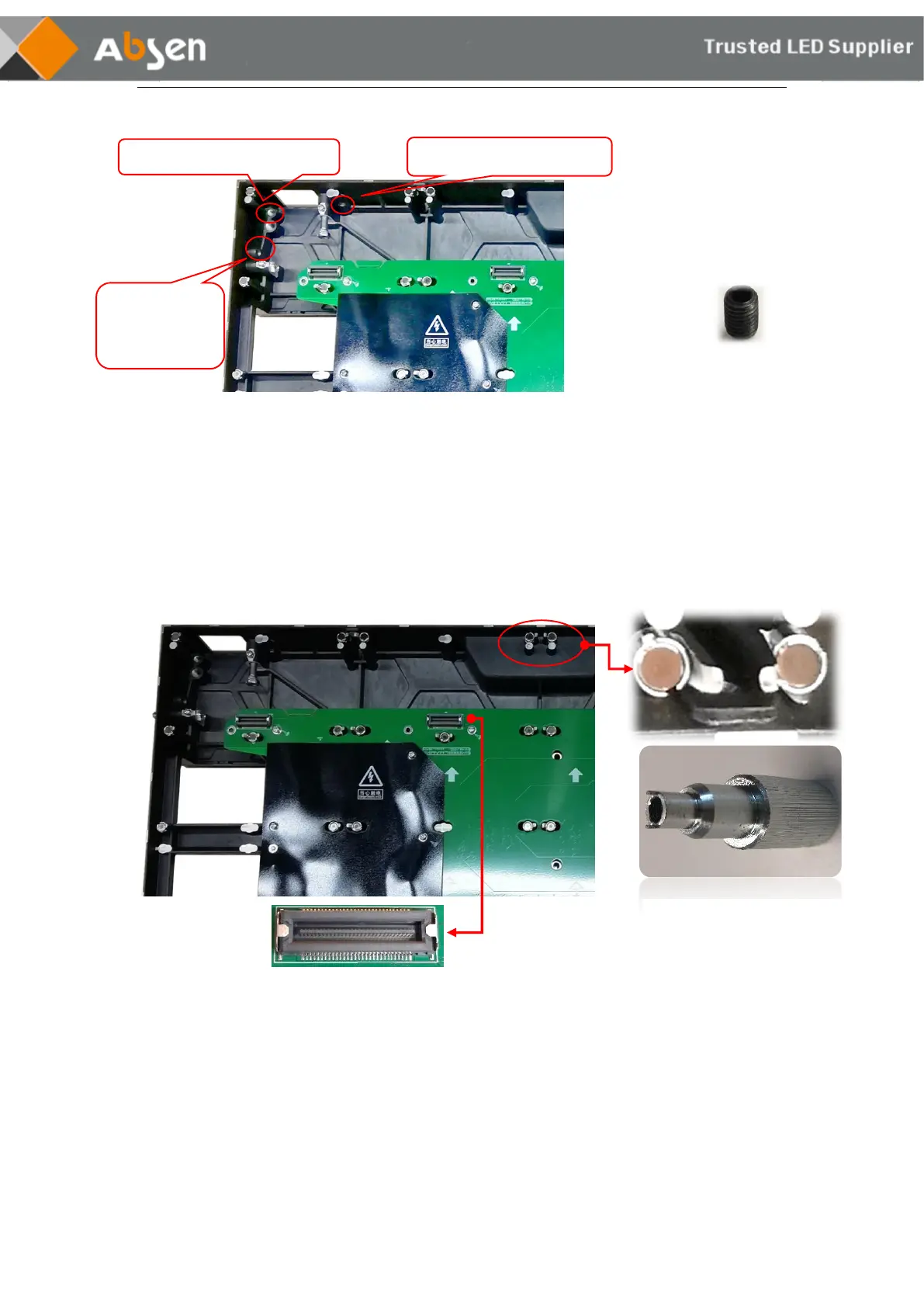

3.3.2 Three-axis and six-way adjustment(Module)
When there is unflatness between the modules and needs to be adjusted, the magnet adjustment tool can
be used to adjust the height of the magnet on the cabinet to achieve the flatness of the Z axis, and slightly
move the modules by hand to achieve fine adjustment of the X/Y axis position.
X axis direction
adjustment
hole
Y axis direction adjustment hole
Z axis direction adjustment hole
The floating connector between the module and the HUB
enables the module to be fine-tuned on the X/Y axis.
Z axis adjustment can be
realized by adjusting the
height of the magnet on the
cabinet with a special magnet
adjustment tool.
