- 6 - New HC Series User Manual
1. Product Introduction
The new HC series products are high-definition and small pitch LED display screens specially
developed for control room. The size of the cabinet is 600x337.5mm, it is designed in a ratio of
27-inch 16:9, and the main pixel pitches are P1.5,P1.2,P0.9,P0.7, which can better display the
image details.
The products are primarily used in the field of professional control rooms, meeting room, high-
end business display.
1.1 Product Key Feature
The new HC series has 5 products: HC0.7 Pro Ⅱ,HC0.9 Pro Ⅱ,HC1.2 Pro Ⅱ,HC1.2 Ⅱ,HC1.5
Ⅱ, of which HC1.2 Ⅱ,HC1.5 Ⅱ adopt the traditional 3-in-1 SMD surface patch technology
and common anode design, and HC0.7 Pro Ⅱ,HC0.9 Pro Ⅱ,HC1.2 Pro Ⅱ adopt the 4in1
integrated encapsulation and HBB energy-saving technology design.
Advantages of 4 in 1 integrated encapsulation:
1. Better air tightness, which can improve the moisture resistance of products;
2. 4in1 pixel integration technology reduces solder points by 50%, and the stability of
product is better;
3. The adhesive force of the lamp is enhanced, the anti-collision capability is improved by
about 2.5 times, and the Probability of knocking off the lamp is greatly reduced;
4. Compared with SMD, 4 in 1 can make the flatness effect of the product better.
HC0.7 Pro Ⅱ,HC0.9 Pro Ⅱ and HC1.2 Pro Ⅱ adopt HBB energy-saving technology, which
can control the voltage of the drive chip more accurately, reduce the power consumption
of the product by 20%, and enhance the heat dissipation performance and high contrast
ratio.
The cabinet is integrally formed by die casting and made of aluminum alloy, which has the
characteristics of high precision, good flatness, difficult deformation, good heat dissipation,
etc.

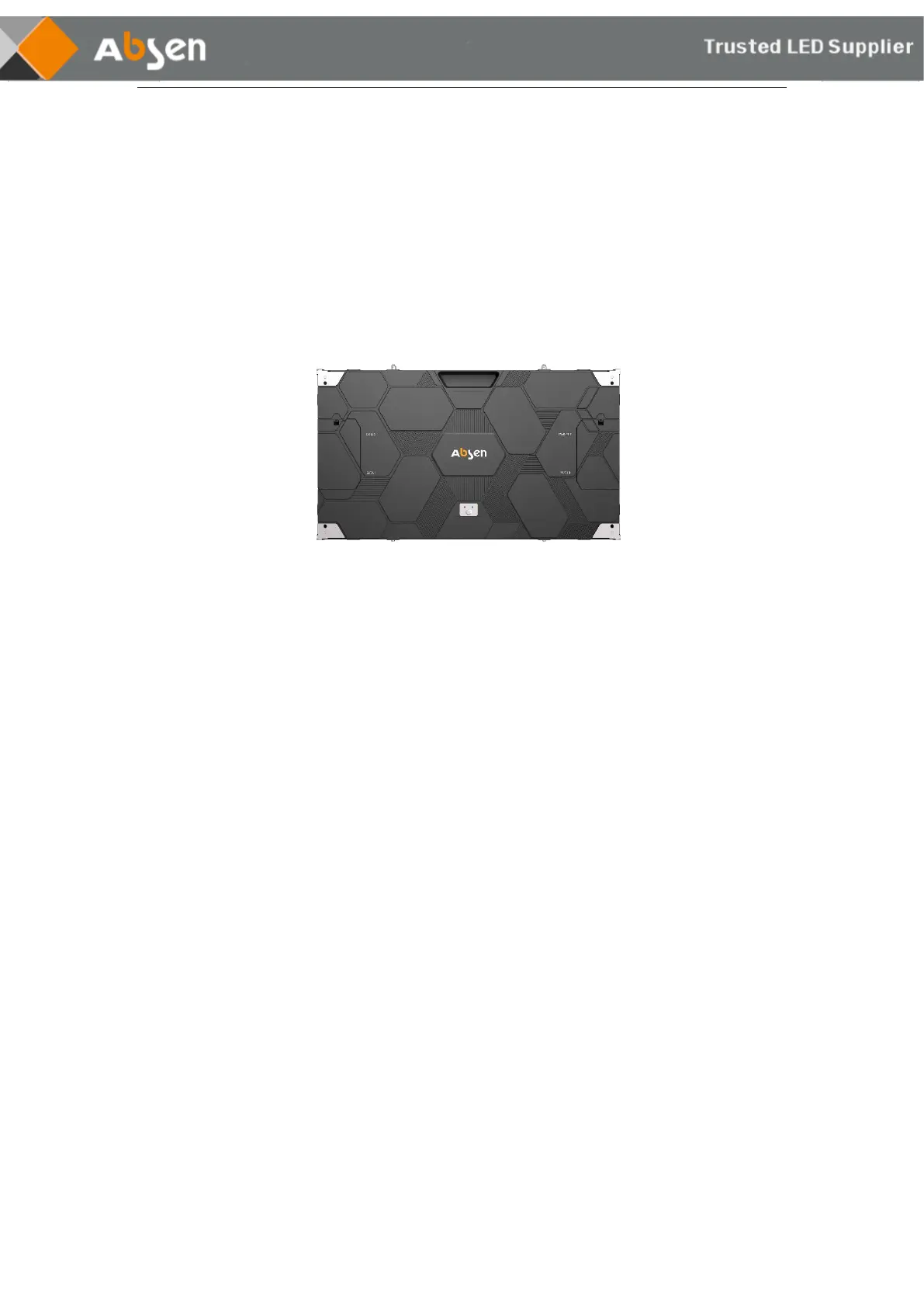

The cabinet adopts honeycomb design,, and have hidden wire cover design. The whole is
beautiful and the integration effect is excellent after splicing.
The cabinet is designed in a ratio of 27 inches 16:9, and can be seamlessly spliced into
FHD/4K/8K display screen. FHD adopts HC1.5 Ⅱ cabinet arrangement 5x5(135
