New HC Series User Manual - 19 -

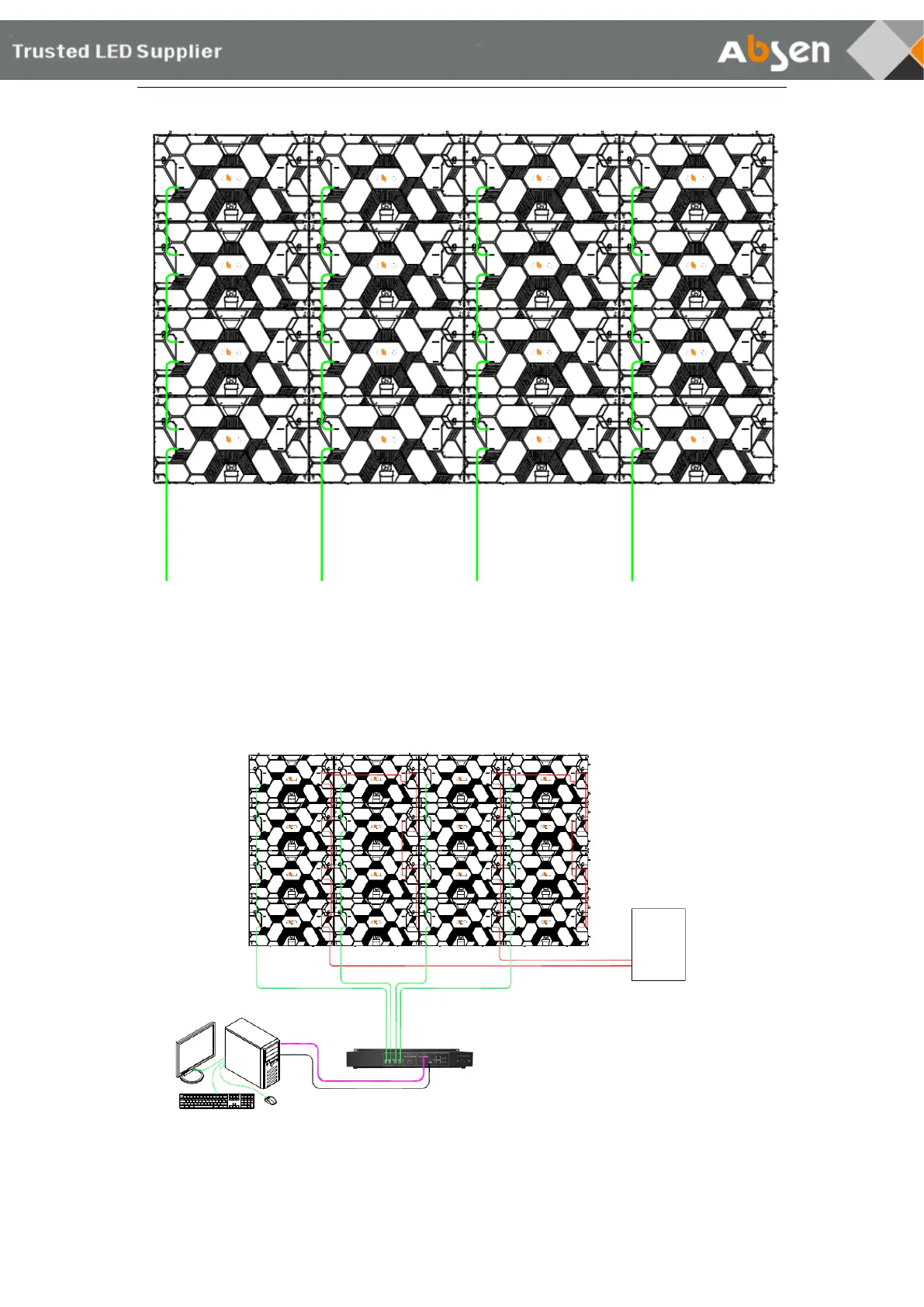

4.3 Schematic diagram of system connection
topology
This product cannot store or display video content solely on itself. To perform normal work , the
screen requires video source from the output device such as PC, laptop, media player, etc. and
Computer
Main signal cables
Main signal cable
Main signal cable
Main signal cable
Main signal cable
Main power cables
USB control cable
HDMI-DVI cable
Distribution
box
