Each cabinet contains a control card ( two for backup versions). The control card
receives signals from the controller to control each LED pixel. The control card is
composed of multiple components, including MCU, memory, interface chips, etc., and
can process data, store correction data, and also control the effect of the LED display.

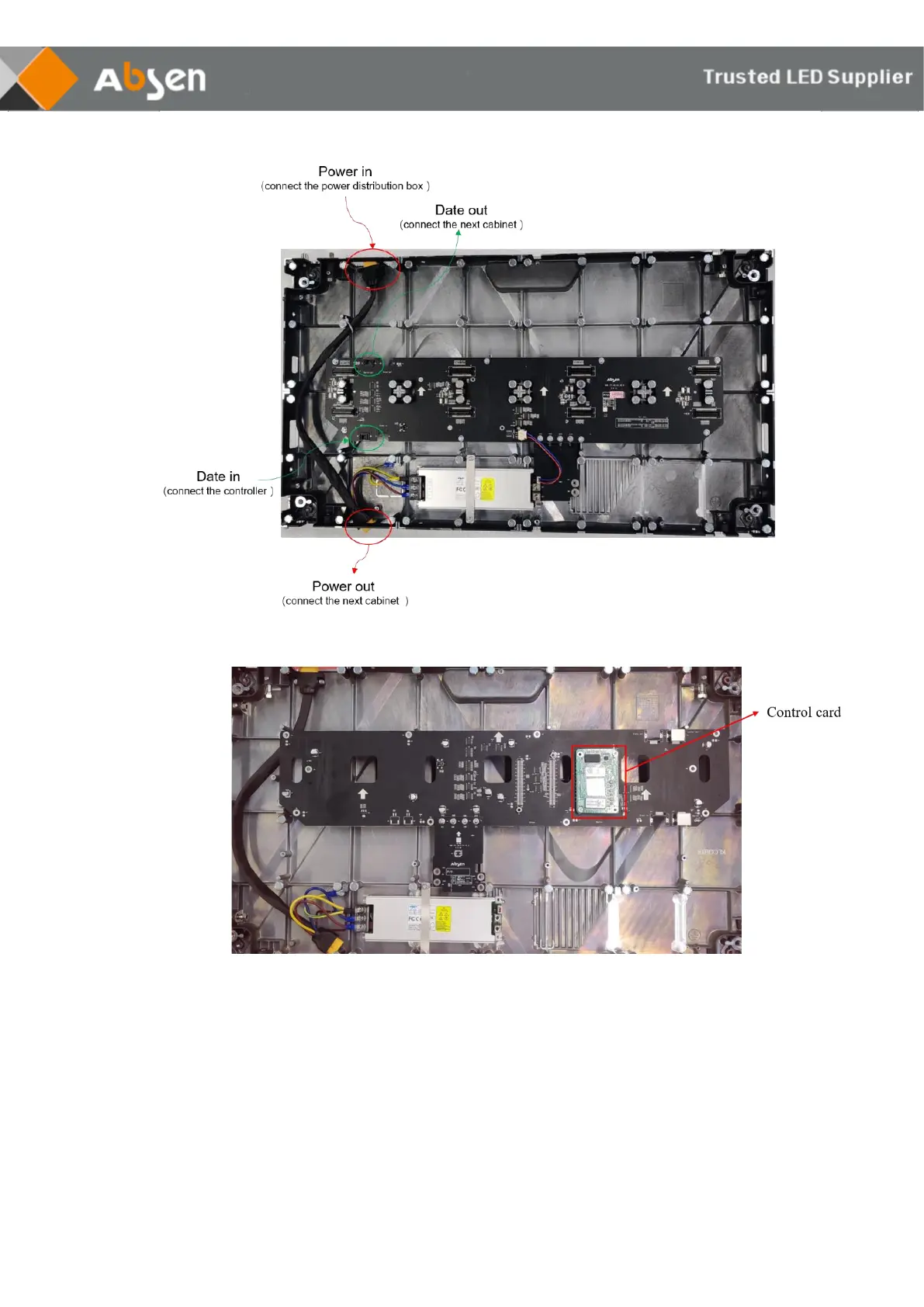

Power and signal connections inside the cabinet
