4. Camera description

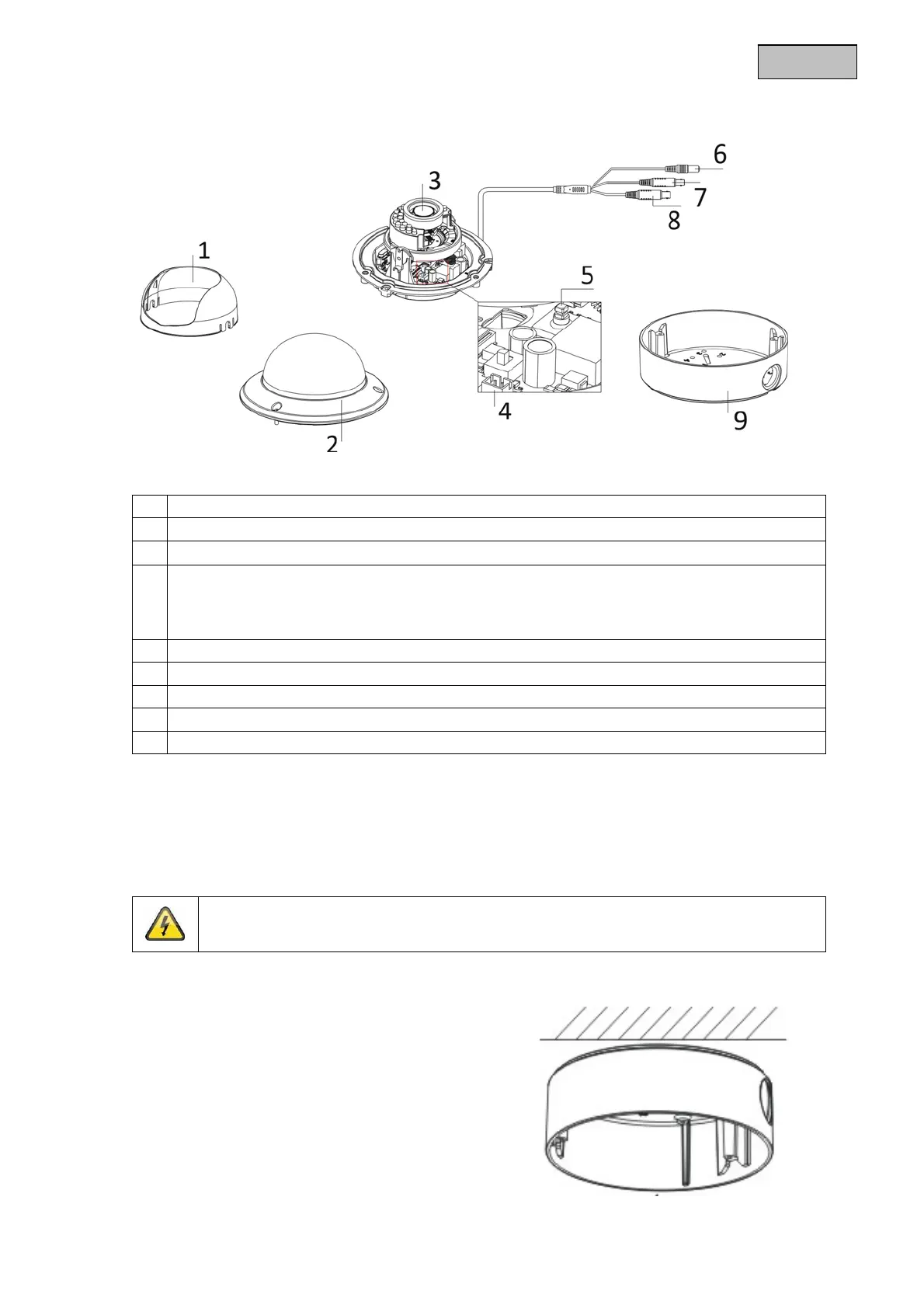

1 Dome cover
2 Camera dome
3 Camera module with lens
4 HDCC72510: Switch between DWDR on and DWDR off
Additional connection for analogue video output (2-pin adapter provided in scope of delivery,
labelled 'CVBS')
5 Joystick for controlling the on-screen display
6 Power supply connection (5.5 x 2.1 mm, 2-pin connection)
7 HD-TVI video output (BNC, labelled 'TVI')
8 Analogue video output (BNC, for service purposes, labelled 'CVBS')
9 Installation adapter for surface mounting
5. Mounting/installation
5.1. Mounting the camera
IMPORTANT!
The camera must be disconnected from the power supply during installation.
Use the accompanying drilling template for drilling
the mounting holes for the installation adapter. An
opening is provided on the installation adapter for
cabling at the side. A cable gland must be used
(M25x1.5) for cabling at the side. Use screw
anchors and screws that are appropriate to the
surface to fix the installation adapter in place.
Now remove the camera dome from the camera
