Abus PPIC90000 Instruction Manual

10
English

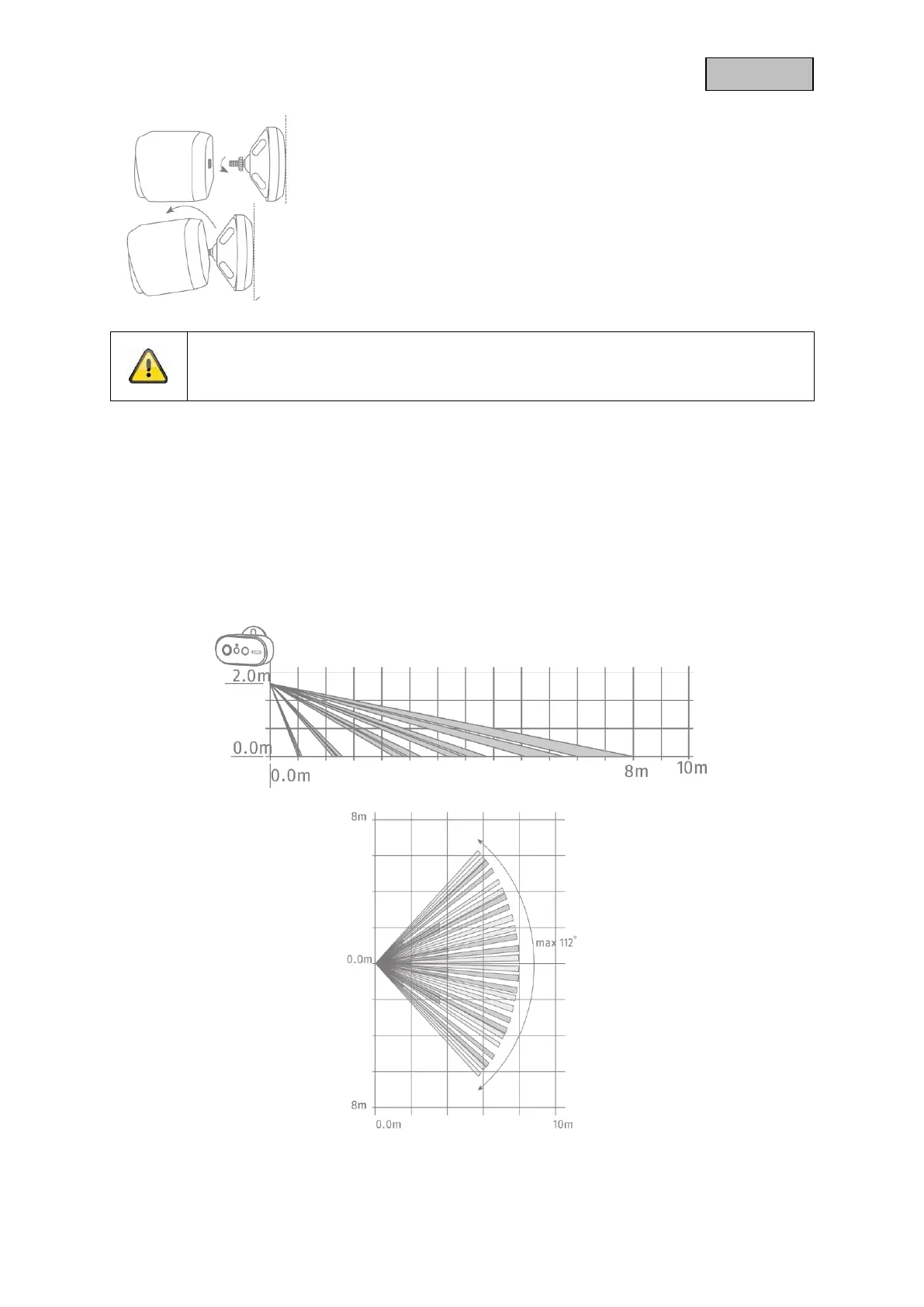

Now screw the fixing ring and the camera onto the bracket. Now
you can align the camera using your smartphone. Once the desired
viewing angle is reached, screw the cover on tightly.
Watch your step!
Place the camera under a canopy or similar to avoid direct sunlight. The camera should
not be placed directly at a light source or the sun.
3.3. Alignment and detection range of the camera
The passive infrared sensor (PIR) of the camera has a maximum detection range of 8 meters, this can
be achieved at an installation height of 2 meters and an tilt angle of 12.5°. The PIR viewing angle is
112°. The PIR reacts to heat movement and triggers an image upon detection.
Optimum alignment:
The higher the camera is installed, the greater the downward tilt angle must be. This affects the range
of the PIR sensor.

Abus PPIC90000 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	-
Mounting type	Wall
Product color	Black, White
Housing material	Plastic
International Protection (IP) code	IP65
Camera pan control	No
Minimum illumination	1 lx
Field of view (FOV) angle	115 °
Number of sensors	1
Fixed focal length	2.9 mm
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Number of users	3 user(s)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Power source type	Battery, DC
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	51 mm
Width	103 mm
Height	54 mm
