Abus PPIC90000 Instruction Manual

20
English
confirmation received", with "No, resend" you can retransmit the information. The camera now connects
to the network. This can take up to 120 seconds. You can now access the live image of the camera.
4.2.2. Alternative Installation

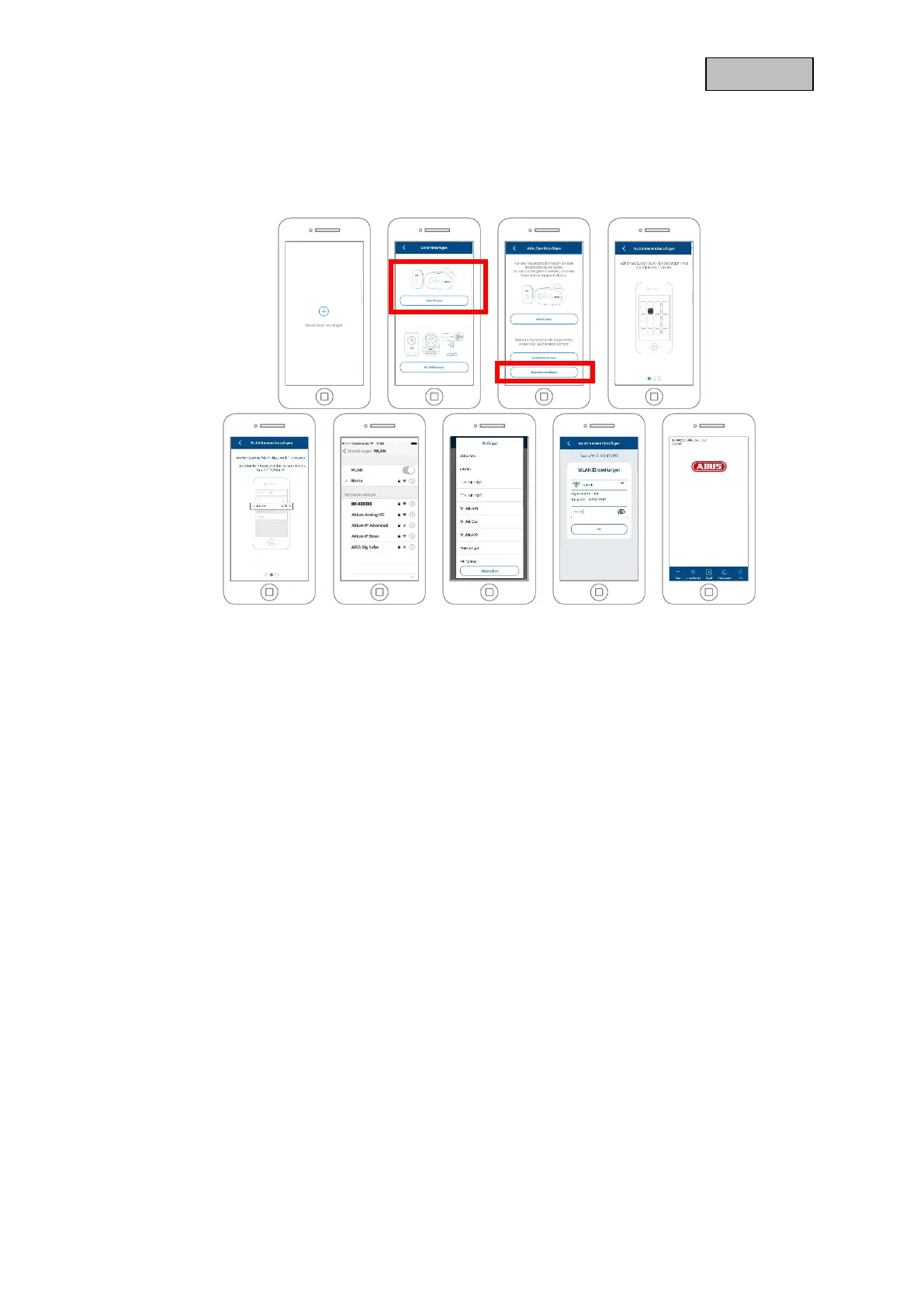

Open the app and click on the "+" to add a base station. Click "Alternative Installation" to add the base
station.
Go to the network settings of your device as described in the app and connect to the WLAN access
point of the base station. This can be recognized by the name "HD-XXXXXX". The password for the Wi-
Fi access point of the base station is: "12345678".
When the connection is established, click "OK" in the app. Select the WLAN of your home network from
the list of Wi-Fi networks and enter the password of the Wi-Fi of your home network. Press "OK" to
establish the connection.
The base station will now connect to the network. This can take up to 120 seconds. You can now access
the live image from the camera.
The base station takes about 120 seconds to connect to the Wi-Fi network. If the base station cannot
be reached after setup, reset the base station using the reset button and perform the steps again.

Abus PPIC90000 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	-
Mounting type	Wall
Product color	Black, White
Housing material	Plastic
International Protection (IP) code	IP65
Camera pan control	No
Minimum illumination	1 lx
Field of view (FOV) angle	115 °
Number of sensors	1
Fixed focal length	2.9 mm
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Number of users	3 user(s)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Power source type	Battery, DC
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	51 mm
Width	103 mm
Height	54 mm
