BUTTONS
Press Mode
Upper right decimal point blinks
Press Mode to enter password
Display reads "00"
DISPLAY
Use " and ! to scroll to the
password value
13.0 PROGRAMMING THE SCF DRIVE
The drive may be programmed by one of three methods: using the three buttons and 3-digit LED
display on the front of the drive, programming the Electronic Programming Module (EPM) using the
optional EPM Programmer, and through a serial link using serial communications. This section

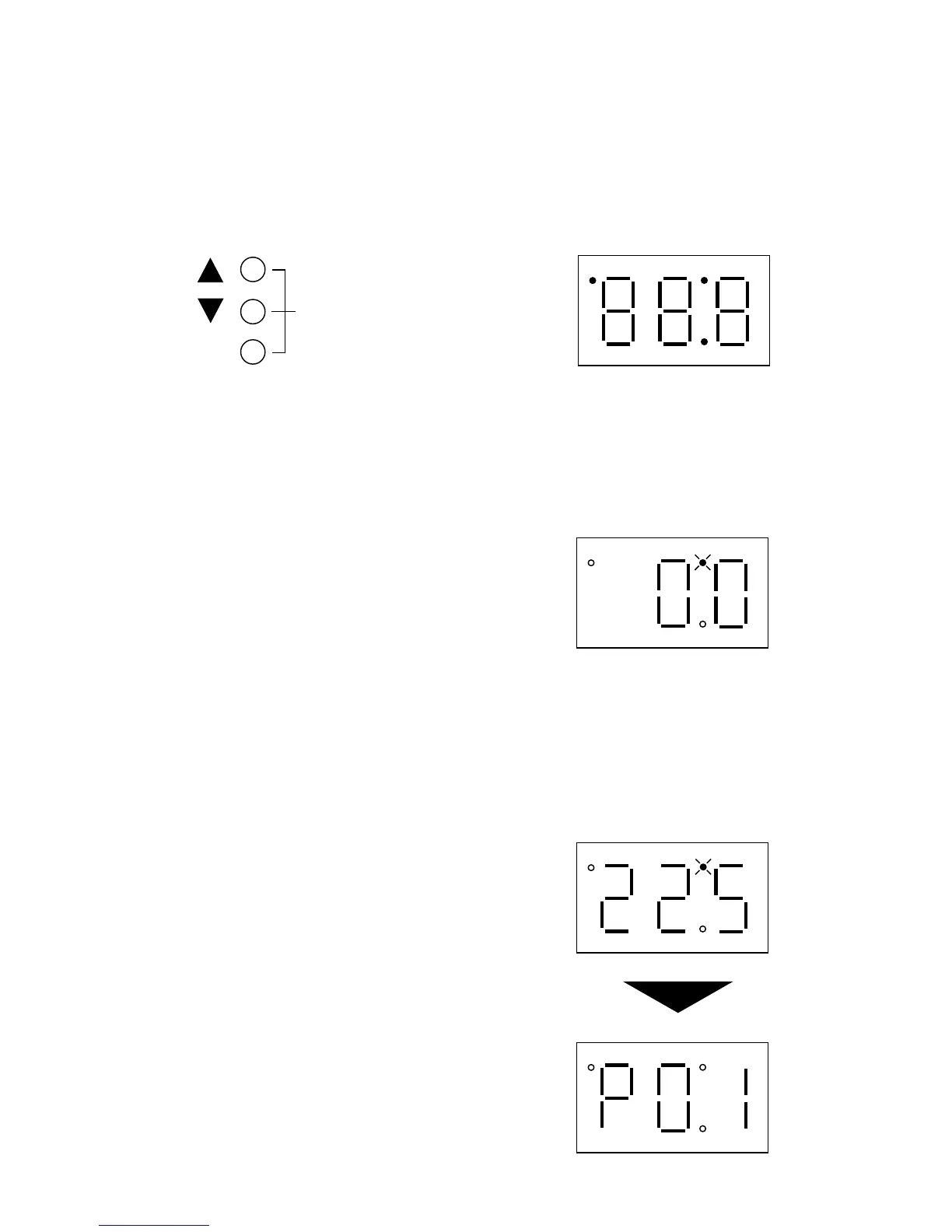

describes programming the drive using the buttons and display, which are shown below:
To enter the PROGRAM mode to access the parameters, press the Mode button. This will activate
the PASSWORD prompt (if the password has not been disabled). The display will read “00” and the
upper right-hand decimal point will be blinking, as shown below:
Use the " and ! buttons to scroll to the password value (the factory default password is “225”) and
press the Mode button. Once the correct password value is entered, the display will read "P01",
which indicates that the PROGRAM mode has been accessed at the beginning of the parameter menu
(P01 is the first parameter). This is shown below:
Mode
Parameter menu is accessed at the
first parameter
