AC Tech SCF SERIES User Manual

53

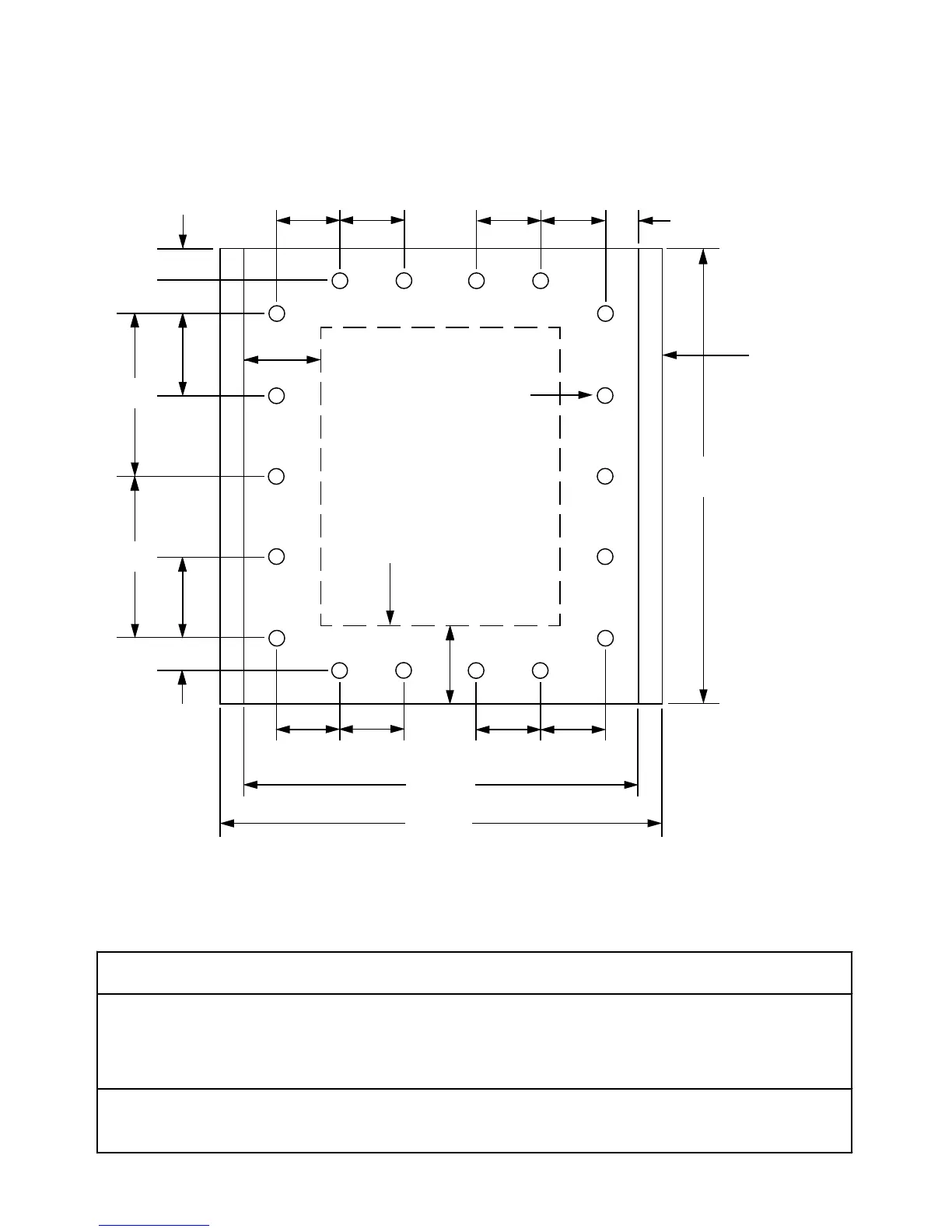

THROUGH-HOLE DRAWING FOR 15 HP AND 20 HP MODELS
This drawing applies to the following models only: SF2150F, SF4150F, SF5150F, SF4200F, and
SF5200F.
HP MODEL H E F L M
15 SF2150F 18.09 6.03 3.02 0.50 2.52
SF4150F 15.59 6.63 3.31 0.22 0.95
SF5150F 15.59 6.63 3.31 0.22 0.95
20 SF4200F 18.09 6.03 3.02 0.50 2.52
SF5200F 18.09 6.03 3.02 0.50 2.52
THROUGH-HOLE CUTOUT DIMENSIONS FOR 15 HP AND 20 HP MODELS
HEATSINK
0.24
L
M
PANEL
CUTOUT
0.63
M
11.14
H
E
MOUNTING
HOLES (#8)
0.63
E
F
F
1.04
1.04
10.14
2.24 2.24
1.04
1.04
2.24
2.24
TOP
