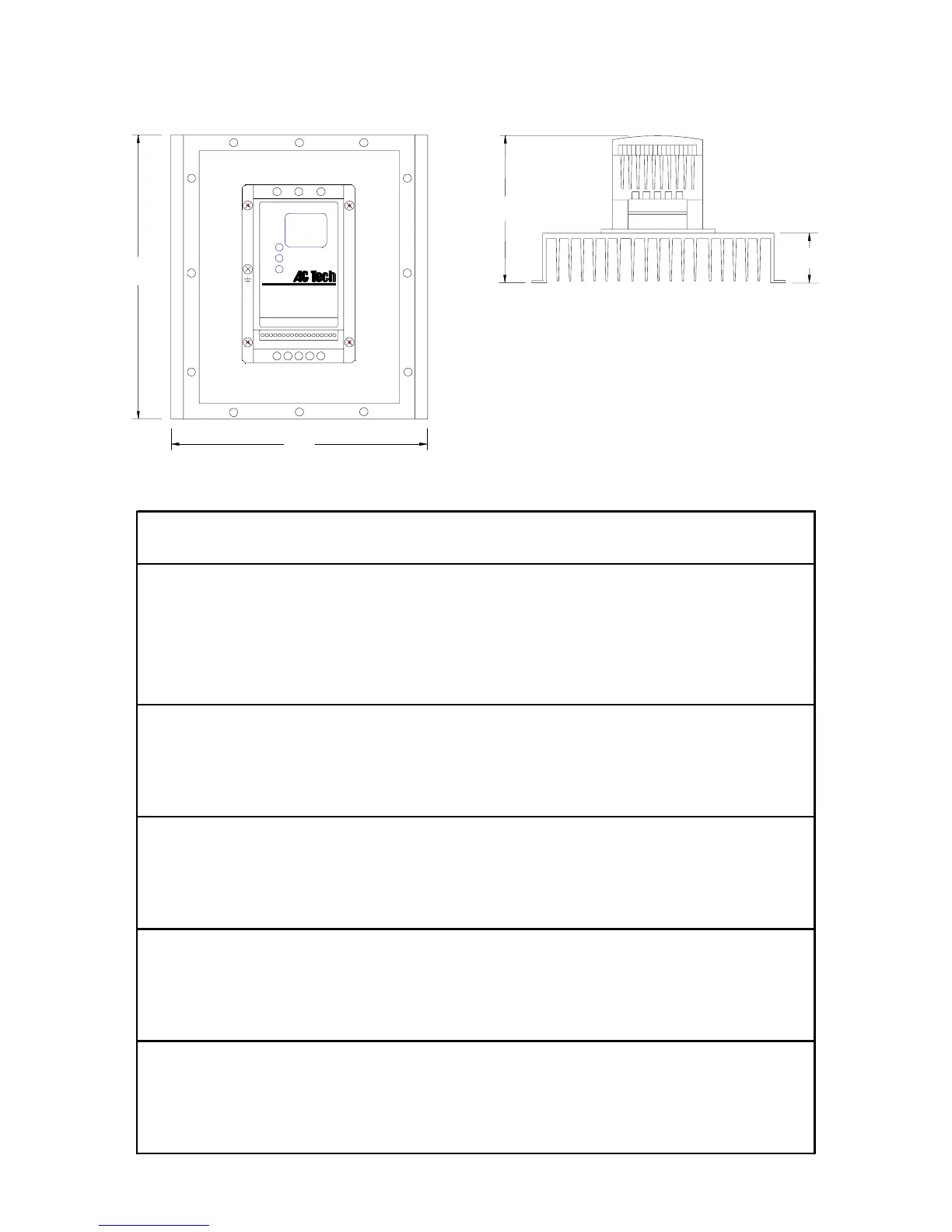

2.1 SCF THROUGH-HOLE MOUNT DIMENSIONS
INPUT
HP kW VOLTAGE MODEL H W D P
1 0.75 120 / 208 / 240 SF110SF 7.72 6.80 4.75 1.20
208 / 240 SF210YF 7.72 6.80 4.37 1.20
208 / 240 SF210F 7.72 6.80 4.37 1.20
400 / 480 SF410F 7.72 6.80 4.37 1.20
480 / 590 SF510F 7.72 6.80 4.37 1.20
1.5 1.1 120 / 208 / 240 SF115SF 7.72 6.80 4.75 1.20
208 / 240 SF215YF 7.72 6.80 4.75 1.20
208 / 240 SF215F 7.72 6.80 4.37 1.20
400 / 480 SF415F 7.72 6.80 4.37 1.20
2 1.5 208 / 240 SF220YF 7.72 6.80 4.75 1.20
208 / 240 SF220F 7.72 6.80 4.37 1.20
400 / 480 SF420F 7.72 6.80 4.37 1.20
480 / 590 SF520F 7.72 6.80 4.37 1.20
3 2.2 208 / 240 SF230YF 7.72 8.54 5.30 1.75
208 / 240 SF230F 7.72 8.54 4.92 1.75
400 / 480 SF430F 7.72 8.54 4.92 1.75
480 / 590 SF530F 7.72 8.54 5.30 1.75
5 3.7 208 / 240 SF250YF 9.59 11.14 7.65 3.60
208 / 240 SF250F 7.72 8.54 6.30 2.75
400 / 480 SF450F 7.72 8.54 6.30 2.75
480 / 590 SF550F 7.72 8.54 6.30 2.75
D
H
W
P
