25 SM01P
Use the and buttons to scroll to the desired parameter number. In the example below,
Parameter 19 is being displayed, which is the ACCELERATION TIME of the drive:

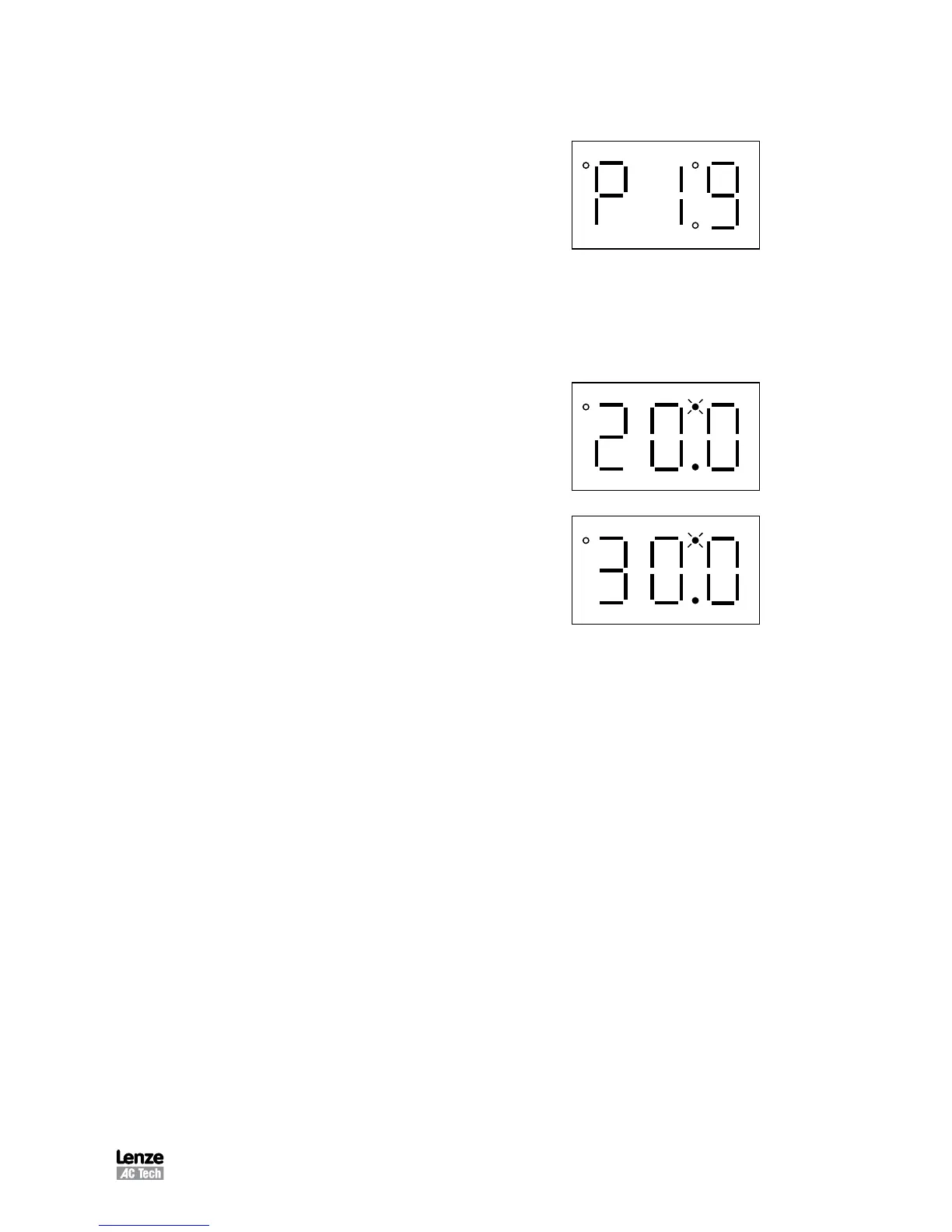

Use and to scroll to the desired
parameter number (the example is
Parameter 19 - ACCELERATION
TIME)
Once the desired parameter number is found, press the Mode button to display the present
parameter setting. The upper right-hand decimal point will begin blinking, indicating that
the present parameter setting is being displayed, and that it can be changed by using
the and buttons.
Press Mode to display present
parameter setting (example set-
ting is 20.0)
Upper right decimal point blinks
Use and to change setting
(example setting changed to
30.0)
Press Mode to store new setting
Pressing Mode will store the new setting and also exit the PROGRAM mode. To change
another parameter, press the Mode key again to re-enter the PROGRAM mode (the
parameter menu will be accessed at the parameter that was last viewed or changed before
exiting). If the Mode key is pressed within two minutes of exiting the PROGRAM mode,
the password is not required access the parameters. After two minutes, the password
must be entered in order to access the parameters again.
13.1 Setting Values in Tenths of Units Above 100
Parameter settings and the keypad speed command can always be adjusted in tenths of
unit increments from 0.0 to 99.9. Above 100 however, values can be set in whole units or
tenths of units, depending on the setting of Parameter 16 - UNITS EDITING.
If Parameter 16 - UNITS EDITING is set to WHOLE UNITS (02), parameter values and
the keypad speed command can only be adjusted by whole unit increments above 100.
For example, Parameter 19 - ACCELERATION TIME could not be set to 243.7 seconds.
It could only be set to 243 or 244 seconds. Likewise, the keypad speed command (set
using the and buttons) could not be set to 113.4 Hz. It could only be set to 113 or
114 Hz.
