4.4 Interactive mode
Figure 7 shows the process for an LSR116 in Interactive mode. The host can send ‘Good Read’ and
‘Bad Read’ commands to the LSR116 at any time.

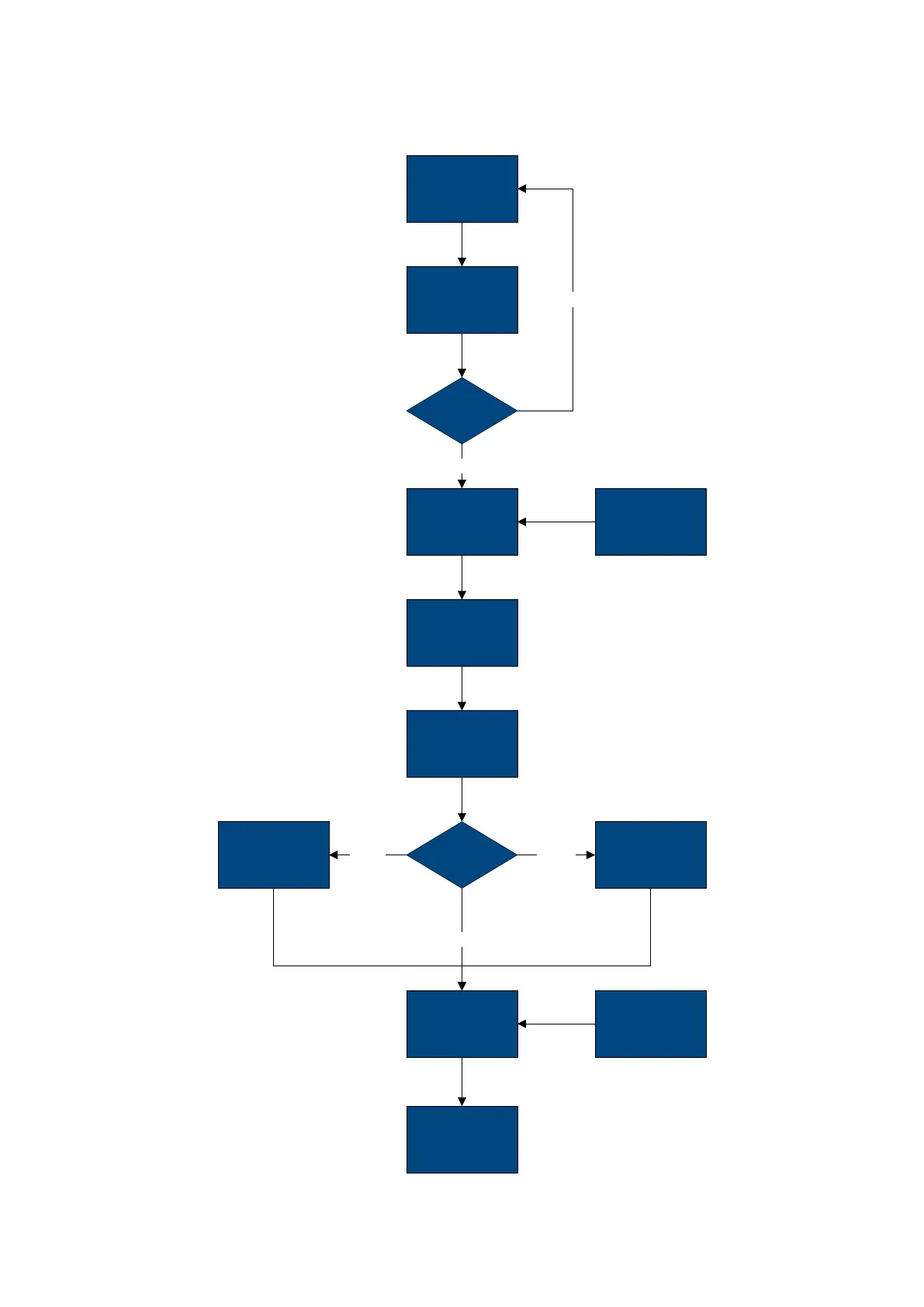

Figure 7. Interactive mode process flow
Media Detected,
Message Sent
Requesting
Trigger
Send Trigger?
Imager and
Illumination
Activated
Trigger
Barcode Read
Data Sent to Host
Accept or
Reject?
Lights ‘Bad Read’
(as Settings
Instruct)
Lights ‘Good
Read’ (as Settings
Instruct)
Imager and
Illumination
Deactivated
Reject Accept
Reader Idle
Untrigger
Force Trigger
Reader Idle
Force Untrigger
Ignore Command
