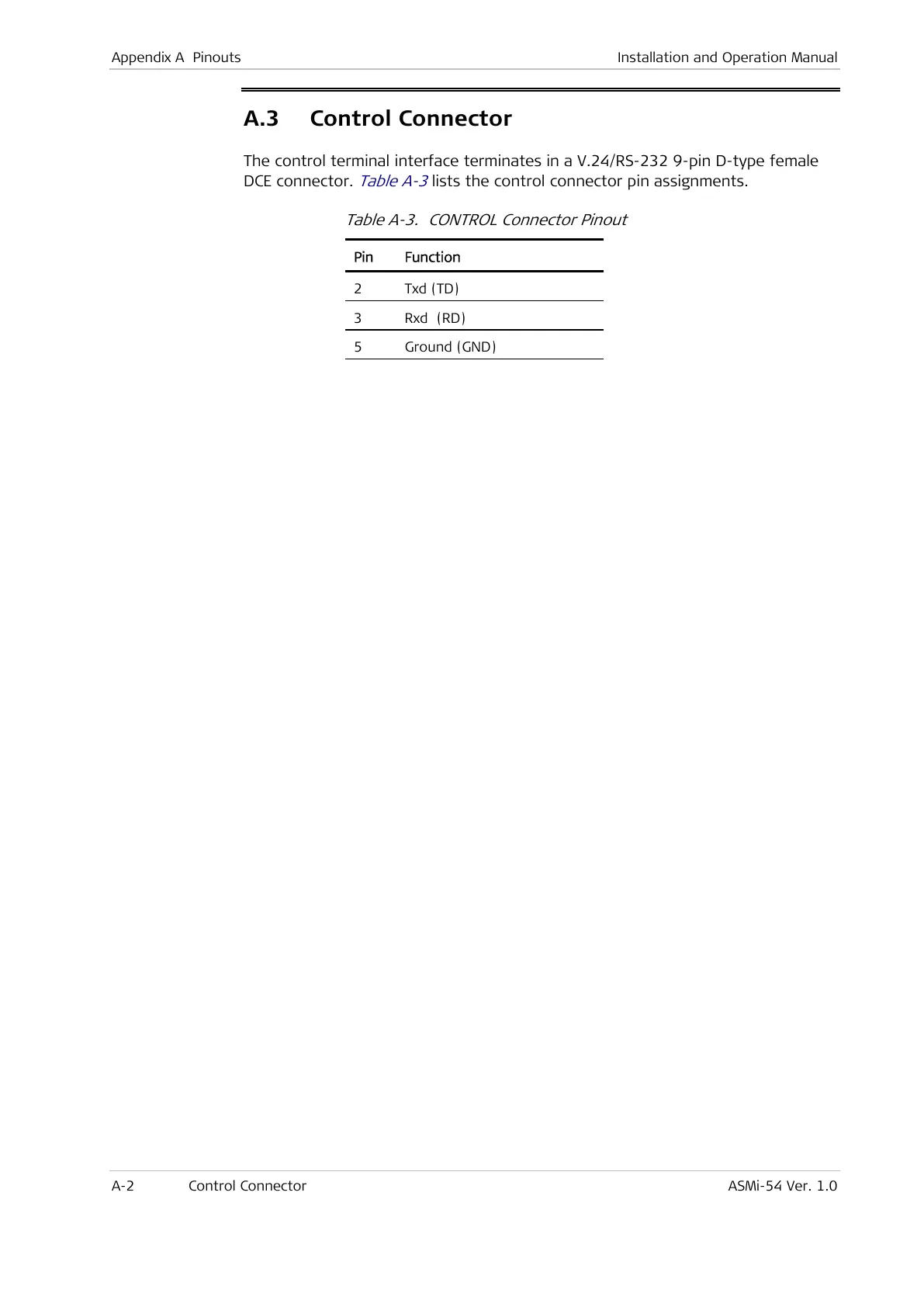

A.3 Control Connector
The control terminal interface terminates in a V.24/RS-232 9-pin D-type female
DCE connector.
Table A-3 lists the control connector pin assignments.
Table A-3. CONTROL Connector Pinout
Pin Function
2 Txd (TD)
3 Rxd (RD)
5 Ground (GND)
