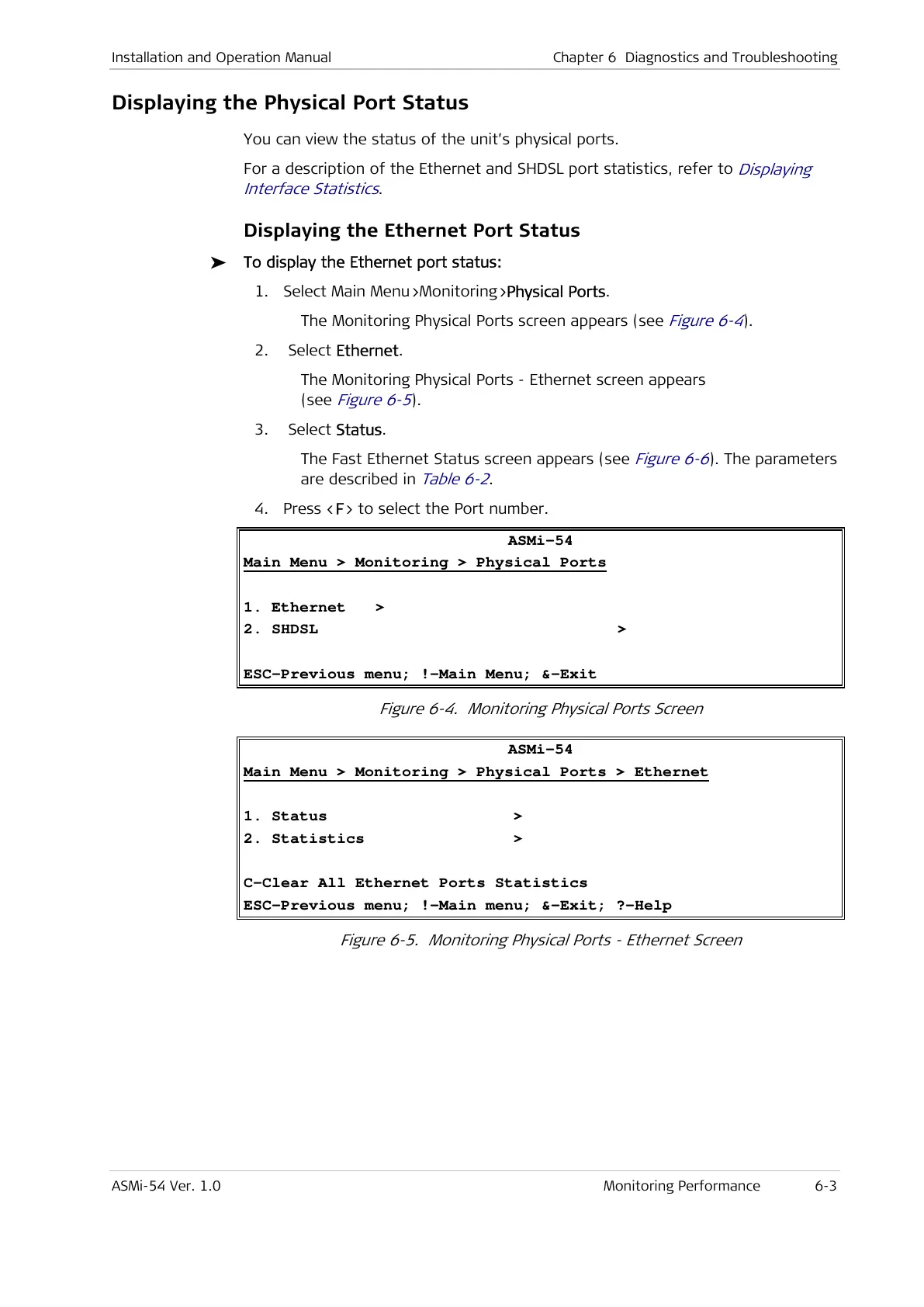

Installation and Operation Manual Chapter 6 Diagnostics and Troubleshooting
ASMi-54 Ver. 1.0 Monitoring Performance 6-3
Displaying the Physical Port Status
You can view the status of the unit’s physical ports.
For a description of the Ethernet and SHDSL port statistics, refer to
Displaying
Interface Statistics
.
Displaying the Ethernet Port Status
To display the Ethernet port status:
1. Select Main Menu>Monitoring>Physical Ports.
The Monitoring Physical Ports screen appears (see
Figure 6-4
).
2. Select Ethernet.
The Monitoring Physical Ports - Ethernet screen appears
(see
Figure 6-5
).
3. Select Status.
The Fast Ethernet Status screen appears (see
Figure 6-6
). The parameters
are described in
Table 6-2
.
4. Press <F> to select the Port number.
ASMi-54
Main Menu > Monitoring > Physical Ports
1. Ethernet >
2. SHDSL >
ESC-Previous menu; !-Main Menu; &-Exit
Figure 6-4. Monitoring Physical Ports Screen
ASMi-54
Main Menu > Monitoring > Physical Ports > Ethernet
1. Status >
2. Statistics >
C-Clear All Ethernet Ports Statistics
ESC-Previous menu; !-Main menu; &-Exit; ?-Help
Figure 6-5. Monitoring Physical Ports - Ethernet Screen
