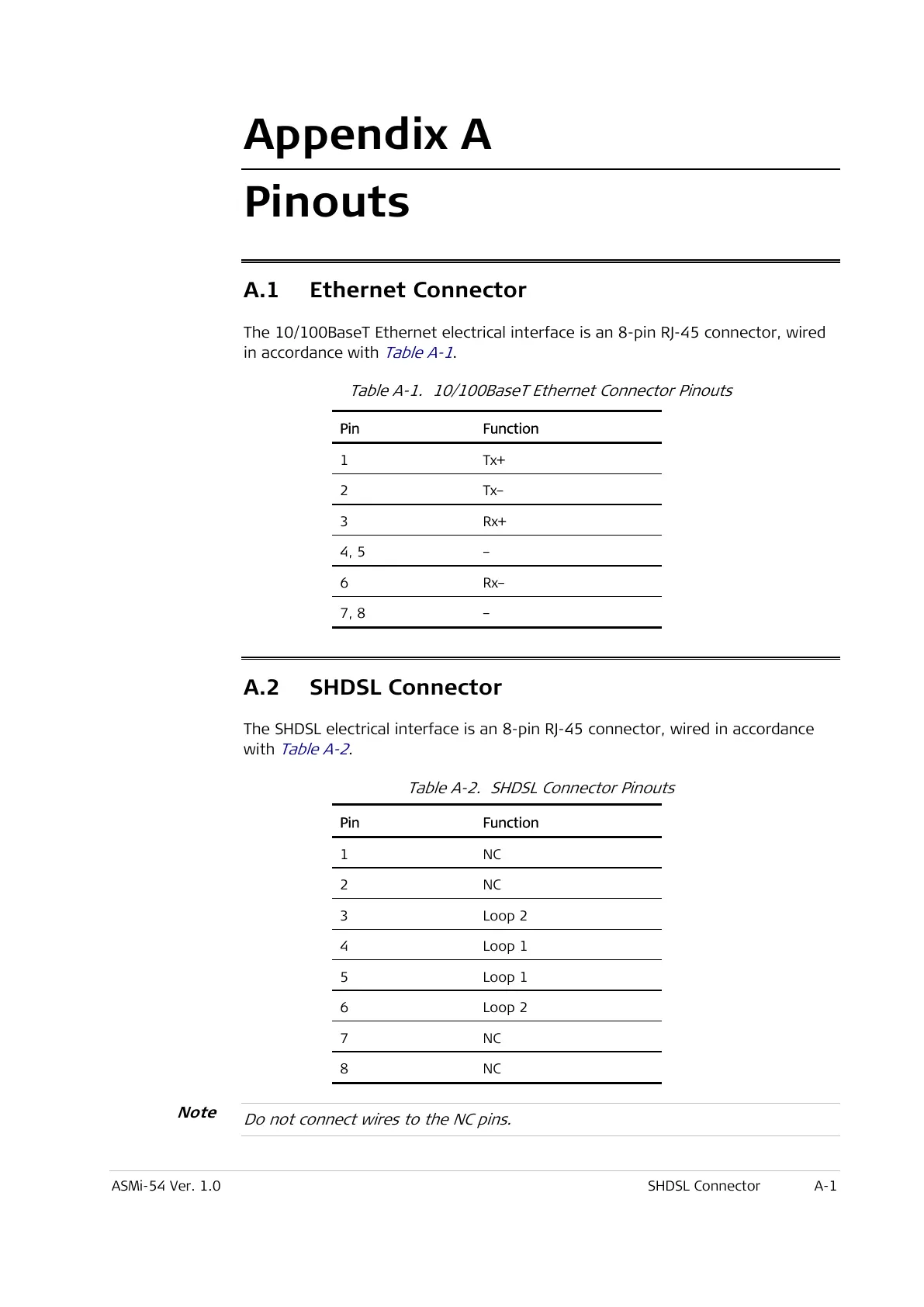

Appendix A
Pinouts
A.1 Ethernet Connector
The 10/100BaseT Ethernet electrical interface is an 8-pin RJ-45 connector, wired
in accordance with
Table A-1 .
Table A-1. 10/100BaseT Ethernet Connector Pinouts
Pin Function
1 Tx+
2 Tx–
3 Rx+
4, 5 –
6 Rx–
7, 8 –
A.2 SHDSL Connector
The SHDSL electrical interface is an 8-pin RJ-45 connector, wired in accordance
with
Table A-2 .
Table A-2. SHDSL Connector Pinouts
Pin Function
1 NC
2 NC
3 Loop 2
4 Loop 1
5 Loop 1
6 Loop 2
7 NC
8 NC
Do not connect wires to the NC pins.
Note
