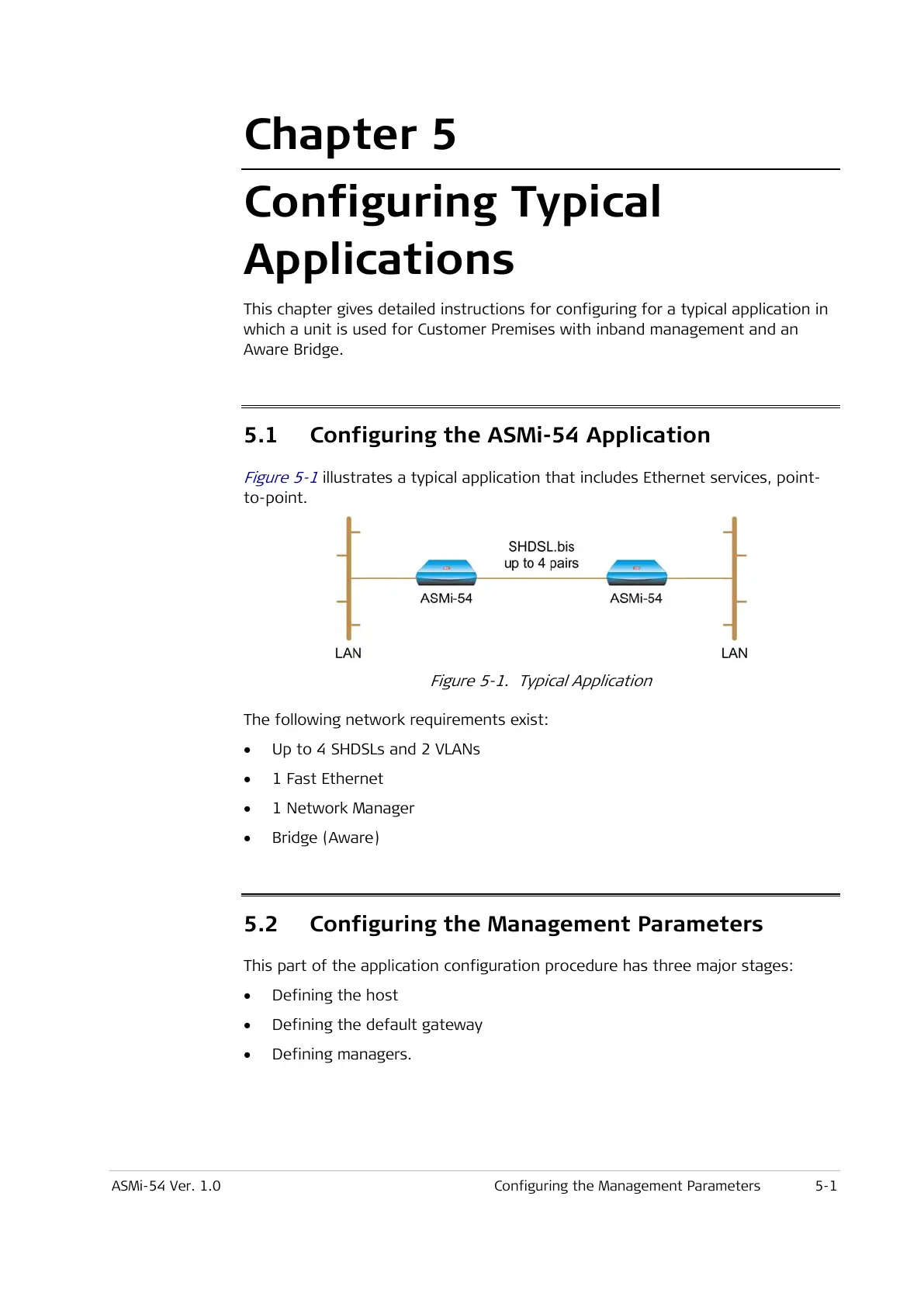

ASMi-54 Ver. 1.0 Configuring the Management Parameters 5-1
Chapter 5
Configuring Typical
Applications
This chapter gives detailed instructions for configuring for a typical application in
which a unit is used for Customer Premises with inband management and an
Aware Bridge.
5.1 Configuring the ASMi-54 Application
Figure 5-1
illustrates a typical application that includes Ethernet services, point-
to-point.
Figure 5-1. Typical Application
The following network requirements exist:
• Up to 4 SHDSLs and 2 VLANs
• 1 Fast Ethernet
• 1 Network Manager
• Bridge (Aware)
5.2 Configuring the Management Parameters
This part of the application configuration procedure has three major stages:
• Defining the host
• Defining the default gateway
• Defining managers.
