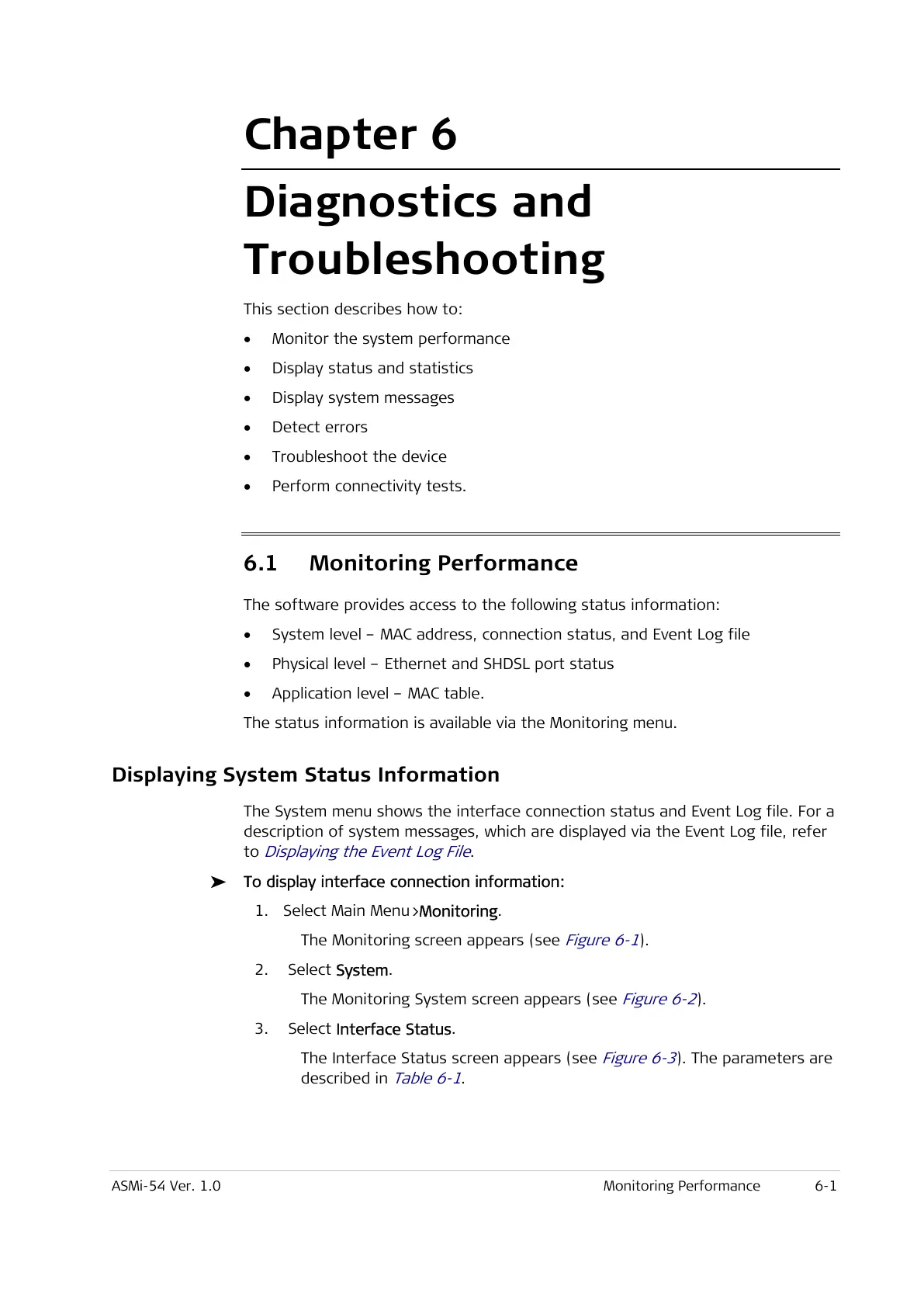

ASMi-54 Ver. 1.0 Monitoring Performance 6-1
Chapter 6
Diagnostics and
Troubleshooting
This section describes how to:
• Monitor the system performance
• Display status and statistics
• Display system messages
• Detect errors
• Troubleshoot the device
• Perform connectivity tests.
6.1 Monitoring Performance
The software provides access to the following status information:
• System level – MAC address, connection status, and Event Log file
• Physical level – Ethernet and SHDSL port status
• Application level – MAC table.
The status information is available via the Monitoring menu.
Displaying System Status Information
The System menu shows the interface connection status and Event Log file. For a
description of system messages, which are displayed via the Event Log file, refer
to
Displaying the Event Log File
.
To display interface connection information:
1. Select Main Menu>Monitoring.
The Monitoring screen appears (see
Figure 6-1
).
2. Select System.
The Monitoring System screen appears (see
Figure 6-2
).
3. Select Interface Status.
The Interface Status screen appears (see
Figure 6-3
). The parameters are
described in
Table 6-1
.
