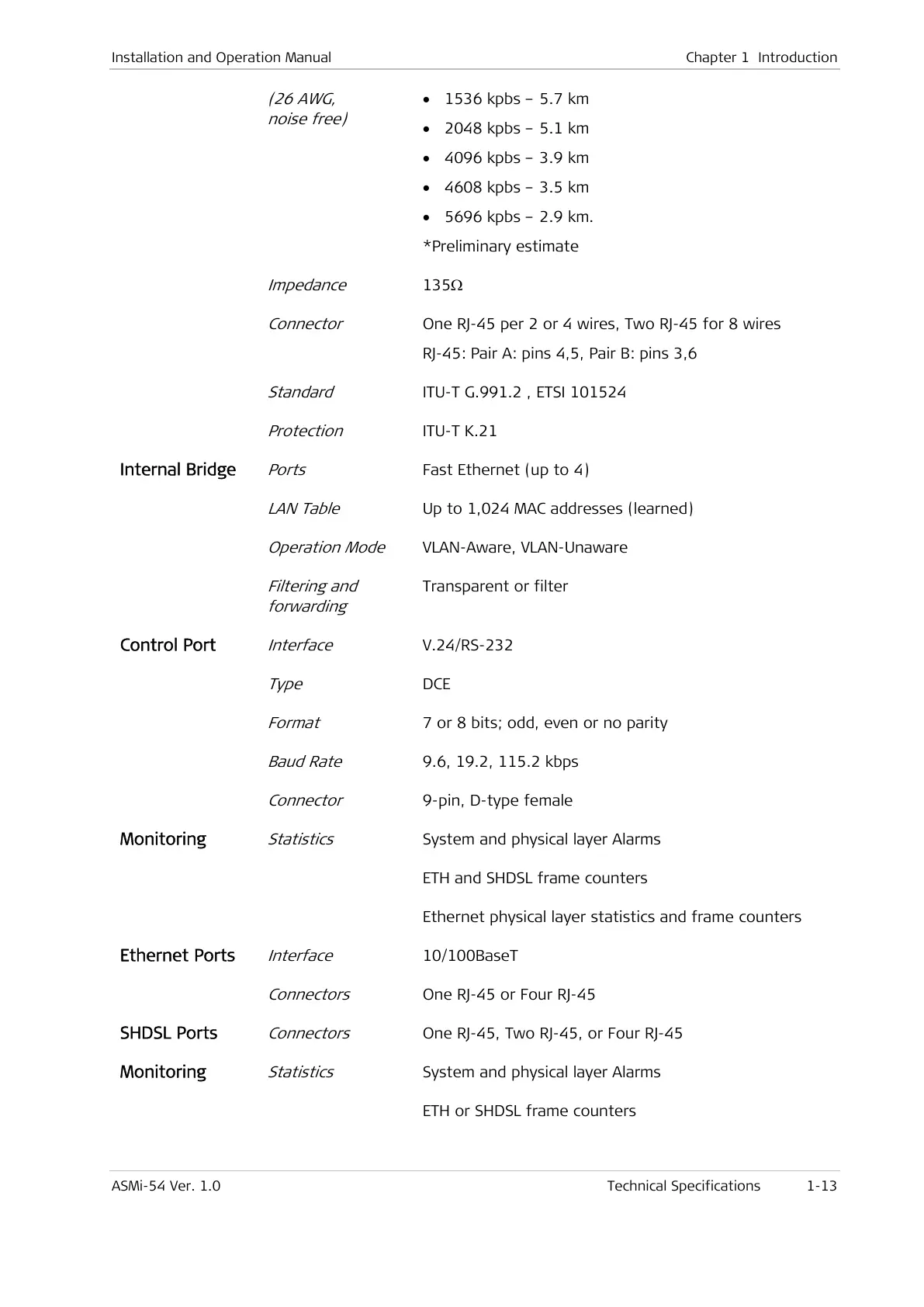

ASMi-54 Ver. 1.0 Technical Specifications 1-13
(26 AWG,
noise free)
• 1536 kpbs – 5.7 km
• 2048 kpbs – 5.1 km
• 4096 kpbs – 3.9 km
• 4608 kpbs – 3.5 km
• 5696 kpbs – 2.9 km.
*Preliminary estimate
Impedance 135Ω
Connector One RJ-45 per 2 or 4 wires, Two RJ-45 for 8 wires
RJ-45: Pair A: pins 4,5, Pair B: pins 3,6
Standard ITU-T G.991.2 , ETSI 101524
Protection ITU-T K.21
Internal Bridge
Ports Fast Ethernet (up to 4)
LAN Table Up to 1,024 MAC addresses (learned)
Operation Mode VLAN-Aware, VLAN-Unaware
Filtering and
forwarding
Transparent or filter
Control Port
Interface V.24/RS-232
Type DCE
Format 7 or 8 bits; odd, even or no parity
Baud Rate 9.6, 19.2, 115.2 kbps
Connector 9-pin, D-type female
Monitoring
Statistics System and physical layer Alarms
ETH and SHDSL frame counters
Ethernet physical layer statistics and frame counters
Ethernet Ports
Interface 10/100BaseT
Connectors One RJ-45 or Four RJ-45
SHDSL Ports
Connectors One RJ-45, Two RJ-45, or Four RJ-45
Monitoring
Statistics System and physical layer Alarms
ETH or SHDSL frame counters
