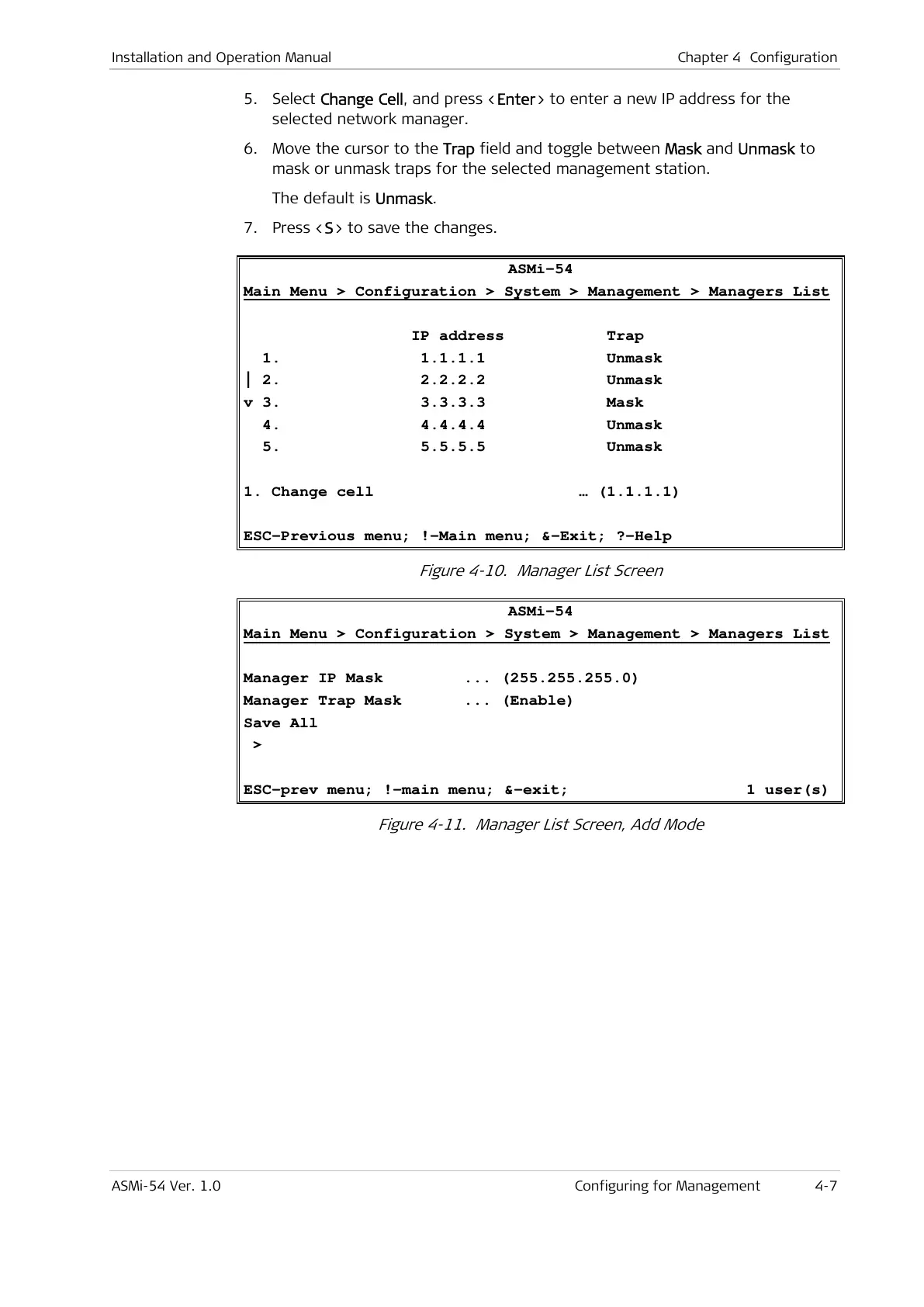

Installation and Operation Manual Chapter 4 Configuration
ASMi-54 Ver. 1.0 Configuring for Management 4-7
5. Select Change Cell, and press <Enter> to enter a new IP address for the
selected network manager.
6. Move the cursor to the Trap field and toggle between Mask and Unmask to
mask or unmask traps for the selected management station.
The default is Unmask.
7. Press <S> to save the changes.
ASMi-54
Main Menu > Configuration > System > Management > Managers List
IP address Trap
1. 1.1.1.1 Unmask
| 2. 2.2.2.2 Unmask
v 3. 3.3.3.3 Mask
4. 4.4.4.4 Unmask
5. 5.5.5.5 Unmask
1. Change cell … (1.1.1.1)
ESC-Previous menu; !-Main menu; &-Exit; ?-Help
Figure 4-10. Manager List Screen
ASMi-54
Main Menu > Configuration > System > Management > Managers List
Manager IP Mask ... (255.255.255.0)
Manager Trap Mask ... (Enable)
Save All
>
ESC-prev menu; !-main menu; &-exit; 1 user(s)
Figure 4-11. Manager List Screen, Add Mode
